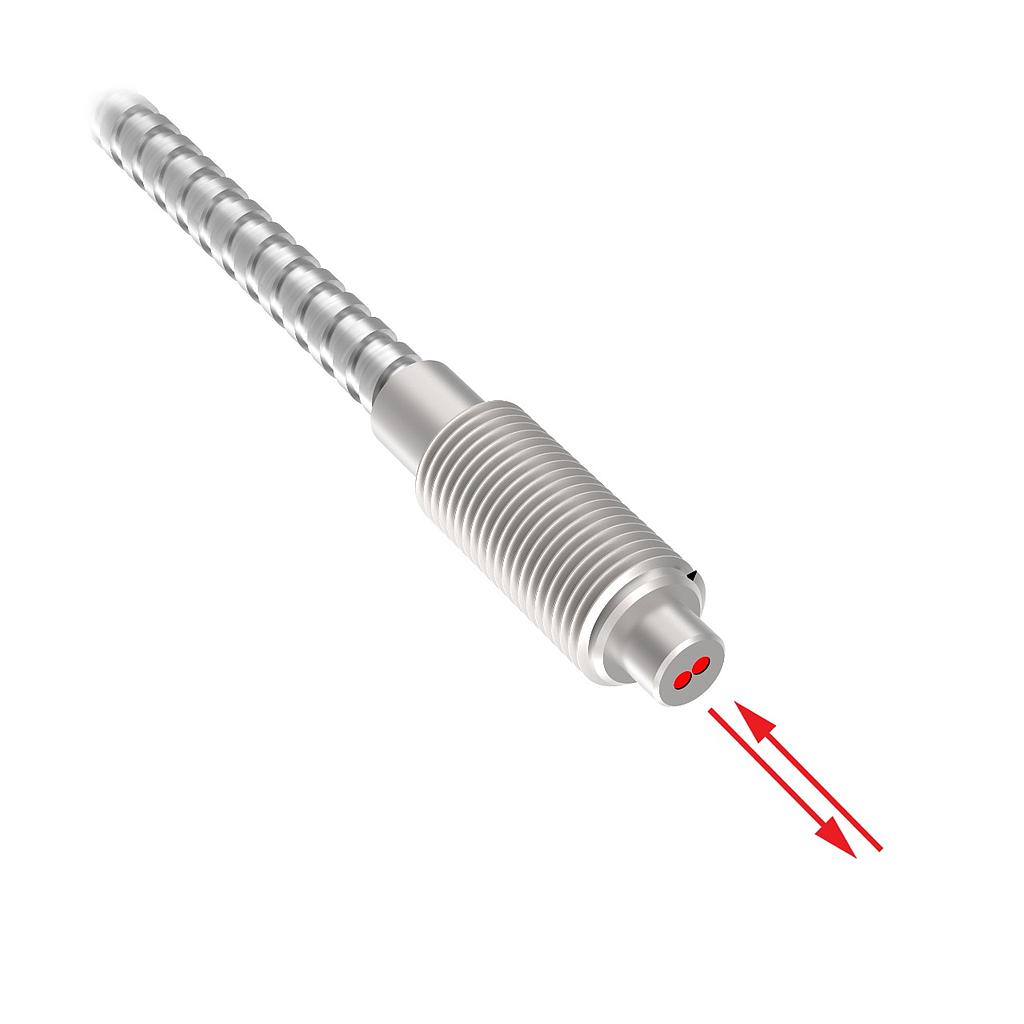

Plastic Fiber (PBT415TSL5-VL)

https://www.branom.com/web/image/product.template/45323/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber
  • Diffuse Reflective
  • Core Dia.: 1 mm
  • Fiber Length 5 m
  • Thread M6
  • Stainless Monocoil
  • 25 mm Bend Radius
  • Vantage Line
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 10 fbm
  • Measured Max Distance: 143 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 4.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Ferrule
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M6
  • Fiber Length: 5 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Ferrule
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 3m to <= 5m
  • Min Hinged Door Size: 25 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 143 mm
  • Max Distance: DF-G3: 1115 mm
  • Max Distance: DF-G2: 232 mm
  • Minimum Bend Radius: 25 mm
