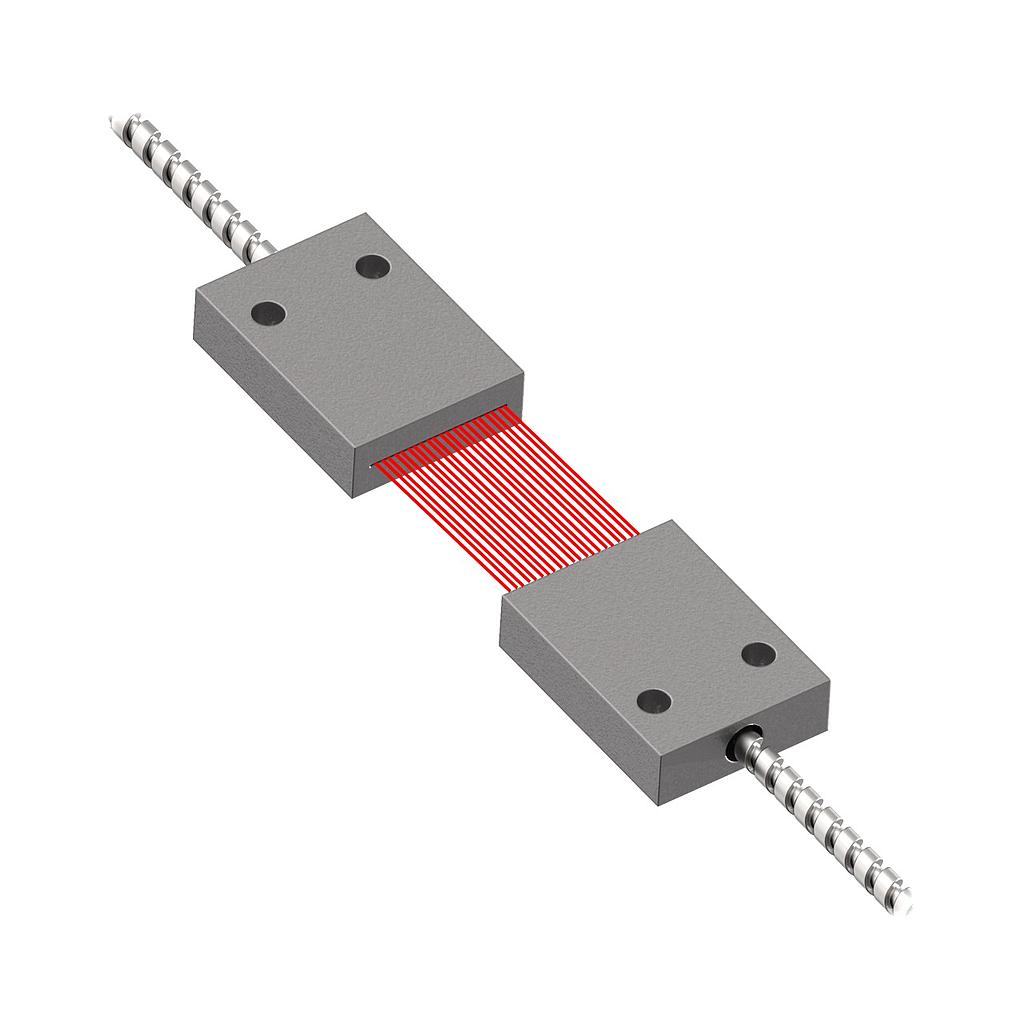

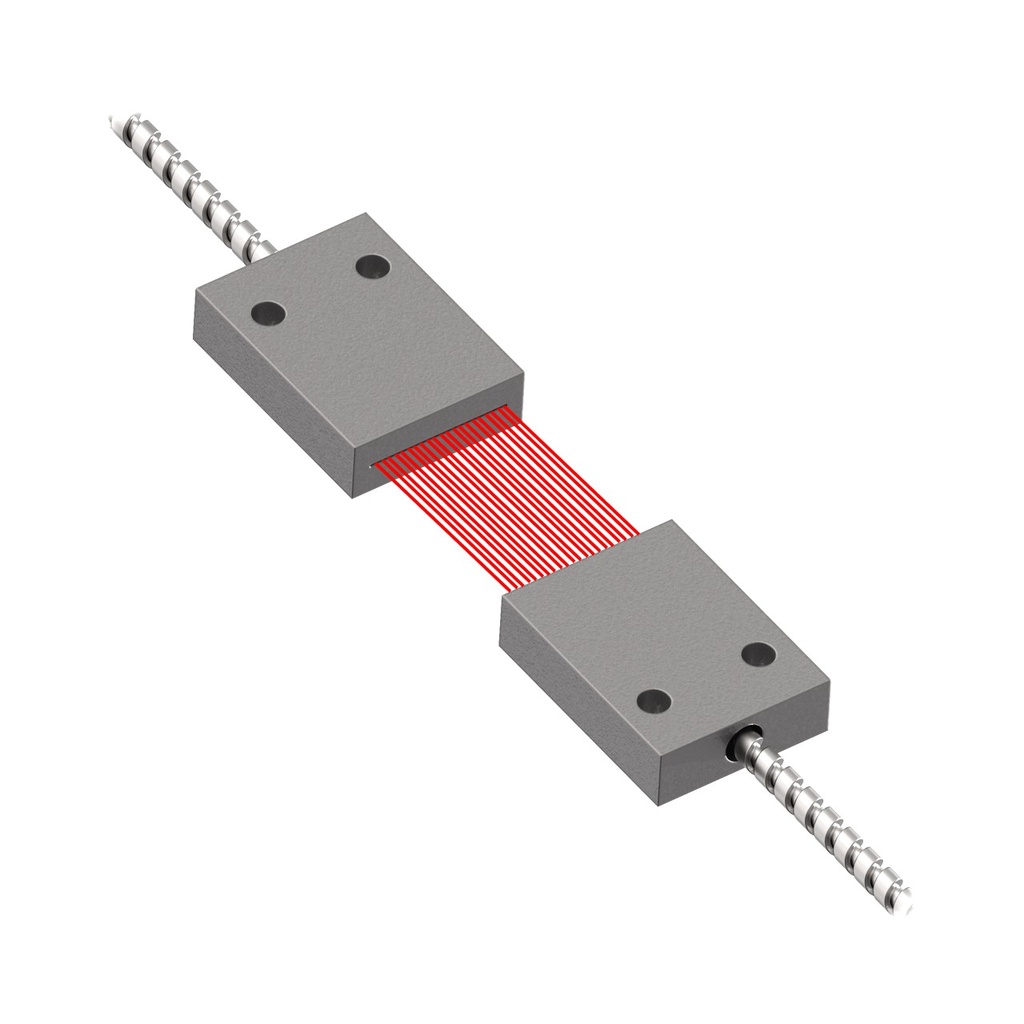

Glass Fiber Opposed Mode (IR13ST5AL7.6)

https://www.branom.com/web/image/product.template/45248/image_1920?unique=c26756c
(0 review)

Features:

  • Glass Fiber Opposed Mode
  • 1m long
  • Stainless Steel Sheath
  • Rectangle Sensing Tip
  • 0.25 mm X 7.62 mm array
  • Max. Operating Temperature at Sensing Tip, 315C
  • Terminated for use in Plastic Fiber Sensors
  • Max Operating Temperature: 315 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Array
  • Sensing Mode (General): Opposed
  • Array Length: 7.6 mm
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 829 fbm
  • Measured Max Distance: 719 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: Yes
  • Fiber Sensing End Size: 19.1 x 25.4 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Array
  • Termination: Terminated
  • Sensing End Material (Specific): Aluminum
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.6 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 19.1 x 25.4 mm
  • Fiber Length: 1 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Array
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 5m
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: 719 mm
  • Max Distance: DF-G3: 5590 mm
  • Max Distance: DF-G2: 1165 mm
  • Minimum Bend Radius: 25 mm

$ 351.00 351.0 USD $ 351.00

$ 351.00

Not Available For Sale

    This combination does not exist.
