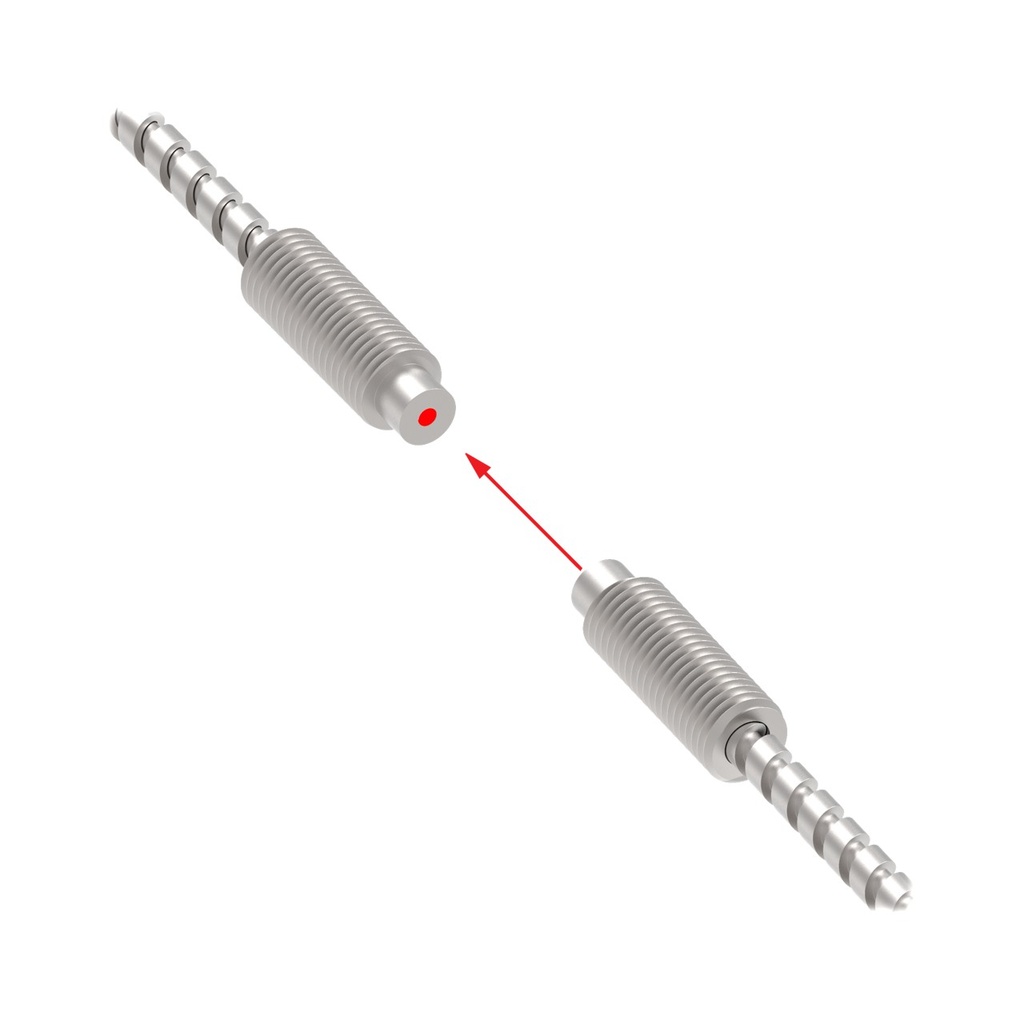

Glass Fiber (IT.86.6ST5M6)

https://www.branom.com/web/image/product.template/44190/image_1920?unique=c26756c
(0 review)

Features:

  • Glass Fiber
  • Individual 1.3 mm Bundle
  • M6 Threaded Tip
  • Stainless Sheathing
  • 2 M Long
  • Terminated For Plastic Fiber Sensors
  • Max Operating Temperature: 249 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 1044 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M6
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.3 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M6
  • Fiber Length: 2 m
  • Fiber Optic Type: Glass
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 198.00 198.0 USD $ 198.00

$ 198.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
