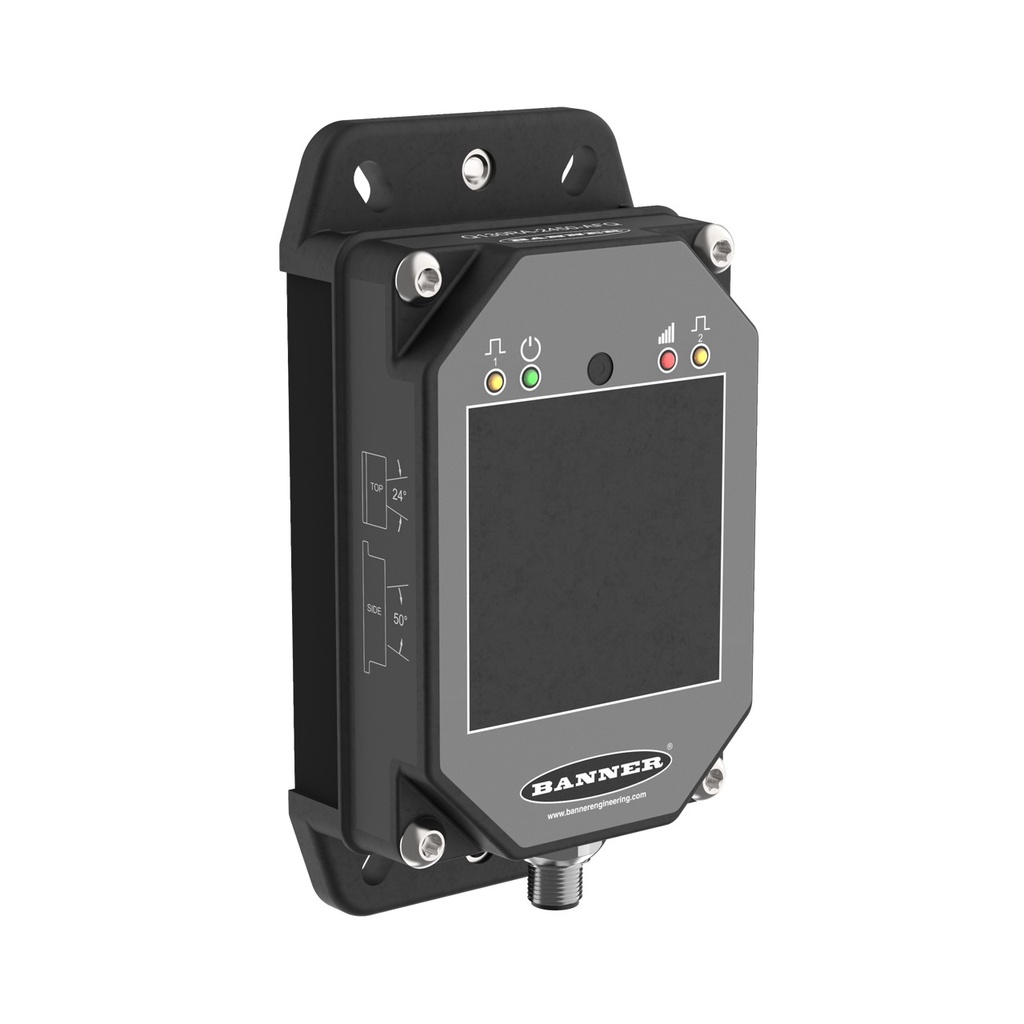

R-Gage Series Radar Sensor (Q130RA-9076-AFQ)
Representative photo. Please check item description for details.

R-Gage Series Radar Sensor (Q130RA-9076-AFQ)

https://www.branom.com/web/image/product.template/204052/image_1920?unique=c26756c
(0 review)

Features:

    R-GAGE Series Radar Sensor; Bipolar Outputs; Range 1 to 24 Meters Single Zone; Response Speed 50 ms; Eurofast 5-pin Quick-Disconnect
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 3000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Rectangular
  • Max Sensing Distance: 24000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Storage Temp: -40 to 65 °C
  • Number of Pins: 5
  • Adjustments: Software
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: 50 ms
  • Output Saturation Voltage PNP Outputs: 3.5 V
  • Max Discrete (Switched) Output (mA): 50
  • Min Sensing Distance: 1000 mm
  • Discrete (Switched) Outputs: Bipolar (NPN & PNP)
  • Output Protection: Protected against short circuit
  • Profibus: No
  • Output Saturation Voltage NPN Outputs: 3.5 V
  • Operating Frequency: 24 GHz
  • Connection Type: Integral QD
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: Yes
  • Radar Beam Pattern (H x V °): 90 x 76
  • Indicator Type: LED

$ 852.00 852.0 USD $ 852.00

$ 852.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
