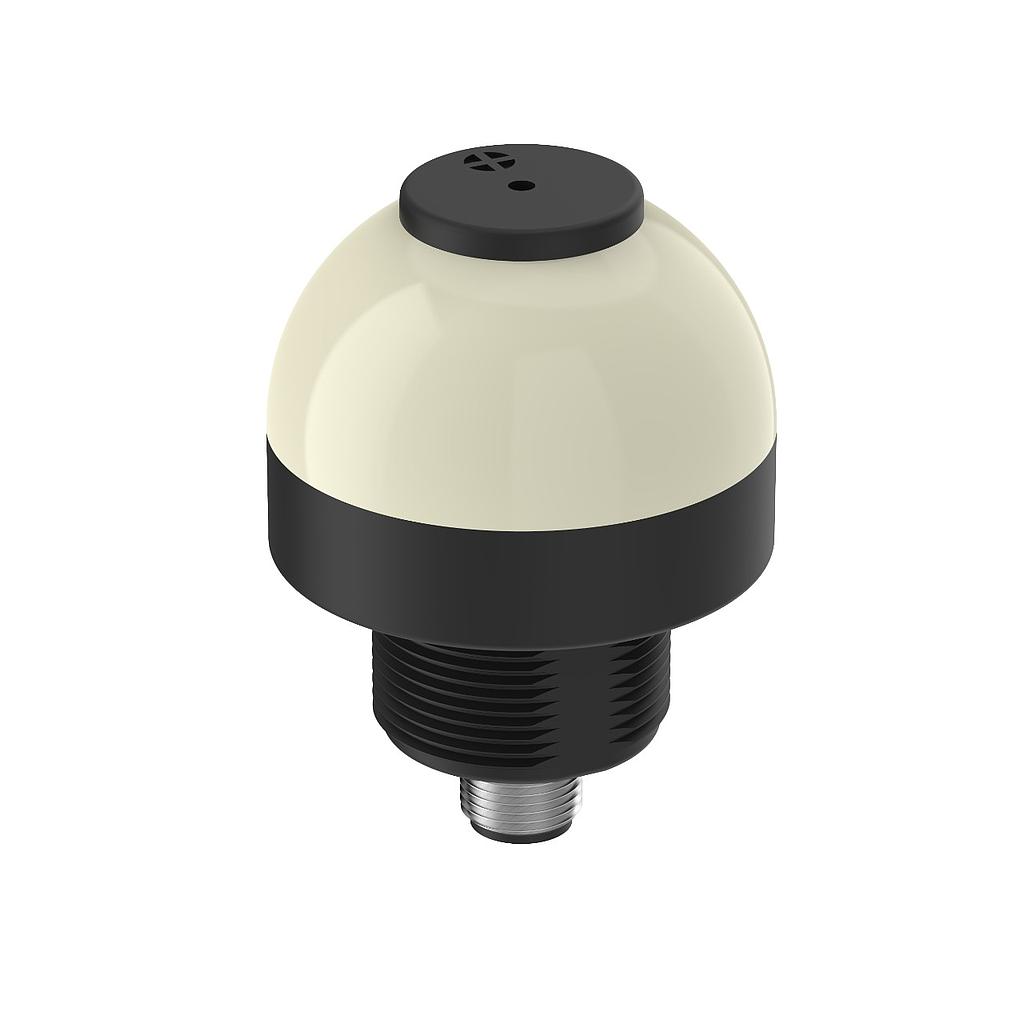

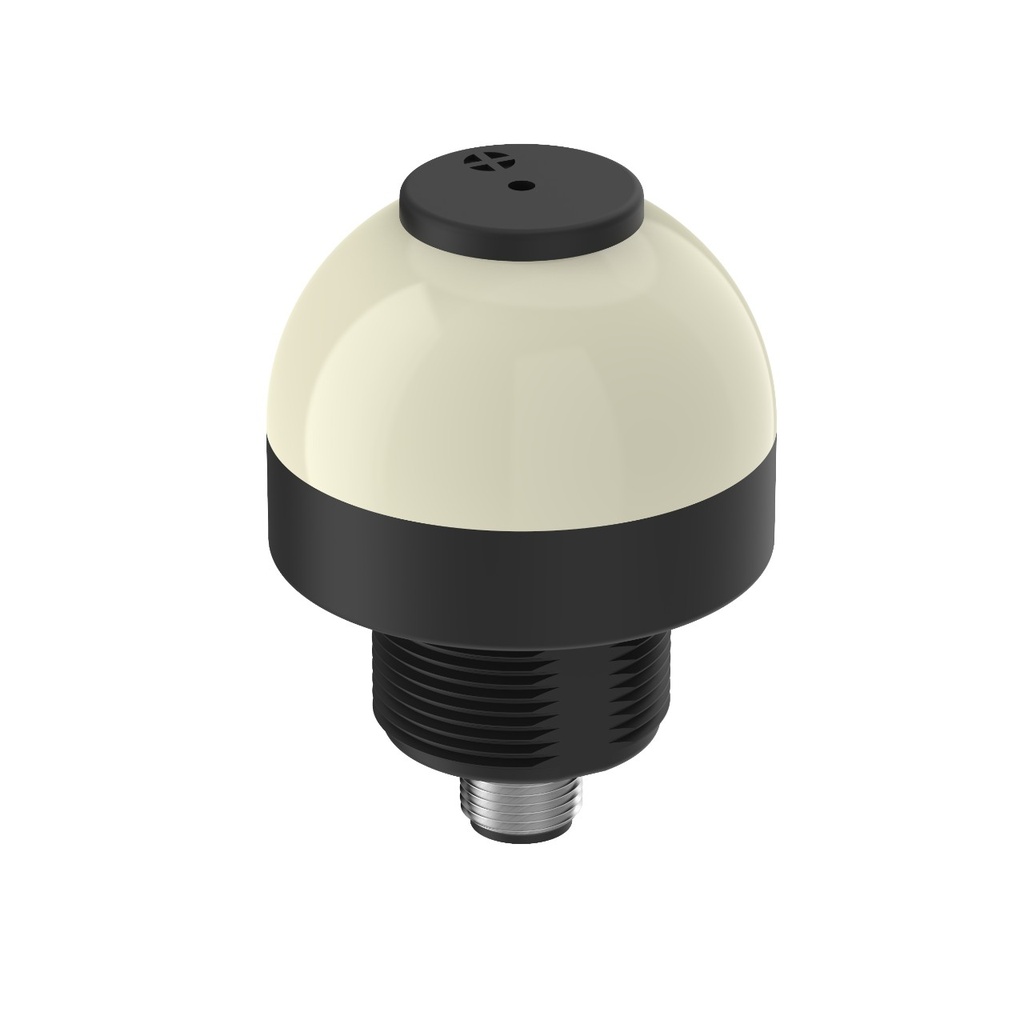

K50 Pro with IO-Link Series: RGB Audible Indicator (K50L2RGBKA1Q)

https://www.branom.com/web/image/product.template/44062/image_1920?unique=c26756c
(0 review)

Features:

  • K50 Pro with IO-Link Series: RGB Audible Indicator
  • Voltage: 18
  • 30 V dc
  • Housing: Polycarbonate
  • IP50 tone: Steady
  • Input: Bimodal
  • Colors: Multicolor
  • Euro 4-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 150 mA
  • Max Current - Audible Alarm (mA): 220 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP50
  • Housing Style: Base Mount - Dome Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 68.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Max Audible Intensity: 75 dB @ 1 m
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Min Audible Intensity @ 1m: 75 dB
  • Color Technology: RGB IO-Link
  • Feature: Audible: Yes
  • Color Option 1: RGB
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Audible Operating Frequency (kHz): 3
  • Number of Colors / Segments: Programmable
  • Product Size (mm): 50 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 30 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Multitone
  • Storage Temp: -40 to 70 °C
  • Dimming Option: Programmable
  • Secondary Material: ABS
  • Connection Type: Integral QD
  • Cord/Cable Length: 150 mm
