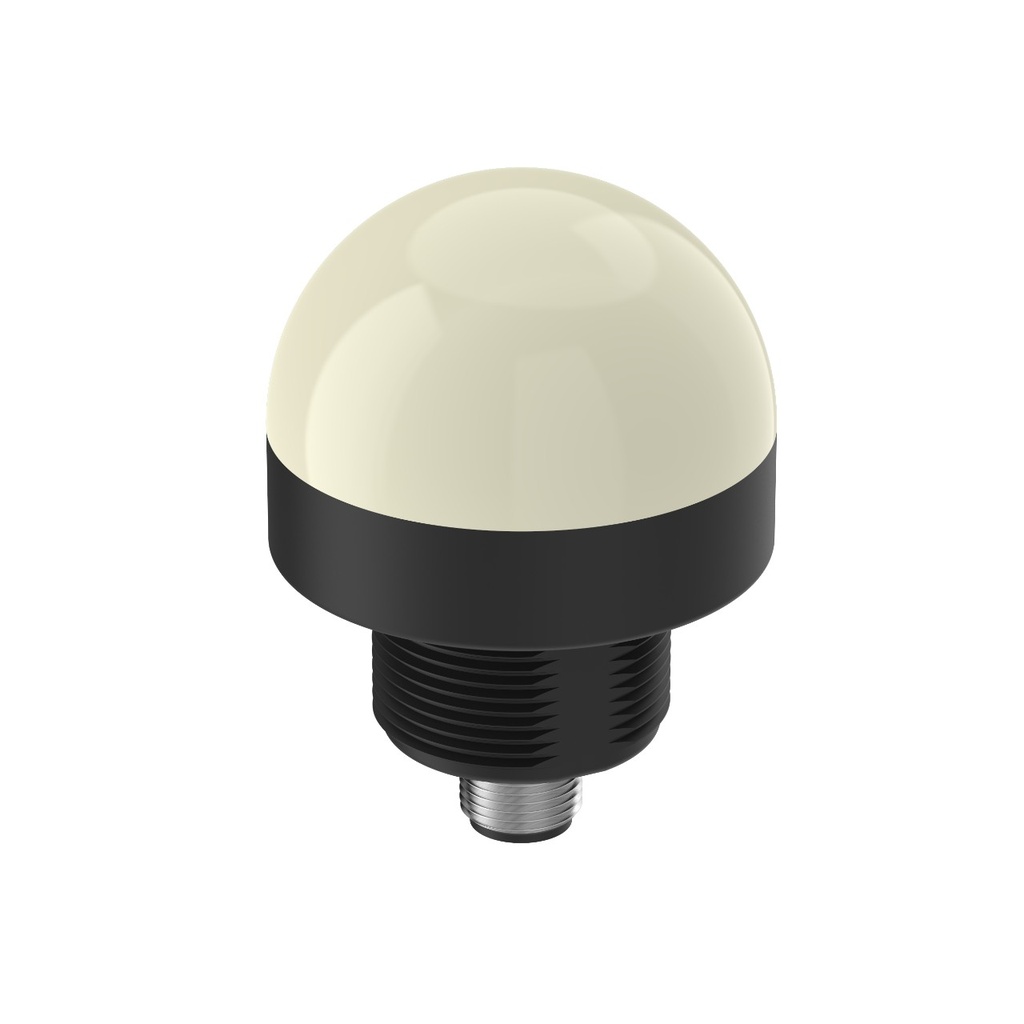

Representative photo. Please check item description for details.

K50 Pro with IO-Link Series: RGB Indicator (K50L2RGBKQ)

https://www.branom.com/web/image/product.template/44060/image_1920?unique=c26756c
(0 review)

Features:

  • K50 Pro with IO-Link Series: RGB Indicator
  • Voltage: 18
  • 30 V dc
  • Housing: Polycarbonate
  • IP66 IP67 IP69K
  • Input: Bimodal
  • Colors: Multicolor
  • Euro 4-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 150 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP66/67/69
  • Housing Style: Base Mount - Dome Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 69.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB IO-Link
  • Feature: Audible: No
  • Color Option 1: RGB
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: Programmable
  • Product Size (mm): 50 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 30 ms
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Dimming Option: Programmable
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 4X/13
  • Cord/Cable Length: 150 mm
