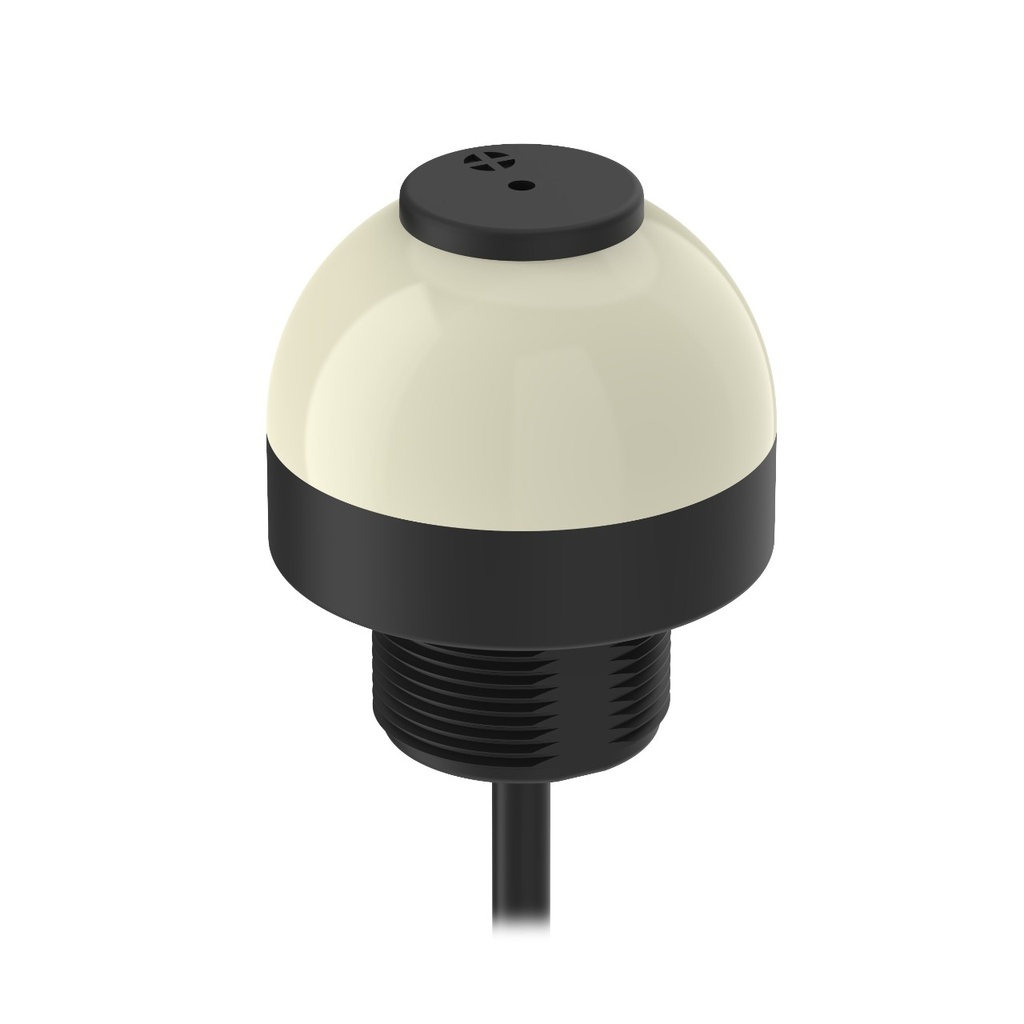

K50 Pro Series: 7-color RGB Audible Indicator (K50L2RGB7AL1QP)

https://www.branom.com/web/image/product.template/44054/image_1920?unique=c26756c
(0 review)

Features:

  • K50 Pro Series: 7-color RGB Audible Indicator
  • Voltage: 10
  • 30 V dc
  • Housing: Polycarbonate
  • IP50 tone: Loud Steady
  • Input: Bimodal
  • Colors: Multicolor
  • Euro 5-pin 150 mm (6 in) PVC Pigtail
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 220 mA
  • Max Current - Audible Alarm (mA): 220 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP50
  • Housing Style: Base Mount - Dome Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 57.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Color Option 3: Blue
  • Max Audible Intensity: 95 dB @ 1 m
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Green
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 6.3
  • Min Audible Intensity @ 1m: 95 dB
  • Color Technology: RGB Configurable
  • Feature: Audible: Yes
  • Color Option 7: Cyan
  • Color Option 1: Red
  • Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
  • Housing Color: Black
  • Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
  • Multi-Color Device: Single Color On
  • Quick Disconnect Type: M12
  • Audible Operating Frequency (kHz): 2.7
  • Number of Colors / Segments: 7
  • Color 3 - Wavelength/Color Temp/Coordinates: 470 nm
  • Lumens Color 2: 21.4
  • Lumens Color 3: 4.7
  • Product Size (mm): 50 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 530 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): Yes
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Continuous
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Yellow
  • Color 4 - Wavelength/Color Temp/Coordinates: 0.457, 0.485
  • Color 6 - Wavelength/Color Temp/Coordinates: 0.365, 0.176
  • Color Option 5: White
  • Color 5 - Wavelength/Color Temp/Coordinates: 5950K
  • Lumens Color 5: 21.3
  • Color 7 - Wavelength/Color Temp/Coordinates: 0.154, 0.321
  • Lumens Color 4: 17.2
  • Lumens Color 6: 8.5
  • Lumens Color 7: 25.1
  • Wire Selectable Function: Multi-Function
  • Color Option 6: Magenta
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m

$ 156.00 156.0 USD $ 156.00

$ 156.00

Not Available For Sale
