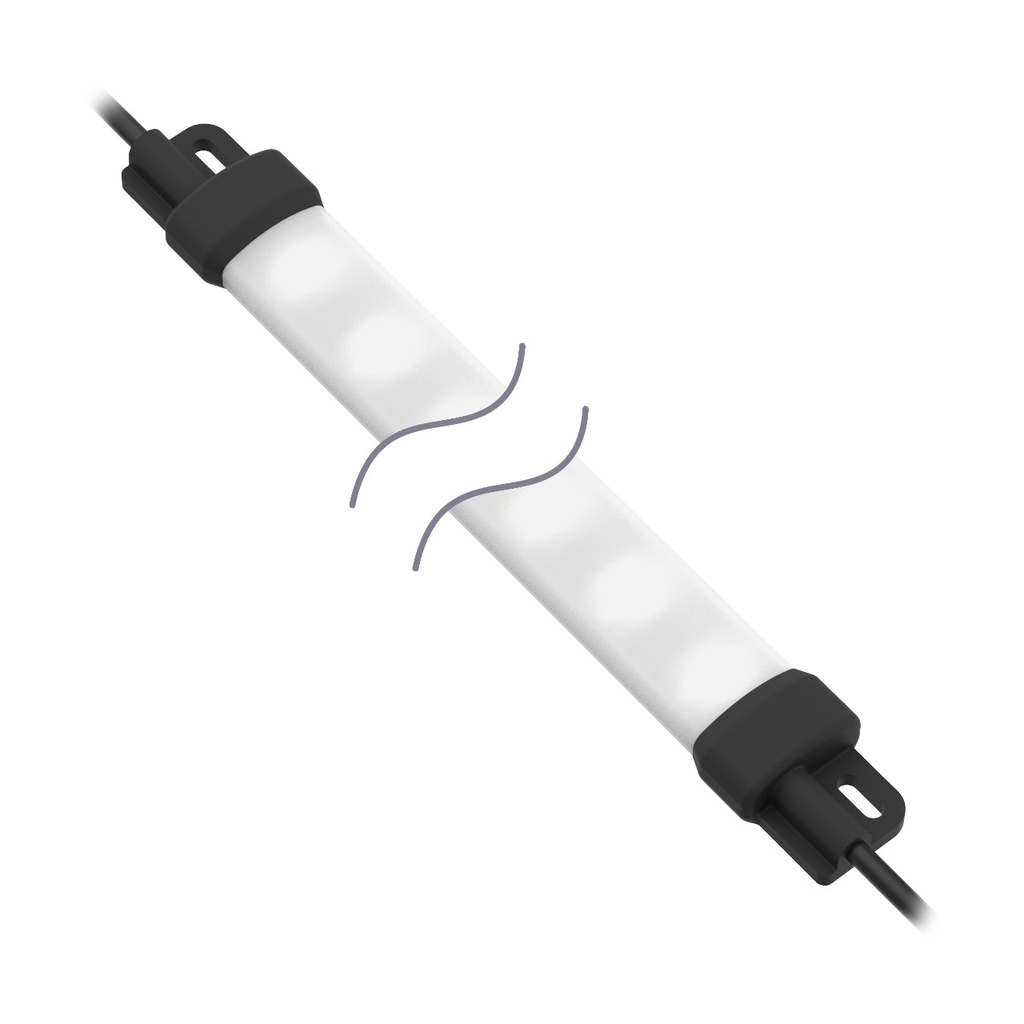

Representative photo. Please check item description for details.

WLS15 Work Light Strip (WLS15CDW0920DSQS)

https://www.branom.com/web/image/product.template/43941/image_1920?unique=c26756c
(0 review)

Features:

  • WLS15 Work Light Strip
  • Diffused Window
  • Length: 920 mm
  • Voltage: 12 or 24 V dc
  • Environmental Rating: IP66,67
  • Color: Daylight White
  • Cascadable
  • Deutsch 2-pin DTM PVC Pigtail
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 1440 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 60 °C
  • Ingress Protection: IP66/67
  • Housing Style: Linear Strip
  • Housing Material_: Polycarbonate
  • Supply Voltage: 12/24 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 1050
  • Color Technology: RGB Configurable
  • Feature: Audible: No
  • Color Option 1: Daylight White
  • Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type: Deutsch
  • Number of Colors / Segments: 1
  • Number of Input Pins/Conductors: 2
  • Mounting Thread: No Thread
  • Storage Temp: -40 to 70 °C
  • Dimming Option: PWM
  • Secondary Material: Polyamide
  • Feature: Cascade: Yes
  • Illuminated Length (LxWxH): 846.4 mm
  • Feature: Illumination: Yes
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 2 m
