  3. K80L Series Ez-Light: 1-Color Indicator With (K80AK23825QP)
Public Pricelist (v2)
K80L Series Ez-Light: 1-Color Indicator With (K80AK23825QP)

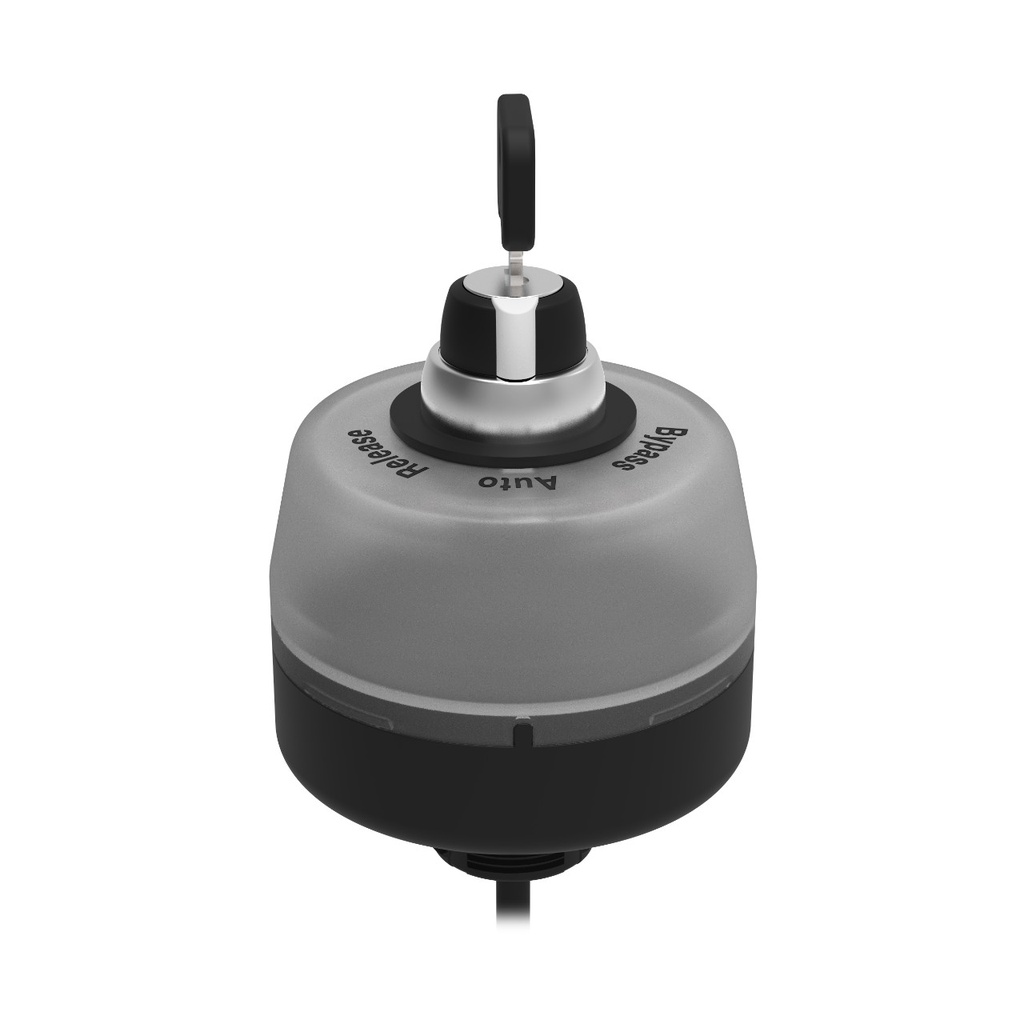

Representative photo. Please check item description for details.

K80L Series Ez-Light: 1-Color Indicator With (K80AK23825QP)

https://www.branom.com/web/image/product.template/203794/image_1920?unique=c26756c
(0 review)

Features:

    K80L Series EZ-LIGHT: 1-Color Indicator with; Normally Open 3-Position Key Switch; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Input: PNP; Colors: Red; Euro 4-pin 1 m (39.4 in) PVC Pigtail
    • Valve: Actuation: Yes
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 65 mA
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP40
  • Housing Style: Base Mount - Dome Window
  • Housing Material_: Polycarbonate
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Red
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Mounting Thread: M30 x 1.5
  • Feature: I/O Block Compatible: Yes
  • Output: PNP
  • Operation: Normally Open
  • Activation Function: Key Operated Selector Switch
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 1 m

$ 403.00 403.0 USD $ 403.00

$ 403.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
