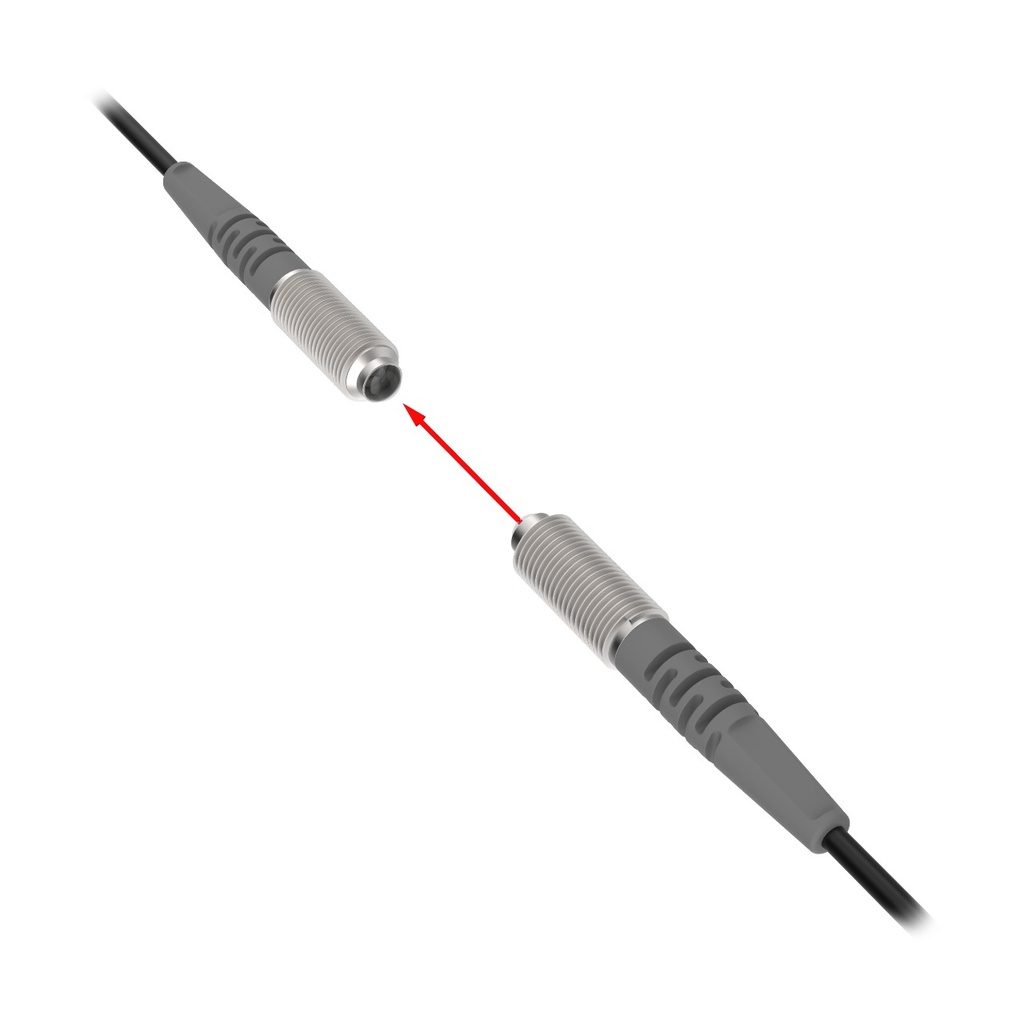

Plastic Fiber (PITL23UM6-VL)

https://www.branom.com/web/image/product.template/43910/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber
  • Opposed Mode Pair
  • Core Dia.: 0.5 mm
  • Fiber Length 1 m
  • Stainless Thread M6 With integrated Lens, 20 mm
  • spot size at 100 mm range
  • Flex Relief, Free cut, Vantage Line
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 2 fbm
  • Measured Max Distance: 3148 mm
  • Min Bend Radius: 15 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M6
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Lens
  • Termination: Free Cut
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: No
  • Core Diameter: 0.5 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: Yes
  • Feature: Flex Relief: Yes
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M6
  • Fiber Length: 1 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Lens
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 5m
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 3148 mm
  • Max Distance: DF-G3: 24458 mm
  • Max Distance: DF-G2: 5099 mm
  • Minimum Bend Radius: 15 mm

$ 70.00 70.0 USD $ 70.00
