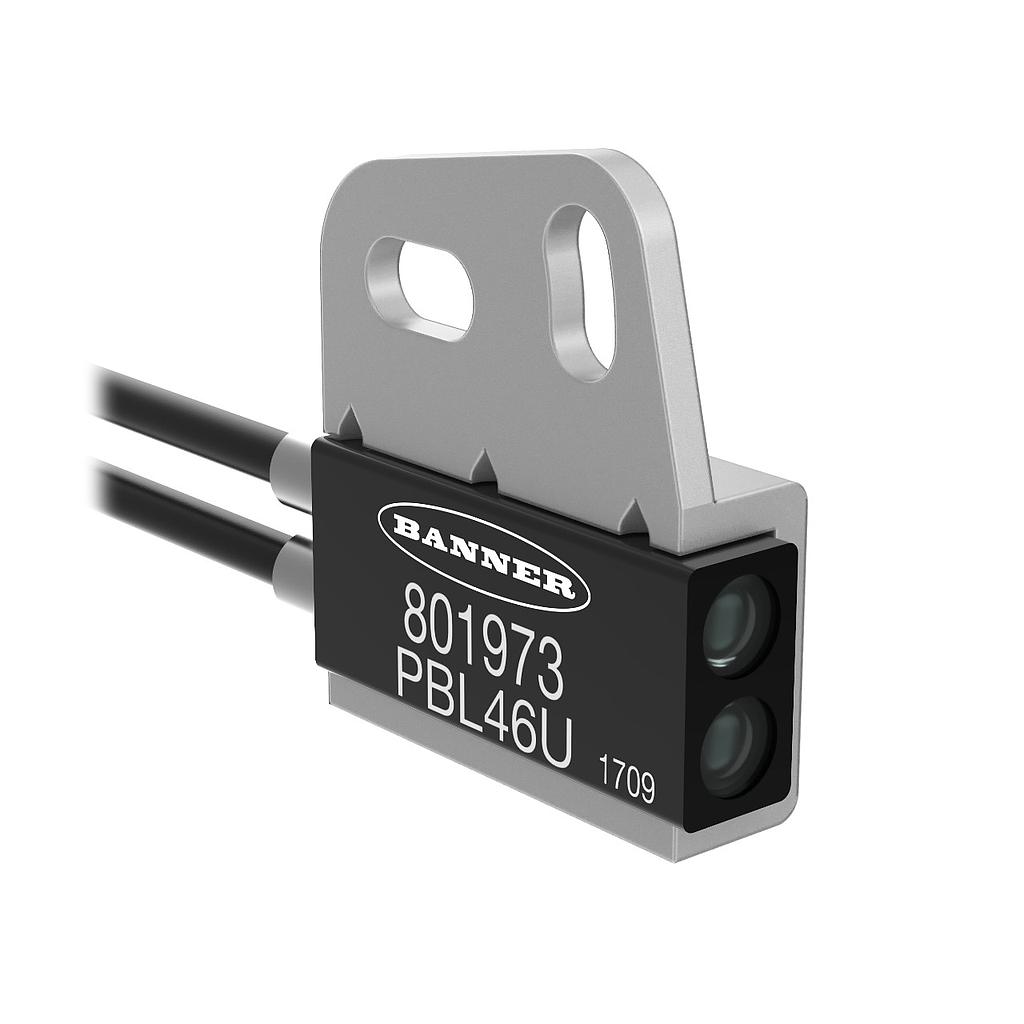

Plastic Fiber (PBL46U)

https://www.branom.com/web/image/product.template/43903/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber
  • Diffuse Reflective
  • Rectangular Aluminum Housing with integrated lenses
  • 1 mm core dia
  • 2m Long Cable length
  • Free cut, includes mounting bracket
  • Max Operating Temperature: 70 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 4 fbm
  • Measured Max Distance: 588 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 9.5 x 21.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Lens
  • Termination: Free Cut
  • Sensing End Material (Specific): Aluminum
  • Feature: Integrated Lens: No
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 9.5 x 21.0 mm
  • Fiber Length: 2 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Lens
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 3m to <= 5m
  • Min Hinged Door Size: 25 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 588 mm
  • Max Distance: DF-G3: 4565 mm
  • Max Distance: DF-G2: 952 mm
  • Minimum Bend Radius: 25 mm

$ 245.00 245.0 USD $ 245.00

$ 245.00

Not Available For Sale

    This combination does not exist.

    Contact Us
