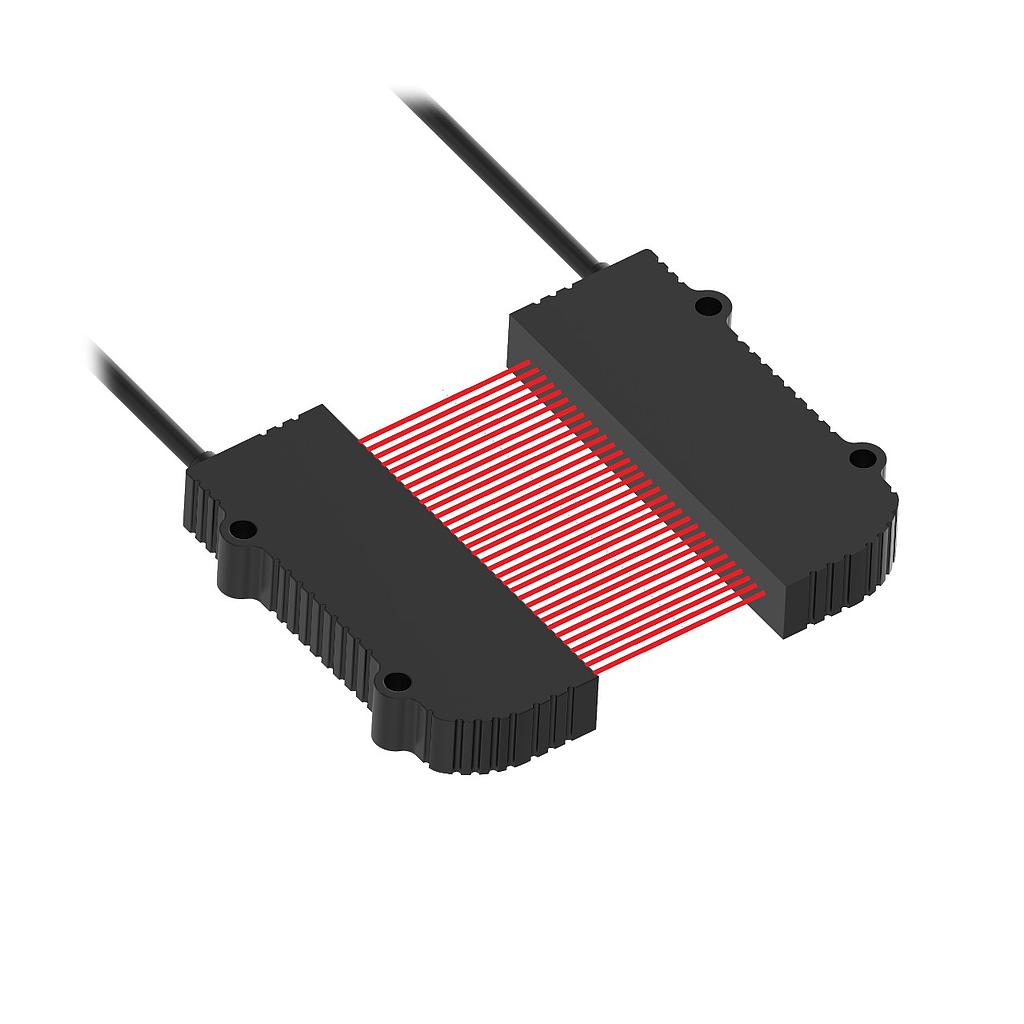

Representative photo. Please check item description for details.

Plastic Fiber (PIRS1X3215T5AL47)

https://www.branom.com/web/image/product.template/43901/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber
  • Opposed Mode
  • Core Dia.: 32 x 0.25 mm
  • Fiber Length 5 m
  • Rectangle
  • Array Length 47 mm
  • Sideview
  • T5 Termination
  • Max Operating Temperature: 70 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Array
  • Sensing Mode (General): Opposed
  • Array Length: 46.5 mm
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 160 fbm
  • Min Bend Radius: 60 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: Yes
  • Fiber Sensing End Size: 20.2 x 55.2 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Array
  • Termination: Terminated
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 32 x 0.3 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 20.2 x 55.2 mm
  • Fiber Length: 5 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Sideview
  • Sensing End Segment 3: Array
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 60 mm

$ 320.00 320.0 USD $ 320.00

$ 320.00

Not Available For Sale

    This combination does not exist.
