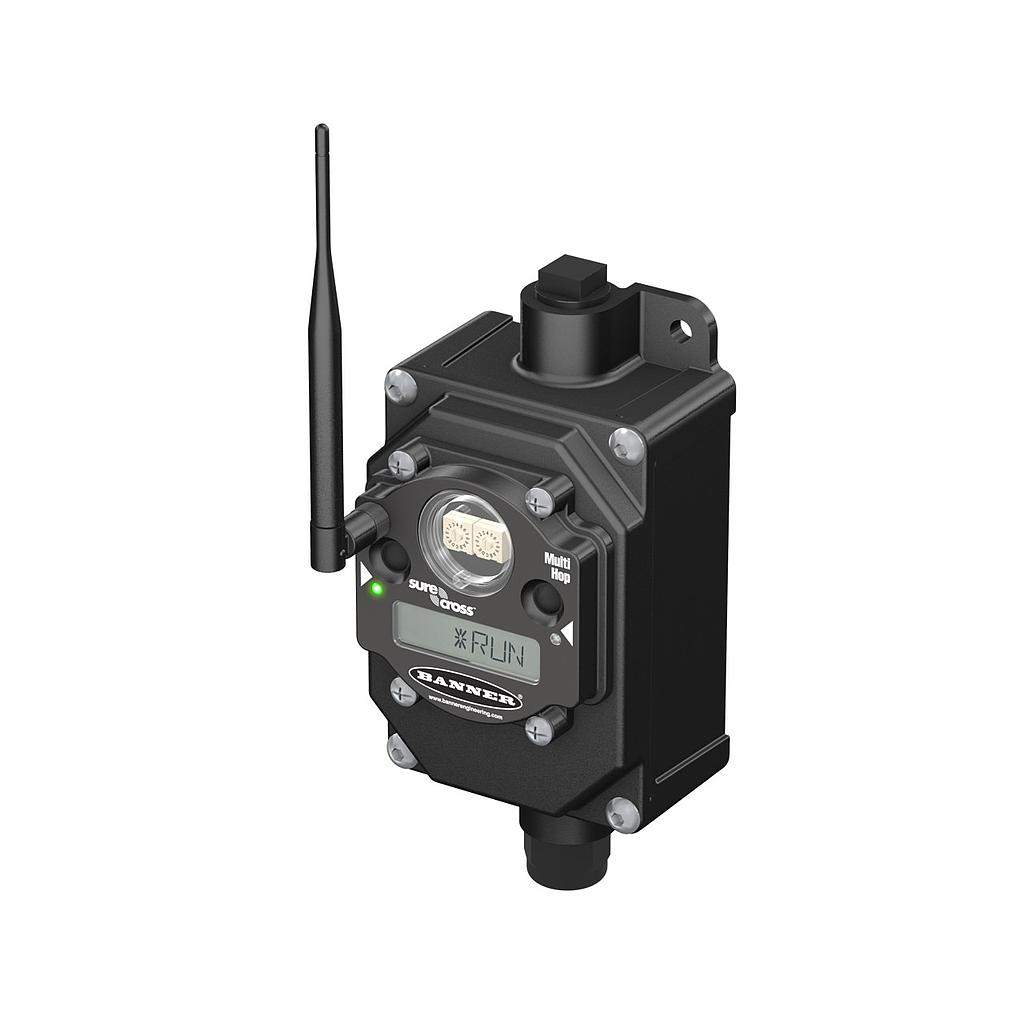

MultiHop 900 MHz 1W IP65 (DX80DR9M-H15E)

https://www.branom.com/web/image/product.template/43689/image_1920?unique=c26756c
(0 review)

Features:

  • MultiHop 900 MHz 1W IP65
  • 100-277 V ac, Field Wireable 25W Supply, External Antenna
  • Inputs: Two PNP Discrete, Two 0-20mA Analog
  • Outputs: Two AC/DC Relay (SPDT), Two PNP Discrete, Two 0-10 V Analog
    • Power: AC
  • Feature: Discrete Outputs: Yes
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 80 °C
  • Power Supply: 100-277 VAC at 50/60 Hz
  • Ingress Protection: IP65
  • Housing Style: Enclosed Terminals
  • Device Type: Multihop Data Radio
  • Feature: RS-232: No
  • Feature: RS-485: Yes
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Feature: Hazardous Area: No
  • Feature: Modbus RTU: Yes
  • Feature: Wireless: Yes
  • Input/Output: Analog & Discrete
  • Relative Humidity: 95%
  • Feature: LCD Display: Yes
  • Output Details: 2 Discrete, 2 -10 VDC Analog, 2 AC/DC Relay
  • Feature: Point-to-Point Topology: Yes
  • Feature: Point-to-Multipoint Topology: Yes
  • Input Details: (2) Discrete; (2) 0 - 20 mA Current Analog
  • Feature: Discrete Inputs: Yes
  • Wireless Radio Frequency: 900 MHz
  • Feature: Tree Topology: Yes
  • Feature: Star Topology: Yes
  • Feature: Analog Input(s): Yes
  • Feature: Analog Output(s): Yes
  • NEMA / UL: NEMA 4X

$ 781.00 781.0 USD $ 781.00

$ 781.00

Not Available For Sale

    This combination does not exist.
