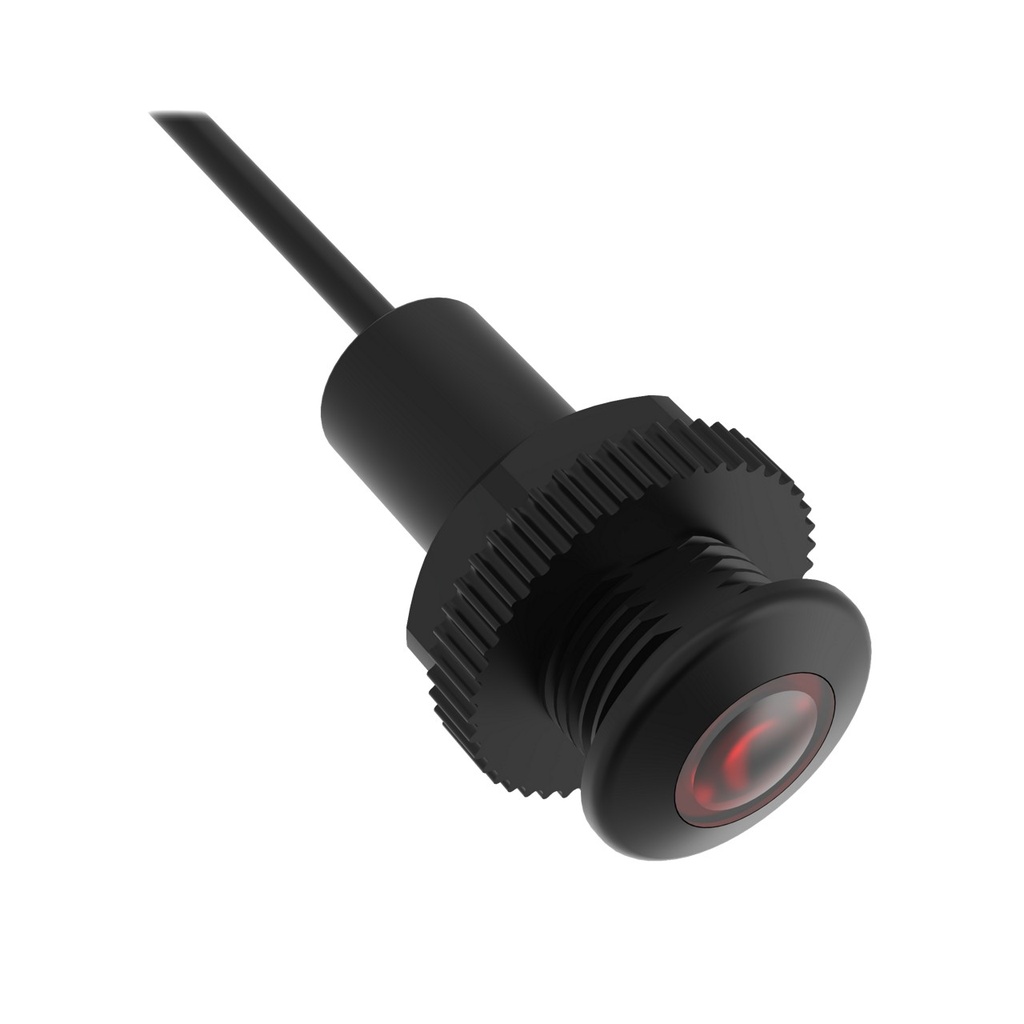

SB12 Threaded Series Emitter (SB12TE1-801337)

https://www.branom.com/web/image/product.template/43558/image_1920?unique=c26756c
(0 review)

Features:

  • SB12 Threaded Series Emitter
  • Range: 1.5 m
  • Input Voltage: 10-30 V dc
  • Output: Not applicable
  • No outputs
  • 2 m (6.5 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 350
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 1500 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 2.5 ms ON/1.75 ms OFF
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 12
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Cable
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
