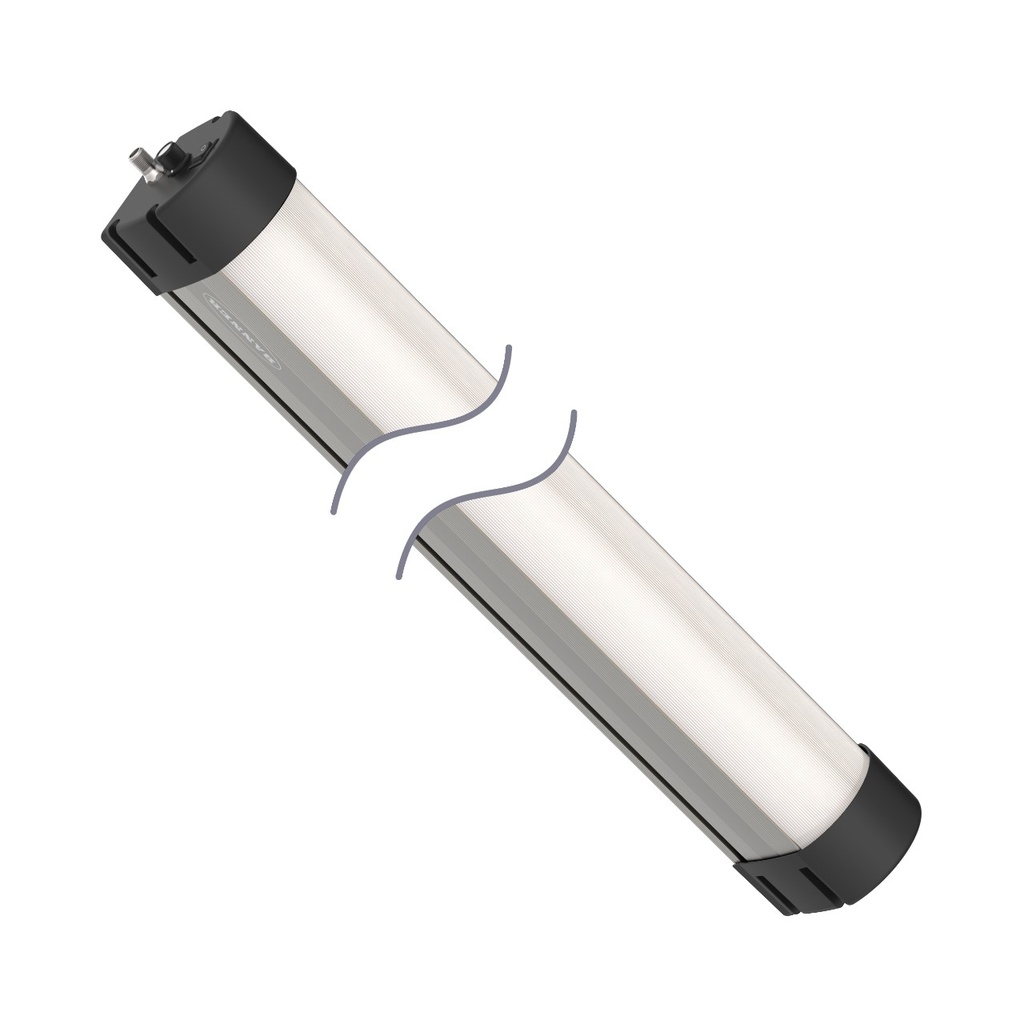

Wlb92 Work Light Bar (WLB92XB1100PBQ)
Representative photo. Please check item description for details.

Wlb92 Work Light Bar (WLB92XB1100PBQ)

https://www.branom.com/web/image/product.template/205636/image_1920?unique=c26756c
(0 review)

Features:

    WLB92 Work Light Bar; Switched On/Off; Dimming Potentiometer ; Length: 1100 mm; Voltage: 24 V dc; Environmental Rating: IP40 ; Color: Blue; ; Euro 4-pin Integral Connector; Diffuse window
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Source: VDC
  • Ingress Protection: IP40
  • Housing Style: Linear Strip
  • Housing Material_: Aluminum
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 1226.0 x 97.0 x 104.0 mm
  • Feature: Wireless: No
  • Supply Voltage: 24 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 840
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Blue
  • Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 92 mm
  • Number of Input Pins/Conductors: 4
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Dimming Option: Dimmer Knob
  • Illuminated Length (LxWxH): 1097.0 mm
  • Illumination Switch Function: O=OFF; I=ON
  • Feature: Illumination: Yes
  • Connection Type: Integral QD

$ 828.00 828.0 USD $ 828.00

$ 828.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share
