Dxm150 Modbus Slave Device (DXM150-S2R2)

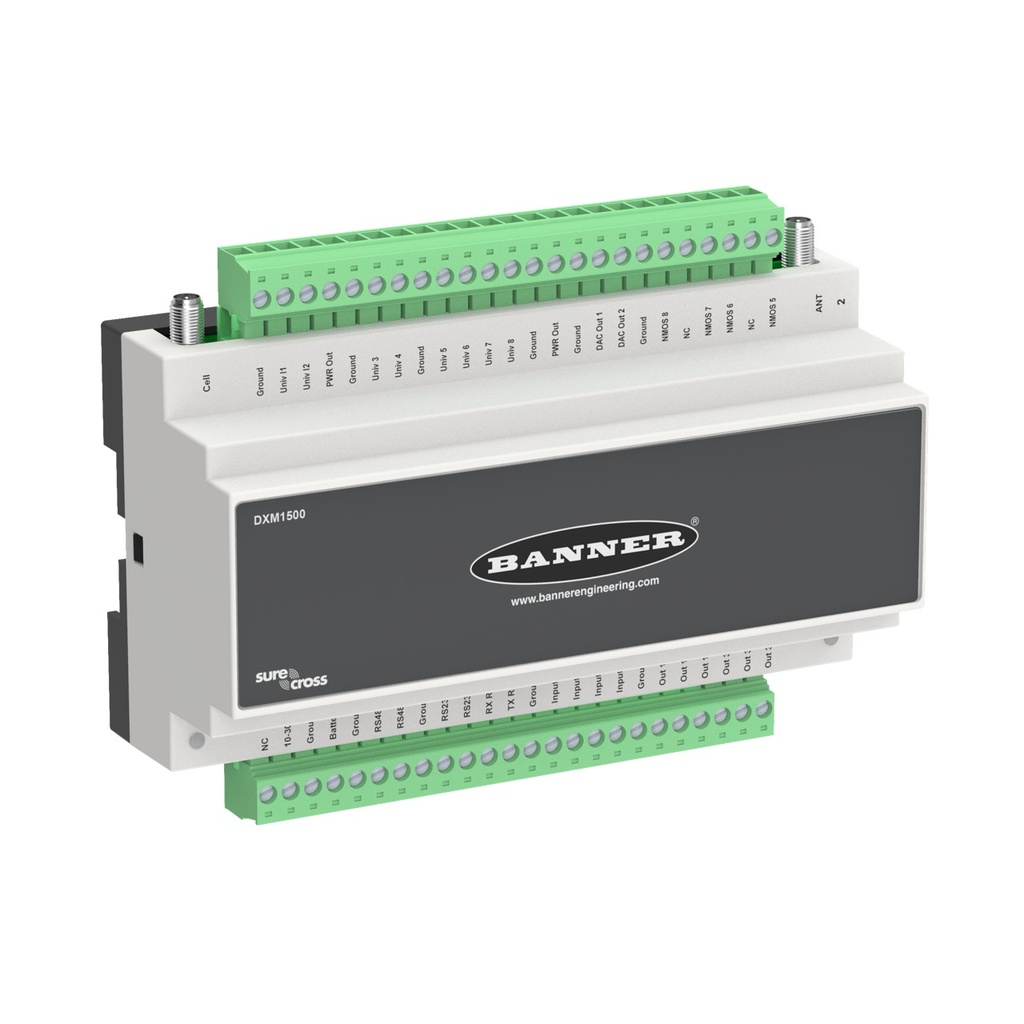

Representative photo. Please check item description for details.

Dxm150 Modbus Slave Device (DXM150-S2R2)

https://www.branom.com/web/image/product.template/202092/image_1920?unique=c26756c
(0 review)

Features:

    DXM150 Modbus Slave Device; Multihop Radio 900 MHz 1W; Inputs: 2 Discrete, 8 Universal; Outputs: 8 Discrete, 2 Analog; RS485
    • Power: DC
    • Feature: Discrete Outputs: Yes
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Power Supply: 12-30 VDC
    • Ingress Protection: IP20
    • Housing Style: External Terminals
    • Device Type: Modbus Slave Device
    • Feature: RS-232: No
    • Feature: RS-485: Yes
    • Feature: Has EtherNet/IP: No
    • Feature: Modbus/TCP: No
    • Feature: Hazardous Area: No
    • Feature: Modbus RTU: Yes
    • Physical Dimensions: 150 mm
    • Feature: Wireless: Yes
    • Input/Output: Analog & Discrete
    • Relative Humidity: 95%
    • Output Details: 8 PNP/NPN Selectable, 2 Analog
    • Feature: Point-to-Point Topology: Yes
    • Feature: Point-to-Multipoint Topology: Yes
    • Input Details: (2) Isolated Discrete and (8) Universal
    • Feature: Discrete Inputs: Yes
    • Wireless Radio Frequency: 900 MHz
    • Feature: Tree Topology: Yes
    • Feature: Star Topology: Yes
    • Feature: Analog Input(s): Yes
    • Ethernet Connector Type: N/A
    • Feature: Analog Output(s): Yes
    • NEMA / UL: NEMA 1
      • Power: DC
    • Feature: Discrete Outputs: Yes
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Power Supply: 12-30 VDC
    • Ingress Protection: IP20
    • Housing Style: External Terminals
    • Device Type: Modbus Slave Device
    • Feature: RS-232: No
    • Feature: RS-485: Yes
    • Feature: Has EtherNet/IP: No
    • Feature: Modbus/TCP: No
    • Feature: Hazardous Area: No
    • Feature: Modbus RTU: Yes
    • Physical Dimensions: 150 mm
    • Feature: Wireless: Yes
    • Input/Output: Analog & Discrete
    • Relative Humidity: 95%
    • Output Details: 8 PNP/NPN Selectable, 2 Analog
    • Feature: Point-to-Point Topology: Yes
    • Feature: Point-to-Multipoint Topology: Yes
    • Input Details: (2) Isolated Discrete and (8) Universal
    • Feature: Discrete Inputs: Yes
    • Wireless Radio Frequency: 900 MHz
    • Feature: Tree Topology: Yes
    • Feature: Star Topology: Yes
    • Feature: Analog Input(s): Yes
    • Ethernet Connector Type: N/A
    • Feature: Analog Output(s): Yes
    • NEMA / UL: NEMA 1
