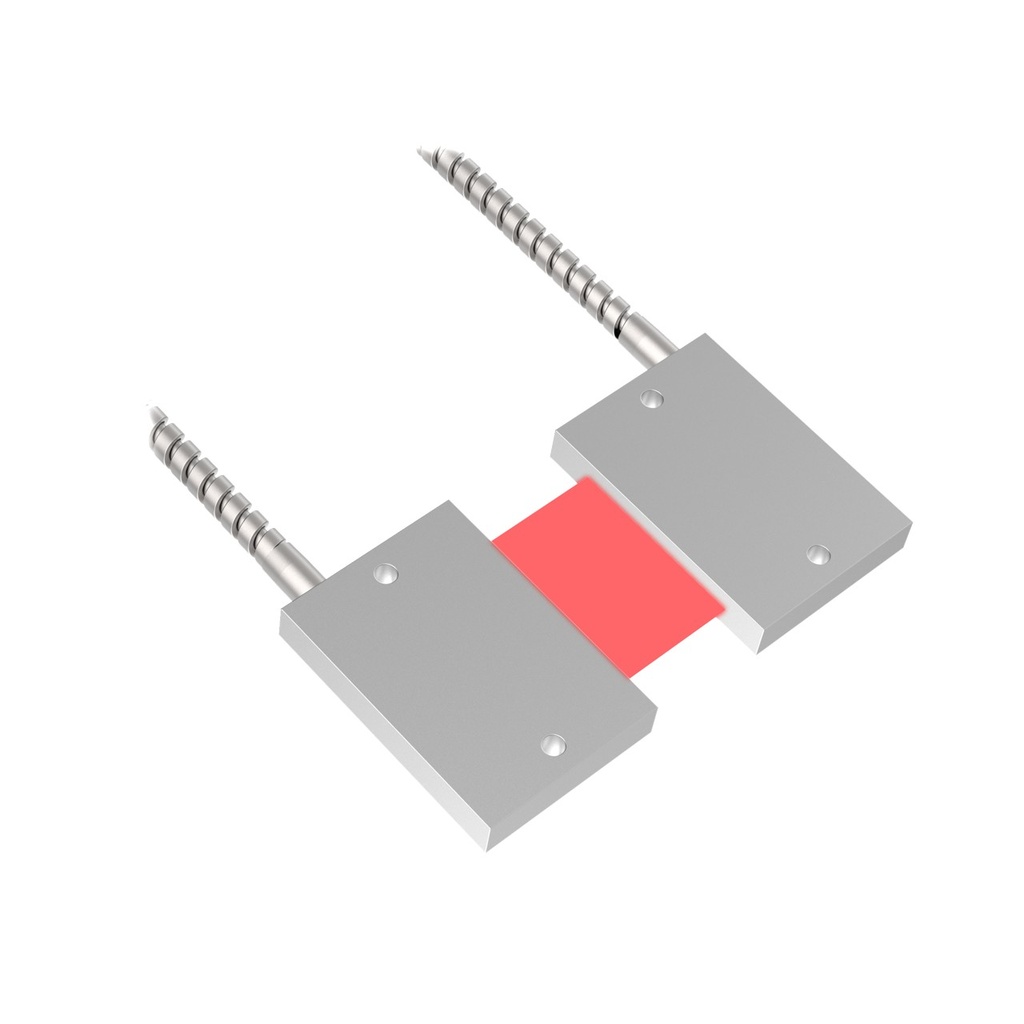

Opposed Mode Individual Glass Fiber 78 long (IR2.56.5SMRAMP)

https://www.branom.com/web/image/product.template/43283/image_1920?unique=c26756c
(0 review)

Features:

  • Opposed Mode Individual Glass Fiber 78 long
  • 0.156 dia. Bundle
  • Stainless Steel Sheath
  • Rectangular sensing tip
  • side exit
  • Max Operating Temperature: 249 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Array
  • Sensing Mode (General): Opposed
  • Array Length: 38.1 mm
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 10652.9 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: Yes
  • Fiber Sensing End Size: 63.5 x 44.5 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Array
  • Termination: Terminated
  • Sensing End Material (Specific): Aluminum
  • Feature: Integrated Lens: Yes
  • Core Diameter: 4 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Glass Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 63.5 x 44.5 mm
  • Fiber Length: 0.914 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Sideview
  • Sensing End Segment 3: Array
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 441.00 441.0 USD $ 441.00

$ 441.00

Not Available For Sale
