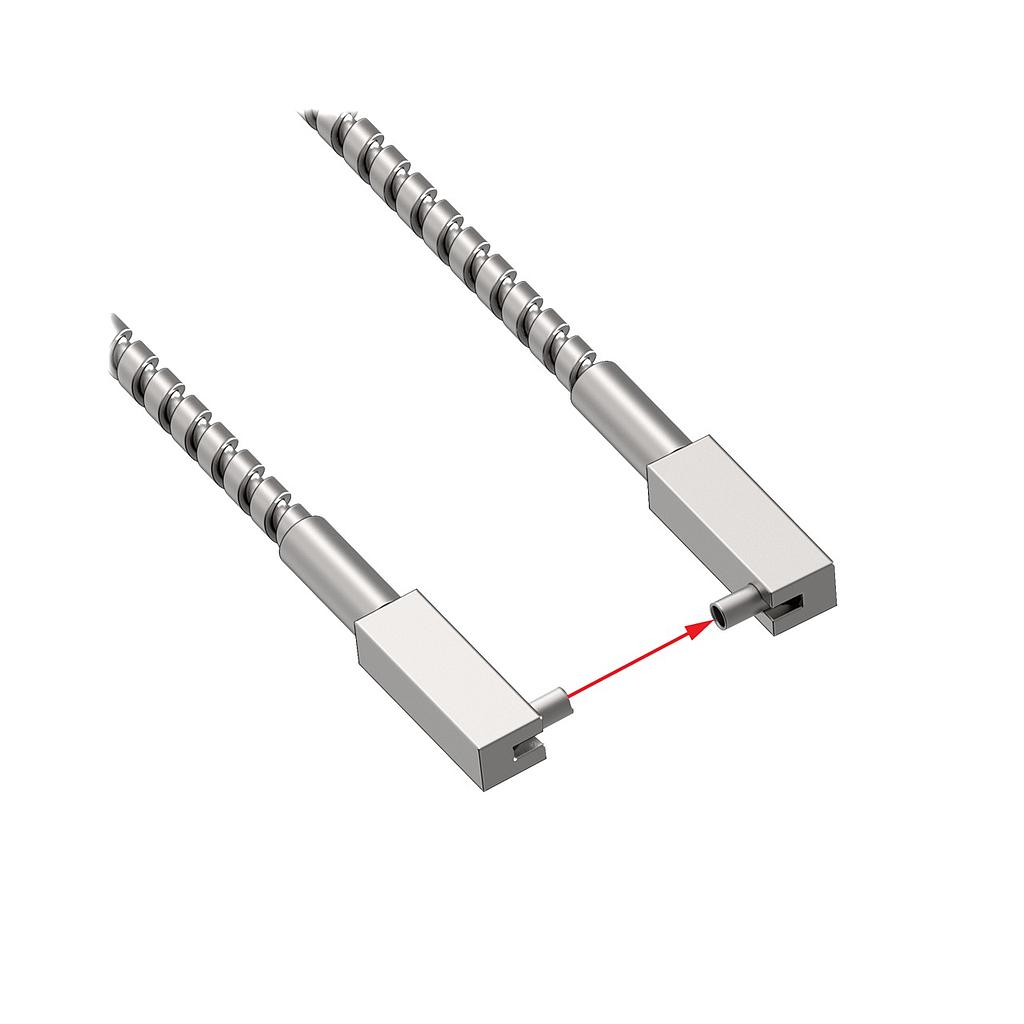

Glass Fiber (IA.81.5ST5ETAMT)

https://www.branom.com/web/image/product.template/41809/image_1920?unique=c26756c
(0 review)

Features:

  • Glass Fiber
  • Individual .05 in. Bundle
  • Tight Right Angle Tip
  • Stainless Sheathing 18 Inches Long
  • Stainless Terminated For Plastic Fiber Sensors excluding D10
  • Max Operating Temperature: 249 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Ferrule
  • Tariff Fiber Meters: 238.6 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 2.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Sideview
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.3 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 5.0 mm
  • Fiber Length: 0.457 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Sideview
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm
