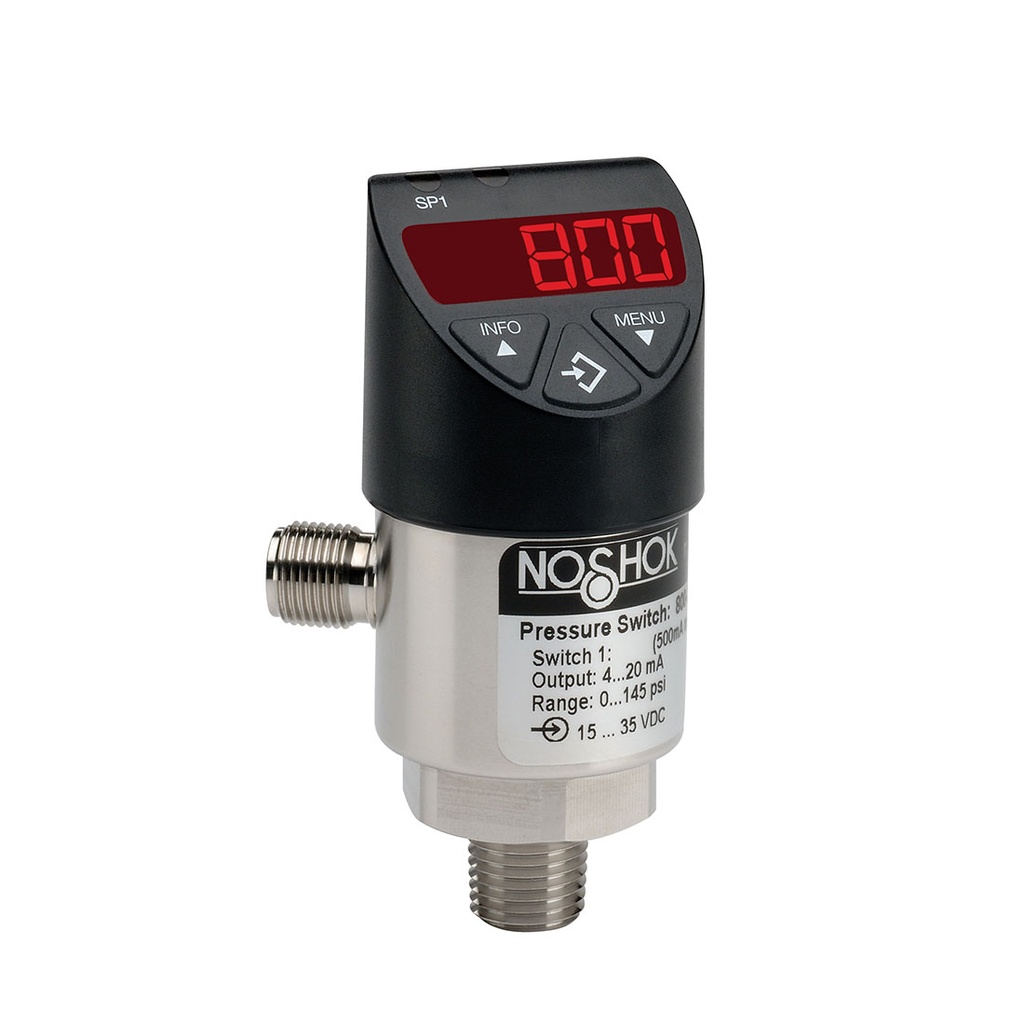

800 Series Electronic Indicating Pressure Transmitter/Switch, 0 psig to 7,500 psig
- Compound and standard ranges from 0 psig to 10 psig through 0 psig to 7,500 psig
- 316L Stainless Steel wetted parts
- Current and voltage outputs available
Applications:
- Hydraulics & pneumatics
- Power generation
- Pumps & compressors
- Stamping & forming presses
- Water & wastewater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Compound and standard ranges from 0 psig to 10 psig through 0 psig to 7,500 psig
- 316L Stainless Steel wetted parts
- Current and voltage outputs available
Applications:
- Hydraulics & pneumatics
- Power generation
- Pumps & compressors
- Stamping & forming presses
- Water & wastewater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 7500.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | 0 psig to 7,500 psig |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 7500 psig |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 1/4" |
| Accuracy | ≤0.5 % of span |
| Case Material | 304 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 15-35 VDC |
| Ingress Protection | IP67 |

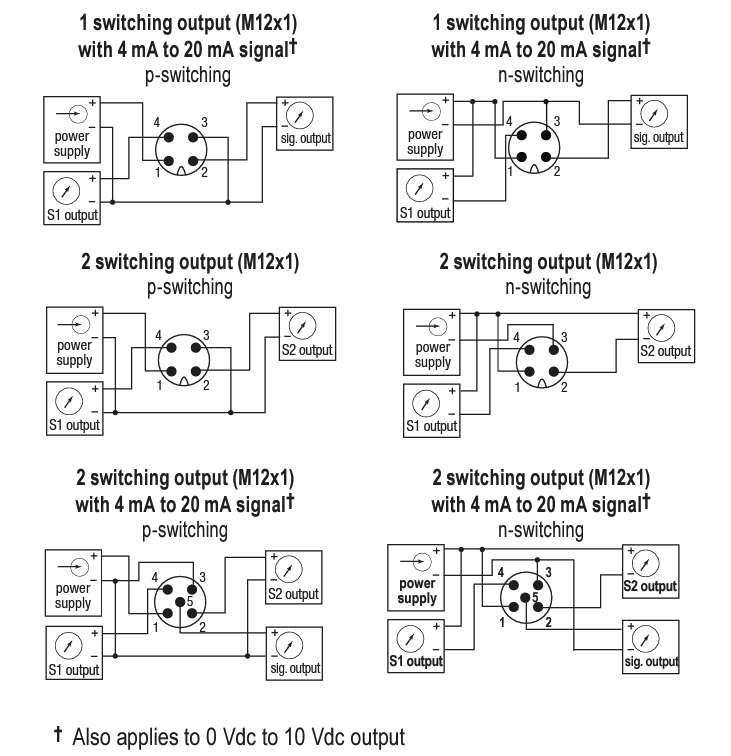

| Switch Function | 2 N.O. or N.C. (PNP or NPN) with 4 mA to 20 mA analog output |
| Response Time | ≤5 ms |
| Electrical Connector Type | M12 x 1 (5-pin) |
