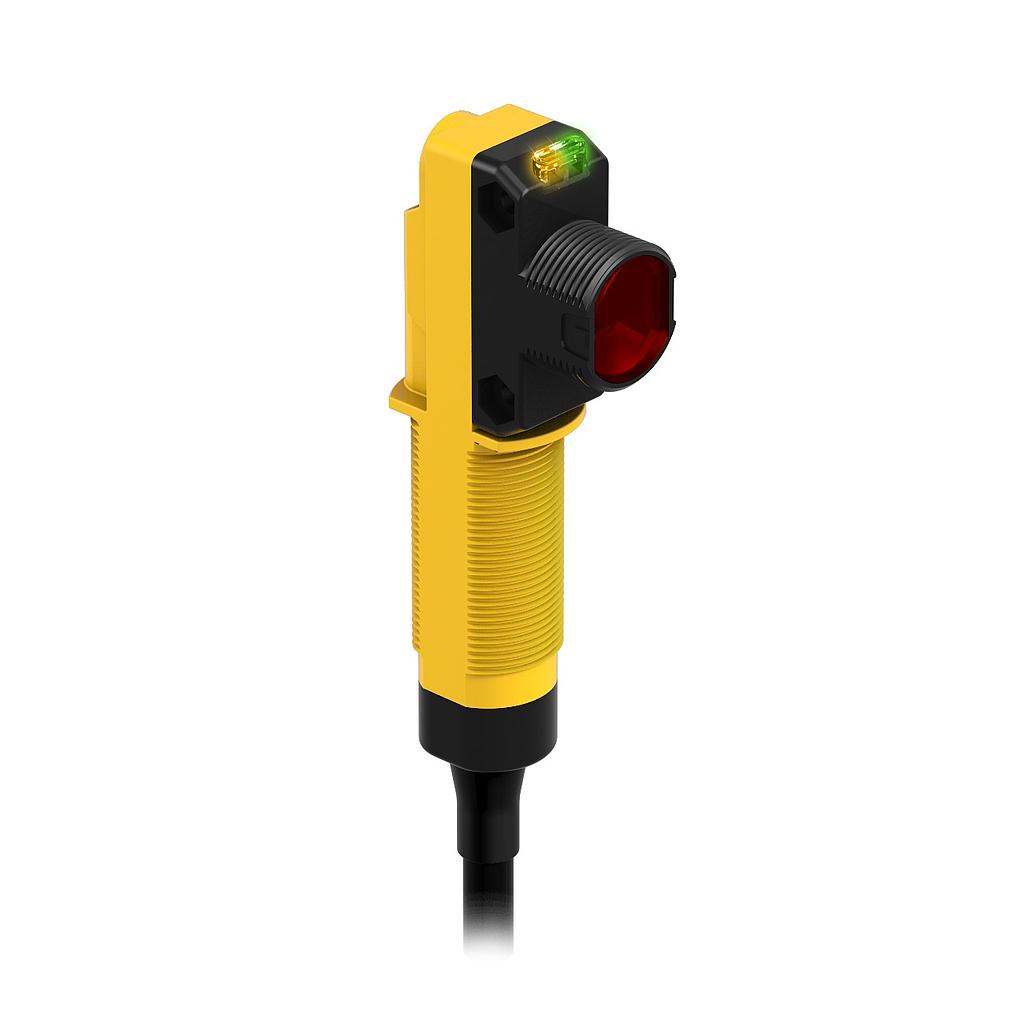

Representative photo. Please check item description for details.

WORLD-BEAM QS18 Series: Receiver (QS18APWR W/30)

https://www.branom.com/web/image/product.template/41535/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Series: Receiver
  • Range: 20 m
  • Input: 20-140 V ac/dc
  • Output: Light Operate Solid State P-MOSFET
  • 9 m (30 ft) Cable
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: PMMA
  • Power Supply: 20-140 VAC/VDC
  • Delay at Power-Up: 100 ms DC / 300 ms AC
  • Ingress Protection: IP67
  • Repeatability (µs): 1500
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 16.6 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 9 m
  • Indicator Type: LED

$ 164.00 164.0 USD $ 164.00

$ 164.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
