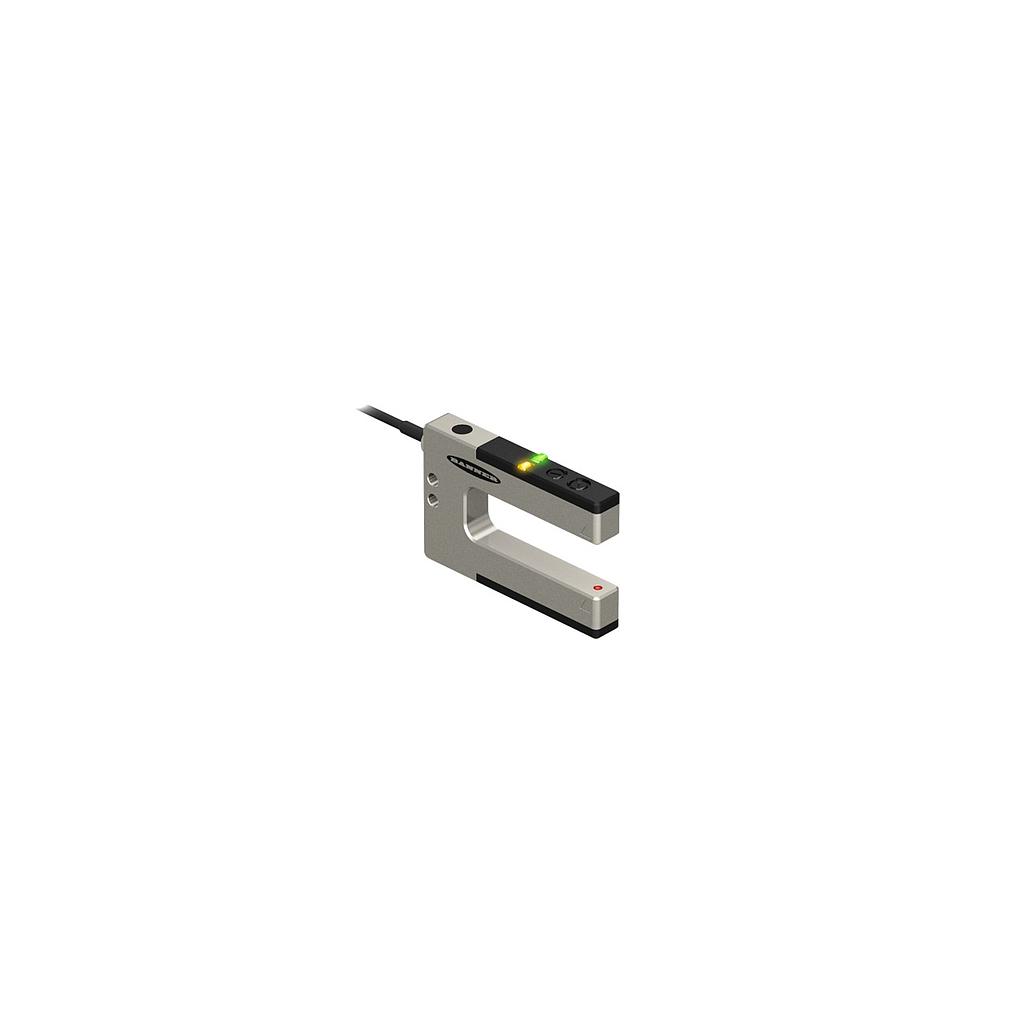

SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor (SLM20B6)

https://www.branom.com/web/image/product.template/41422/image_1920?unique=c26756c
(0 review)

Features:

  • SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor
  • Slot Width: 20 mm
  • Input: 10-20V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • 2 m (6.5 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 95
  • Housing Style: Slot
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Max Relative Humidity: 95% @ 55 °C
  • Feature: Quick Disconnect: No
  • Number of Pins: 4
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Remote Teach: No
  • Min Object Detection: 0.3 mm
  • Connection: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
  • Max Sensing Range: 20 mm
  • Slot Depth/Array Length (mm): 60.8
