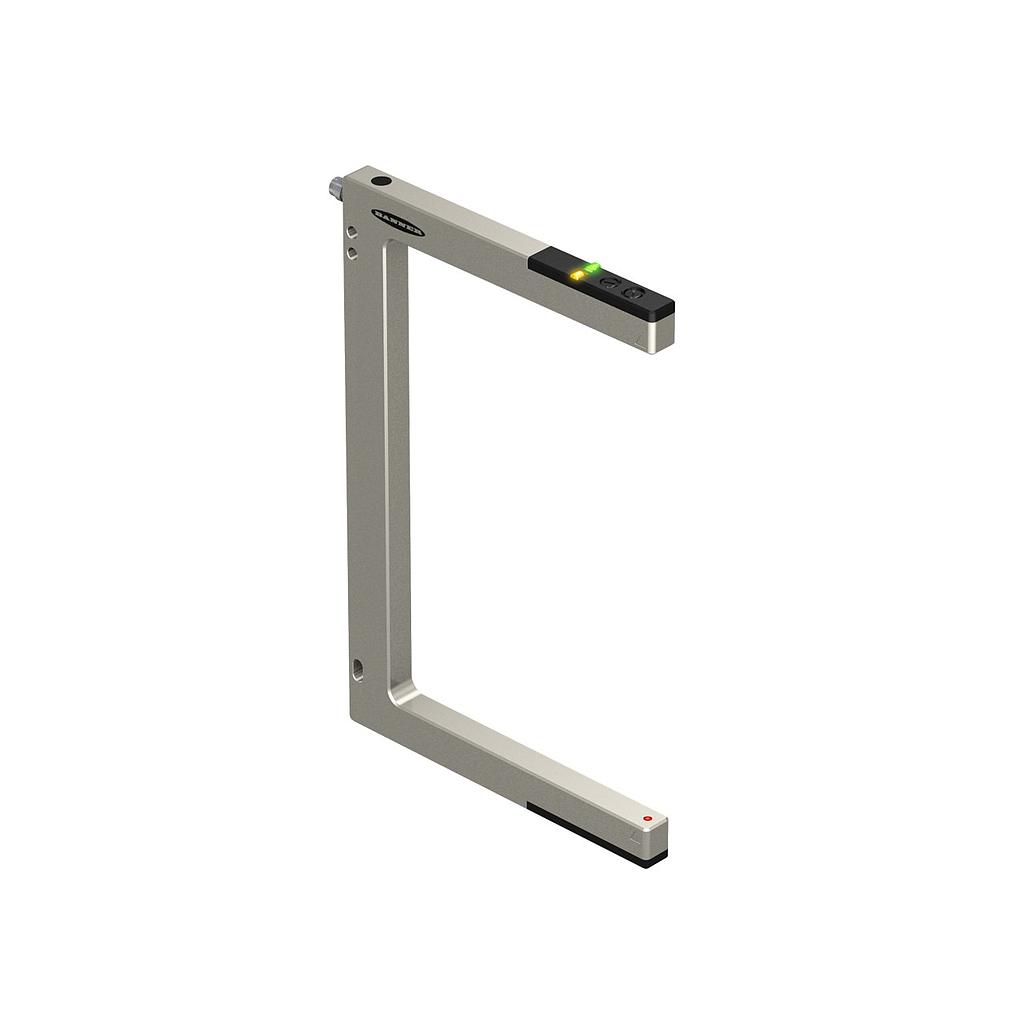

SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor (SLM180P6Q)

https://www.branom.com/web/image/product.template/41420/image_1920?unique=c26756c
(0 review)

Features:

  • SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor
  • Slot Width: 180 mm
  • Input 10-30 V dc
  • Output: PNP
  • Integral Pico Quick Disconnect
  • 3 pin
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 95
  • Housing Style: Slot
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Max Relative Humidity: 95% @ 55 °C
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M8 (Pico)
  • Number of Pins: 3
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Remote Teach: No
  • Min Object Detection: 0.9 mm
  • Connection: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
  • Max Sensing Range: 180 mm
  • Slot Depth/Array Length (mm): 120.7

$ 228.00 228.0 USD $ 228.00

$ 228.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor
    • Slot Width: 180 mm
    • Input 10-30 V dc
    • Output: PNP
    • Integral Pico Quick Disconnect
    • 3 pin
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 95
    • Housing Style: Slot
    • Sensing Mode (Detailed): Emitter/Receiver Pair
    • Max Relative Humidity: 95% @ 55 °C
    • Feature: Quick Disconnect: Yes
    • Quick Disconnect Type: M8 (Pico)
    • Number of Pins: 3
    • Output Response Time: 0.5 ms
    • Operation: Light/Dark Operate
    • Adjustments: Potentiometer
    • Feature: Remote Teach: No
    • Min Object Detection: 0.9 mm
    • Connection: Integral QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
    • Max Sensing Range: 180 mm
    • Slot Depth/Array Length (mm): 120.7
