World-Beam Qs18 Series: Laser Class 1 (QS186LEQ3-79195)

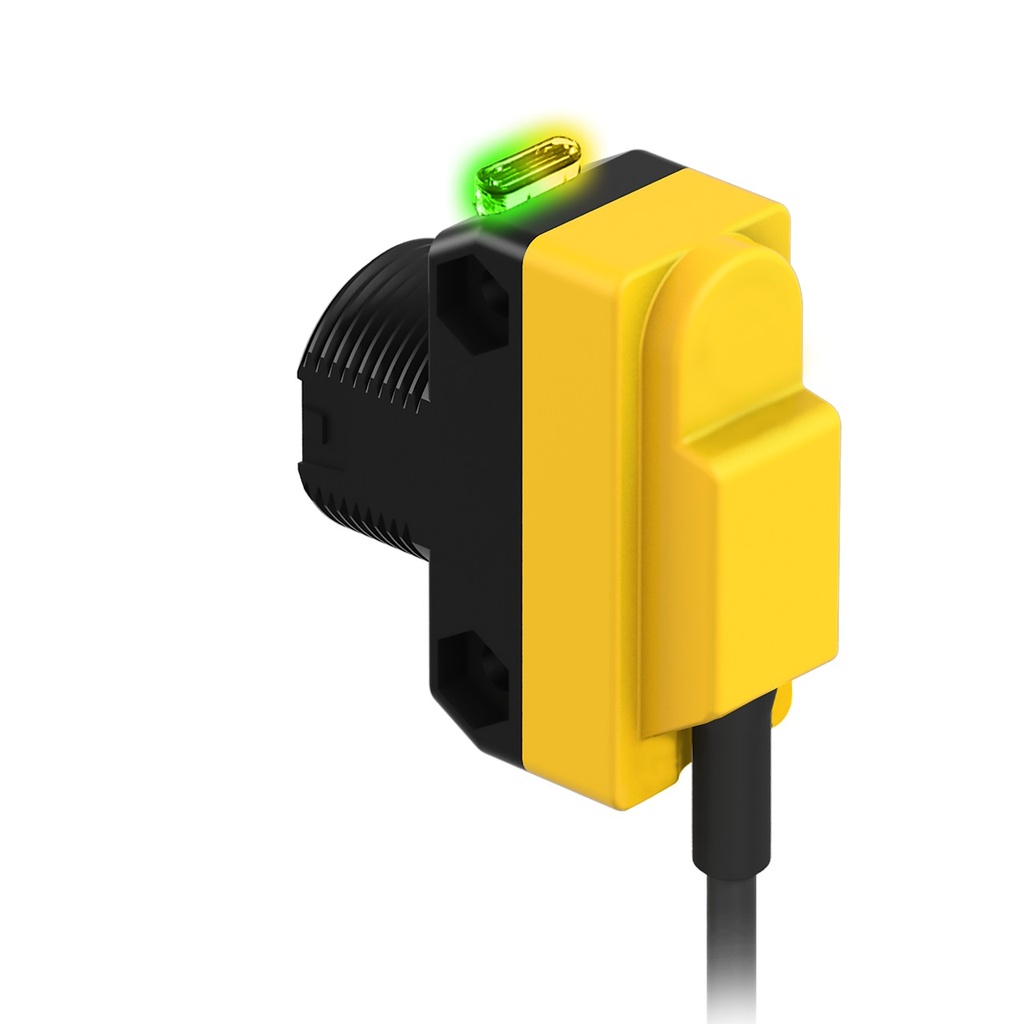

Representative photo. Please check item description for details.

World-Beam Qs18 Series: Laser Class 1 (QS186LEQ3-79195)

https://www.branom.com/web/image/product.template/204264/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: Laser Class 1; Range: 30 m; Input: 10-30V dc; Not applicable
  • No outputs; Pico 3-pin 60 in pigtail 83006201
    • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 250 ms
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 15000 mm
  • Sensing Mode (Detailed): Laser Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Laser Classification: Class 1
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 1.5 m
  • Indicator Type: LED

$ 158.00 158.0 USD $ 158.00

$ 158.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WORLD-BEAM QS18 Series: Laser Class 1; Range: 30 m; Input: 10-30V dc; Not applicable
    • No outputs; Pico 3-pin 60 in pigtail 83006201
      • Min Operating Temperature: -10 °C
    • Max Operating Temperature: 50 °C
    • Lens Material: PMMA
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 250 ms
    • Ingress Protection: IP67
    • Sensing Beam: Visible Red Laser
    • Sensing Beam Wavelength: 650
    • Housing Style: Rectangular w/M18 Mount
    • Max Sensing Distance: 15000 mm
    • Sensing Mode (Detailed): Laser Emitter
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: ABS
    • Laser Classification: Class 1
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M8
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Emitter
    • Feature: Water Detection: No
    • Number of Pins: 3
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Small Visible Spot: Laser
    • Feature: Encapsulated: No
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Pigtail QD
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 1.5 m
    • Indicator Type: LED
