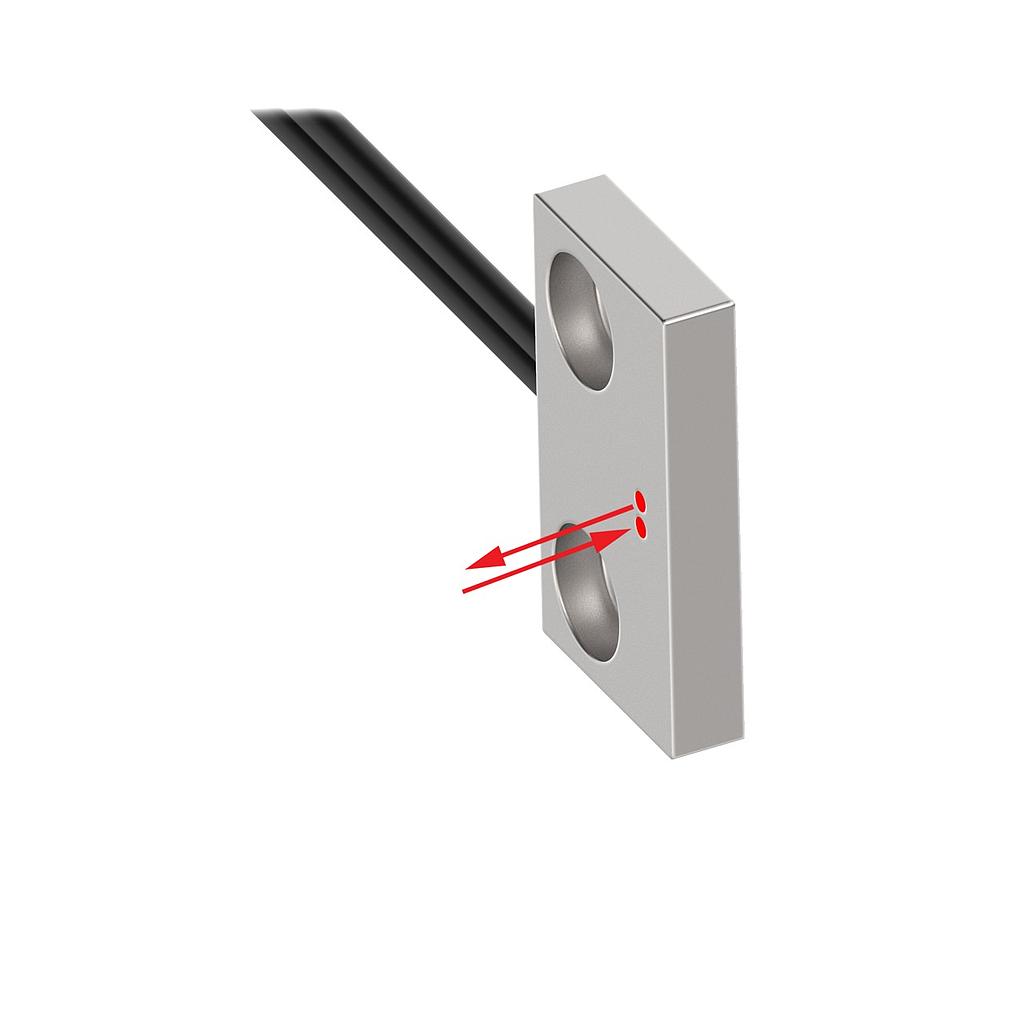

Plastic Fiber (PBA23UHFM13X7)

https://www.branom.com/web/image/product.template/40177/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber
  • Diffuse Mode
  • Core Dia.: 0.5 mm
  • Fiber Length 1 m
  • Angle
  • Stainless Flat Pack Housing
  • 13 mm X 7 mm
  • DuraBend
  • Free Cut
  • Max Operating Temperature: 70 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 2 fbm
  • Measured Max Distance: 32 mm
  • Min Bend Radius: 1 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 13.0 x 7.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Sideview
  • Termination: Free Cut
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 0.5 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: Yes
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 13.0 x 7.0 mm
  • Fiber Length: 1 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Sideview
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 100mm to <= 500mm
  • Min Hinged Door Size: 1 mm
  • Min Repeat Bending Endurance: 2000
  • Max Distance: DF-G1: 32 mm
  • Max Distance: DF-G3: 250 mm
  • Max Distance: DF-G2: 52 mm
  • Minimum Bend Radius: 1 mm

$ 196.00 196.0 USD $ 196.00

$ 196.00

Not Available For Sale

    This combination does not exist.
