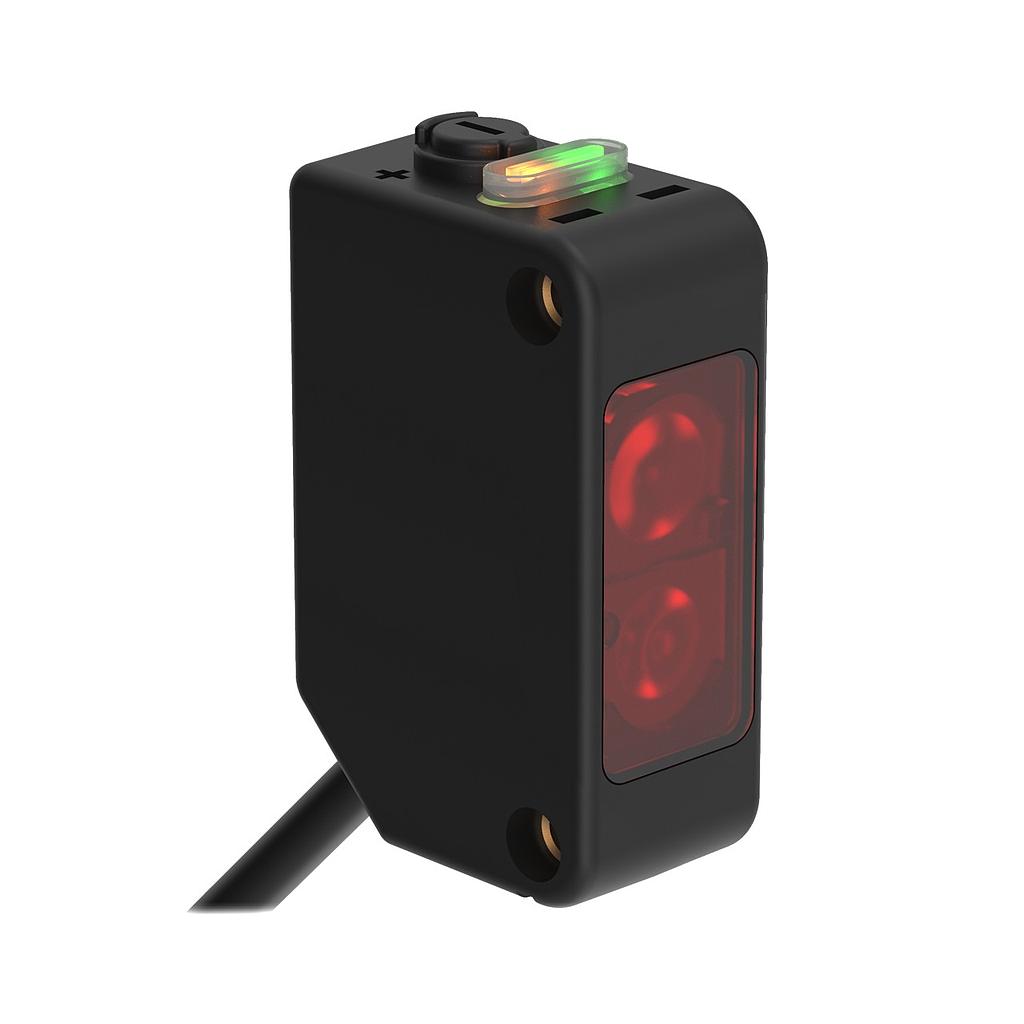

WORLD-BEAM Q20 Series: Polarized Retro (Q20PLP W/30)

https://www.branom.com/web/image/product.template/39780/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM Q20 Series: Polarized Retro
  • Range: 4 m
  • Input 10-30V dc
  • Output: Complementery Solid State PNP
  • 9 m (30 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Rectangular
  • Max Sensing Distance: 4000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 9 m
  • Indicator Type: LED

$ 138.00 138.0 USD $ 138.00

$ 138.00

Not Available For Sale
