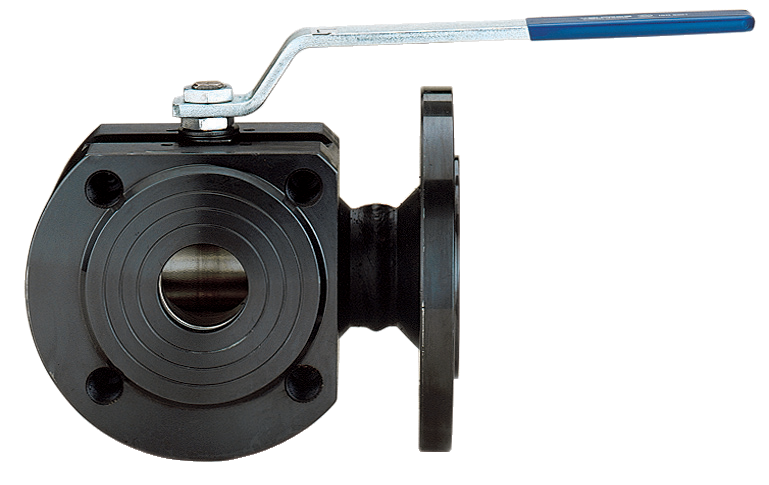

Representative photo. Please check item description for details.
776032 Split-Body Series Carbon Steel Flanged ANSI 150 3-Way L-Ported Diverter Ball Valve w/ ISO 5211 Pad and Double "D" Stem
776032 (L) Split-Body Series Compact design, carbon steel, ANSI class 150 flanged 3-way ball valve. stainless steel ball and stem.
Features
- 3-way, diverter, two seats, L reduced port.
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- 100% tested.
- TUV T.A. Luft approved.
- ISO 5211 mounting pad with double “D” stem.
776032 (L) Split-Body Series Compact design, carbon steel, ANSI class 150 flanged 3-way ball valve. stainless steel ball and stem.
Features
- 3-way, diverter, two seats, L reduced port.
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- 100% tested.
- TUV T.A. Luft approved.
- ISO 5211 mounting pad with double “D” stem.
Specifications
| Valve Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6" |
