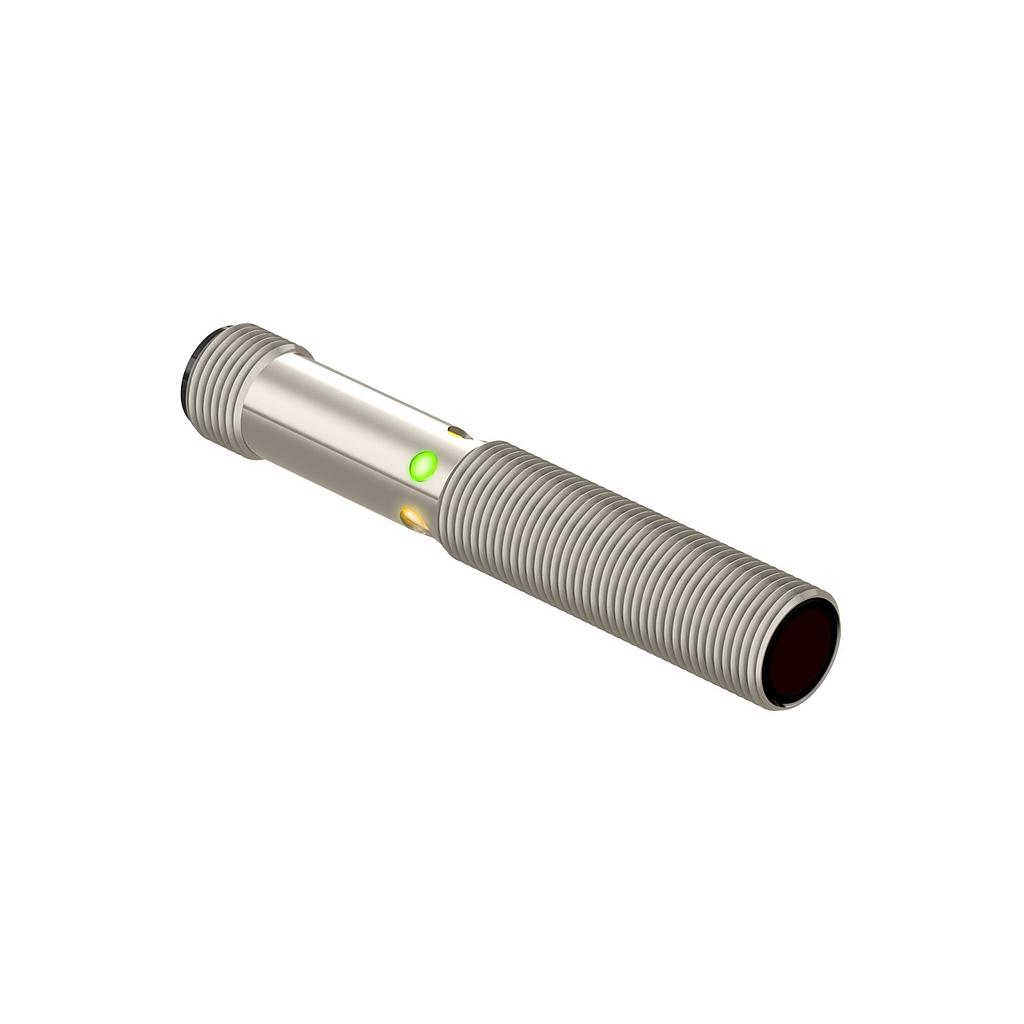

Representative photo. Please check item description for details.

M12 Series: Fixed Field (Red) (M12NFF25Q8)

https://www.branom.com/web/image/product.template/39524/image_1920?unique=c26756c
(0 review)

Features:

  • M12 Series: Fixed Field (Red)
  • Range: 25 mm
  • Input 10-30V dc
  • Output: Complementery Solid State NPN
  • Integral Euro-Style Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/68
  • Repeatability (µs): 95
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 680
  • Housing Style: Barrel
  • Max Sensing Distance: 25 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Nickel-Plated Brass
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 12 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 5/6
  • Indicator Type: LED

$ 153.00 153.0 USD $ 153.00
