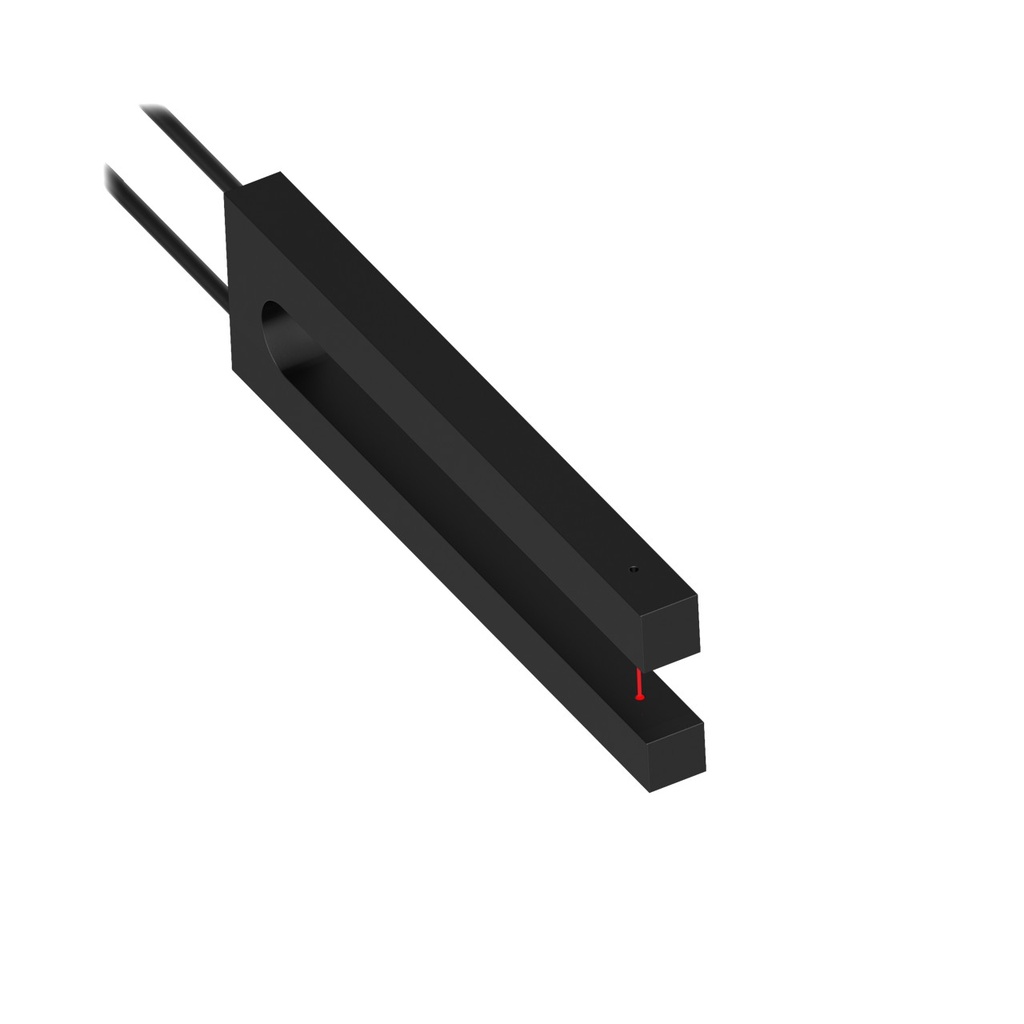

Plastic Fiber, Opposed Mode (PDIS41.7UHFMSW9.7)

https://www.branom.com/web/image/product.template/39389/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 1 mm
  • Fiber Length 0.51 m
  • Slot
  • Free cut
  • Max Operating Temperature: 70 °C
  • Housing Style: Slot
  • Sensing Mode (Detailed): Slot
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Slot
  • Tariff Fiber Meters: 1 fbm
  • Min Bend Radius: 2 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 25.7 x 83.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Slot
  • Termination: Free Cut
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 25.7 x 83.0 mm
  • Fiber Length: 0.508 m
  • Fiber Optic Type: Plastic
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 2 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Slot Width: 10.2 mm
  • Minimum Bend Radius: 2 mm
