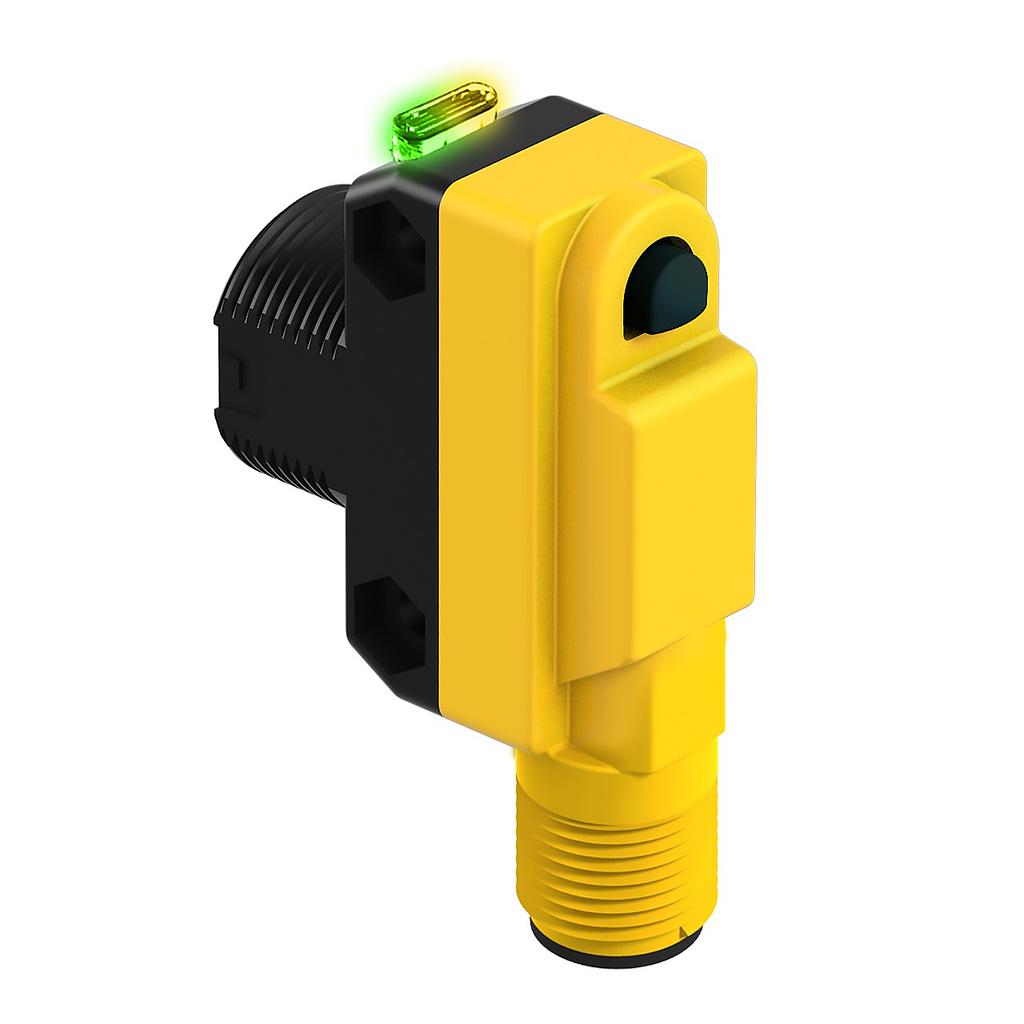

Representative photo. Please check item description for details.

50-100MM NC (QS18UNAQ8-76772)

Features:

QS18UNAQ8-76772 50-100MM NC
Max Off-State Leakage Current (µA): <10 µA (NPN) / <5 µA (PNP)
Min Operating Temperature: -20 °C
Max Operating Temperature: 60 °C
Power/Current Consumption (exclusive of load): 25 mA max
Power Supply: 12-30 VDC
Temperature Effect (mm/°C): #ERROR!
Delay at Power-Up: 300 ms
Ingress Protection: IP67
Housing Style: Rectangular w/M18 Mount
Max Sensing Distance: 500 mm
Feature: RS-232: No
Feature: RS-485: No
RS-422: No
Feature: Washdown Rated: Yes
Feature: IO Link: No
Feature: Wireless: No
Feature: Quick Disconnect: Yes
Quick Disconnect Type: M12 (Euro)
Max Op. Relative NC Humidity: 100%
Feature: Chemical Resistant: No
Number of Pins: 4
Adjustments: Teach Button
Feature: Timing (Hold/Delay): No
Barrel Diameter: 18
Min Response Time: 15 ms
Output Saturation Voltage PNP Outputs: < 2.0 V @ 100 mA
Max Discrete (Switched) Output (mA): 100
Min Sensing Distance: 50 mm
Min Window Size: 5 mm
Discrete (Switched) Outputs: 1 NPN
Max Measurement Range: 100-500 mm
Output Protection: Protected against short circuit conditions
SSI: No
Profibus: No
Feature: Remote Teach: Yes
Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
Connection: Integral QD
NEMA / UL: NEMA 6P
Feature: Common Ethernet Protocol: No
Feature: PC Configurable: No
Indicator Type: LED
Rep Rate: 7.5 ms
Discrete Output Hysteresis: 1.4 mm
Ultrasonic Frequency: 300 kHz

This combination does not exist.

Features:

QS18UNAQ8-76772 50-100MM NC
Max Off-State Leakage Current (µA): <10 µA (NPN) / <5 µA (PNP)
Min Operating Temperature: -20 °C
Max Operating Temperature: 60 °C
Power/Current Consumption (exclusive of load): 25 mA max
Power Supply: 12-30 VDC
Temperature Effect (mm/°C): #ERROR!
Delay at Power-Up: 300 ms
Ingress Protection: IP67
Housing Style: Rectangular w/M18 Mount
Max Sensing Distance: 500 mm
Feature: RS-232: No
Feature: RS-485: No
RS-422: No
Feature: Washdown Rated: Yes
Feature: IO Link: No
Feature: Wireless: No
Feature: Quick Disconnect: Yes
Quick Disconnect Type: M12 (Euro)
Max Op. Relative NC Humidity: 100%
Feature: Chemical Resistant: No
Number of Pins: 4
Adjustments: Teach Button
Feature: Timing (Hold/Delay): No
Barrel Diameter: 18
Min Response Time: 15 ms
Output Saturation Voltage PNP Outputs: < 2.0 V @ 100 mA
Max Discrete (Switched) Output (mA): 100
Min Sensing Distance: 50 mm
Min Window Size: 5 mm
Discrete (Switched) Outputs: 1 NPN
Max Measurement Range: 100-500 mm
Output Protection: Protected against short circuit conditions
SSI: No
Profibus: No
Feature: Remote Teach: Yes
Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
Connection: Integral QD
NEMA / UL: NEMA 6P
Feature: Common Ethernet Protocol: No
Feature: PC Configurable: No
Indicator Type: LED
Rep Rate: 7.5 ms
Discrete Output Hysteresis: 1.4 mm
Ultrasonic Frequency: 300 kHz
