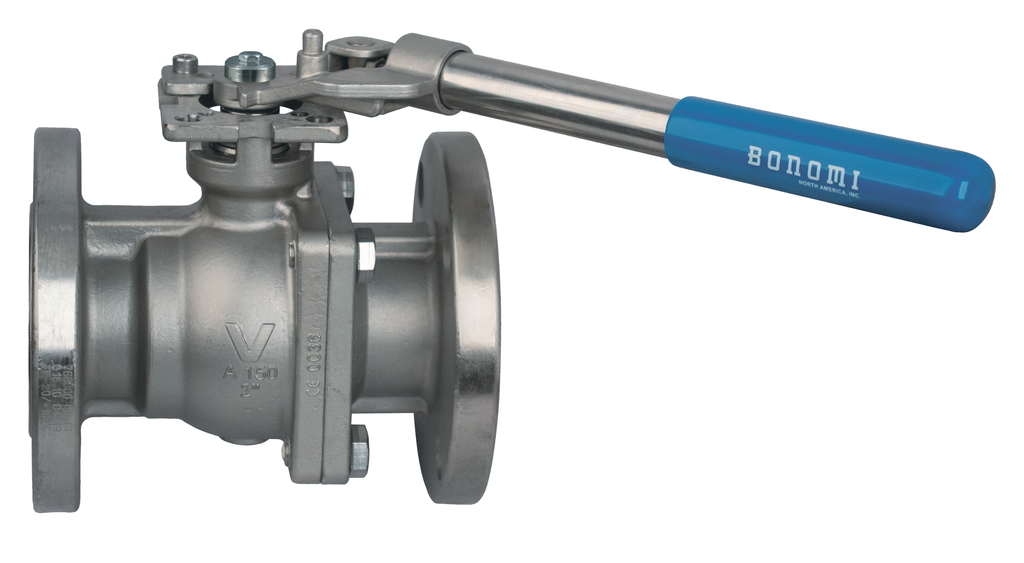

766000SRL Split-Body Series Stainless Steel Flanged ANSI 150 Split-Body, Full Port Ball Valve w/ Spring Return Handle and ISO 5211 Direct Mounting Pad
Representative photo. Please check item description for details.

766000SRL Split-Body Series Stainless Steel Flanged ANSI 150 Split-Body, Full Port Ball Valve w/ Spring Return Handle and ISO 5211 Direct Mounting Pad

https://www.branom.com/web/image/product.template/534754/image_1920?unique=c26756c
(0 review)

766000 SRL Split-Body Series deadman spring lever, Split Body style, ANSI 150 class flanged raised face stainless steel ball valve, full port.

Features

  • ISO 5211 mounting pad and stem.
  • Blowout proof stem.
  • Standard grounded ball & stem.
  • Certified to API 607 and API 6FA.
  • Designed to ANSI 16.5, 16.10, 16.34.
  • TUV T.A. Luft approved.
  • NACE MR 0175.

$ 518.95 518.95 USD $ 518.95

$ 518.95

Not Available For Sale

  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

766000 SRL Split-Body Series deadman spring lever, Split Body style, ANSI 150 class flanged raised face stainless steel ball valve, full port.

Features

  • ISO 5211 mounting pad and stem.
  • Blowout proof stem.
  • Standard grounded ball & stem.
  • Certified to API 607 and API 6FA.
  • Designed to ANSI 16.5, 16.10, 16.34.
  • TUV T.A. Luft approved.
  • NACE MR 0175.

Specifications

Valve Size 1", 1-1/2", 2"
