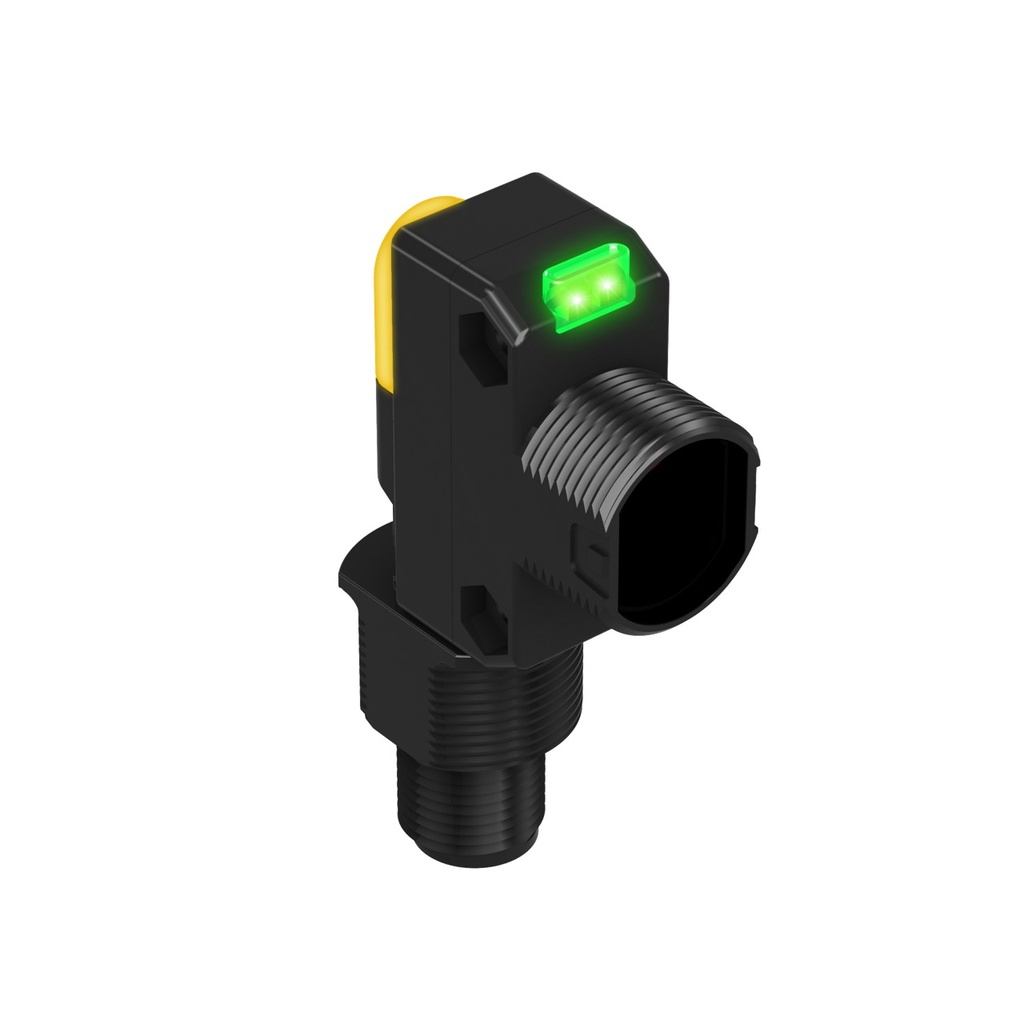

Representative photo. Please check item description for details.

EURO QD EMITTER (DS186EQ8)

https://www.branom.com/web/image/product.template/39231/image_1920?unique=c26756c
(0 review)

Features:

  • DS186EQ8 EURO QD EMITTER
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 940
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 58.00 58.0 USD $ 58.00

$ 58.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • DS186EQ8 EURO QD EMITTER
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Sensing Beam: Infrared LED
    • Sensing Beam Wavelength: 940
    • Housing Style: Rectangular w/M18 Mount
    • Max Sensing Distance: 20000 mm
    • Sensing Mode (Detailed): Emitter
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Emitter
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
