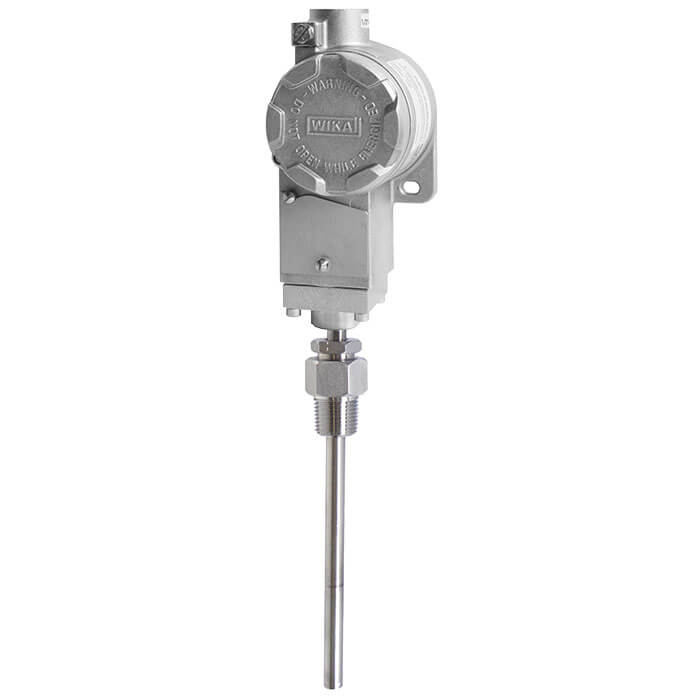

Wika Model TCA Compact Temperature Switch
Specifications according to data sheet: SP 08.65 (TCA)
Repeatability of set point: ≤ 1% of span
switch enclosure: stainless steel 316L
sensor: direct mounting
1xSPDT, silver contact, hermetically sealed with argon gas
10 ... 70 °C, working range -40 ... +70°C, proof temperature +90°C
Set Point not defined
process connection: 1/2 NPT male
electrical connection: 1/2 -14 NPT-F
standard direct or wall mounting, fixing bore on the case
Approvals / Certificates: with
Stem length for direct mounting: standard 125 mm
Sensor Dimensions: active length X = 65 mm, stem diameter D=9,5 mm
