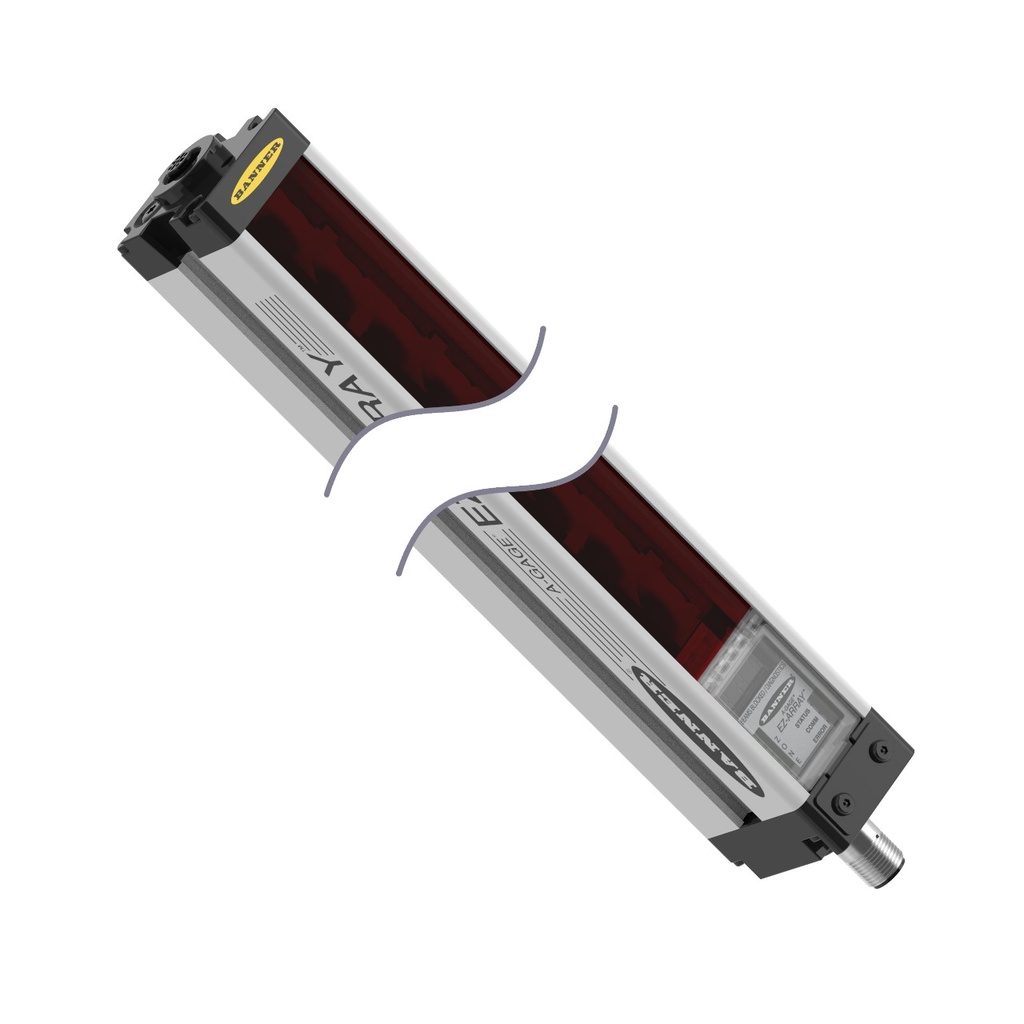

EZ-ARRAY Receiver: 1500 mm (59.1 in.) (EA5R1500NUXMODQ)

https://www.branom.com/web/image/product.template/37994/image_1920?unique=c26756c
(0 review)

Features:

  • EZ-ARRAY Receiver: 1500 mm (59.1 in.)
  • Range: (matching emitter sold separately) 400 mm
  • 4 m
  • Input: 12-30 V dc
  • Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485
  • Euro 8-pin Quick-Disconnect
    • Feature: Discrete Outputs: NPN
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 12-30 VDC
  • Sensing Mode (Detailed): Receiver
  • Beam Spacing: 5 mm
  • Device Type: Two-Piece
  • Housing Length: 1578 mm
  • Max Relative Humidity: 95%
  • Number of Beams: 300
  • Housing Material_: Aluminum
  • Feature: RS-485: Yes
  • Analog Output: 0 to 10 VDC
  • Feature: Modbus RTU: Yes
  • Array Length: 1500 mm
  • Quick Disconnect Type: M12
  • Discrete Outputs: NPN
  • Emitter/Receiver Range: 0.4 to 4 m

$ 2,531.00 2531.0 USD $ 2,531.00

$ 2,531.00

Not Available For Sale

    This combination does not exist.

    Contact Us
