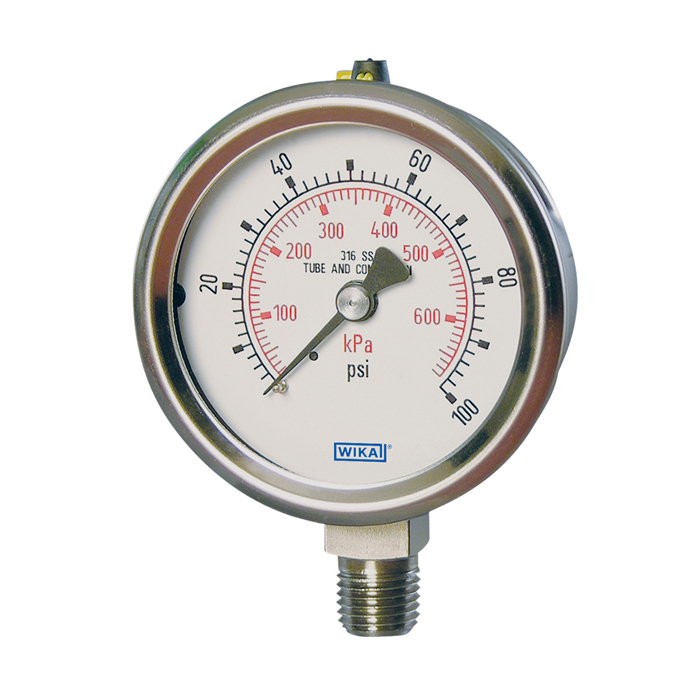

Representative photo. Please check item description for details.
Wika 233.53 Series Glycerin Filled Pressure Gauge, 2.5" Dial, -30 inHg to 0 psi, 1/4 NPT SS Lower Mount, Rear Flange
This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.
Applications
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
- Machine building and general plant construction
Features
- Model: 233.53.063
- Specifications according to data sheet: 23X.53 and 23X.54
- Nominal size: 2.5"
- Measuring System: Stainless Steel
- Case: Non-removable crimp ring
- Scale range: -30 inHg/0 psi
- Process Connection: 1/4 NPT
- Connector location: lower mount
- Mounting Flange/Bracket: Rear Flange, Stainless Steel
- Accuracy Class: +/- 2/1/2% (ASME B40.100 Grade A)
- Material pressure element: Measuring System 316 SS
- Case filling fluid: Glycerine
- Pointer: adjustable pointer
- Window: laminated safety glass
- Dial description:
- Pressure Gauge Standard: US-Standard
- color for 1.scale (outside): black
- dial background: White
- *WIKA®*
- serial number on dial: Serial number *...*
- stop pin on dial: at zero
This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.
Applications
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
- Machine building and general plant construction
Features
- Model: 233.53.063
- Specifications according to data sheet: 23X.53 and 23X.54
- Nominal size: 2.5"
- Measuring System: Stainless Steel
- Case: Non-removable crimp ring
- Scale range: -30 inHg/0 psi
- Process Connection: 1/4 NPT
- Connector location: lower mount
- Mounting Flange/Bracket: Rear Flange, Stainless Steel
- Accuracy Class: +/- 2/1/2% (ASME B40.100 Grade A)
- Material pressure element: Measuring System 316 SS
- Case filling fluid: Glycerine
- Pointer: adjustable pointer
- Window: laminated safety glass
- Dial description:
- Pressure Gauge Standard: US-Standard
- color for 1.scale (outside): black
- dial background: White
- *WIKA®*
- serial number on dial: Serial number *...*
- stop pin on dial: at zero
Specifications
| Gauge: Brand | Wika |
| Gauge: Product Unit of Measure | psi |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Process Connection Type | Rear Flange |
| Gauge: Case Material | Stainless Steel |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 233.53 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Dial Indicating Gauge |
