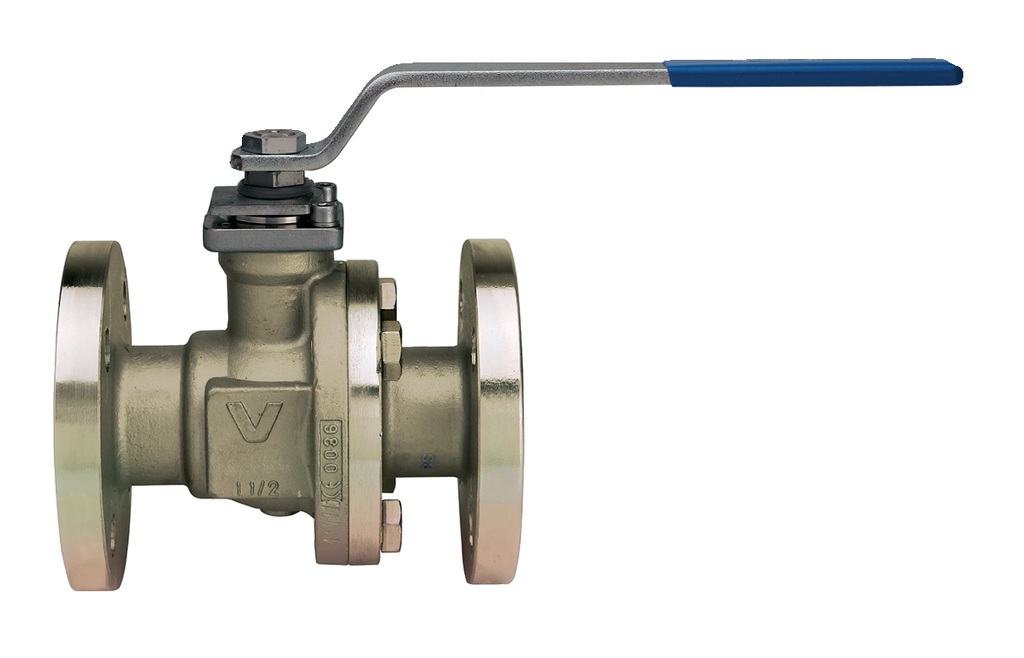

761031 / 760266 Split-Body Series Carbon Steel Flanged ANSI 300, Full Port, Split-Body Ball Valve, Fire Safe, Antistatic Device w/ ISO 5211 Pad and Double "D" Stem
Representative photo. Please check item description for details.

761031 / 760266 Split-Body Series Carbon Steel Flanged ANSI 300, Full Port, Split-Body Ball Valve, Fire Safe, Antistatic Device w/ ISO 5211 Pad and Double "D" Stem

https://www.branom.com/web/image/product.template/534820/image_1920?unique=c26756c
(0 review)

761031 / 760266  Split-Body Series carbon steel, ANSI class 300 flanged ball valve, full port.

Features

  • Blow-out proof stem, adjustable stem packing.
  • RTFE. seats, packing and thrust washer.
  • 100% tested.
  • PED 97/23/CE.
  • Locking handle plate.
  • Temperature range -4°F to 366°F.
  • ANSI B16.5 - B16.10 B16.34 design.
  • Fire Safe API 6FA-API 607.
  • Antistatic Device.
  • ISO 5211 mounting pad with double “D” stem.
  • Fugitive emissions tested to ISO 15848-1.

Model Details

  • 761031: sizes 1/2” to 8” (8” TRUNNION).
  • 760266: STEAM SERVICE TRIM - sizes 1/2” to 8”.

$ 301.74 301.74 USD $ 301.74

$ 301.74

Not Available For Sale

  • Model
  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

761031 / 760266  Split-Body Series carbon steel, ANSI class 300 flanged ball valve, full port.

Features

  • Blow-out proof stem, adjustable stem packing.
  • RTFE. seats, packing and thrust washer.
  • 100% tested.
  • PED 97/23/CE.
  • Locking handle plate.
  • Temperature range -4°F to 366°F.
  • ANSI B16.5 - B16.10 B16.34 design.
  • Fire Safe API 6FA-API 607.
  • Antistatic Device.
  • ISO 5211 mounting pad with double “D” stem.
  • Fugitive emissions tested to ISO 15848-1.

Model Details

  • 761031: sizes 1/2” to 8” (8” TRUNNION).
  • 760266: STEAM SERVICE TRIM - sizes 1/2” to 8”.

Specifications

Model [761031] Standard, [760266] for Steam
Valve Size 1/2", 3/4", 1", 1-1/2", 2", 3", 4", 6", 8", 1/2"‎ , 3/4"‎ , 1"‎ , 1-1/2"‎ , 2"‎ , 3"‎ , 4"‎ , 6"‎ , 8"‎
