  3. 760021V36-V6-V9 North America Series Split-Body V-Ball Stainless Steel Split-Body Flanged ANSI 150 30-60° V-ball valve
Public Pricelist (v2)
‎
760021V36-V6-V9 North America Series Split-Body V-Ball Stainless Steel Split-Body Flanged ANSI 150 30-60° V-ball valve

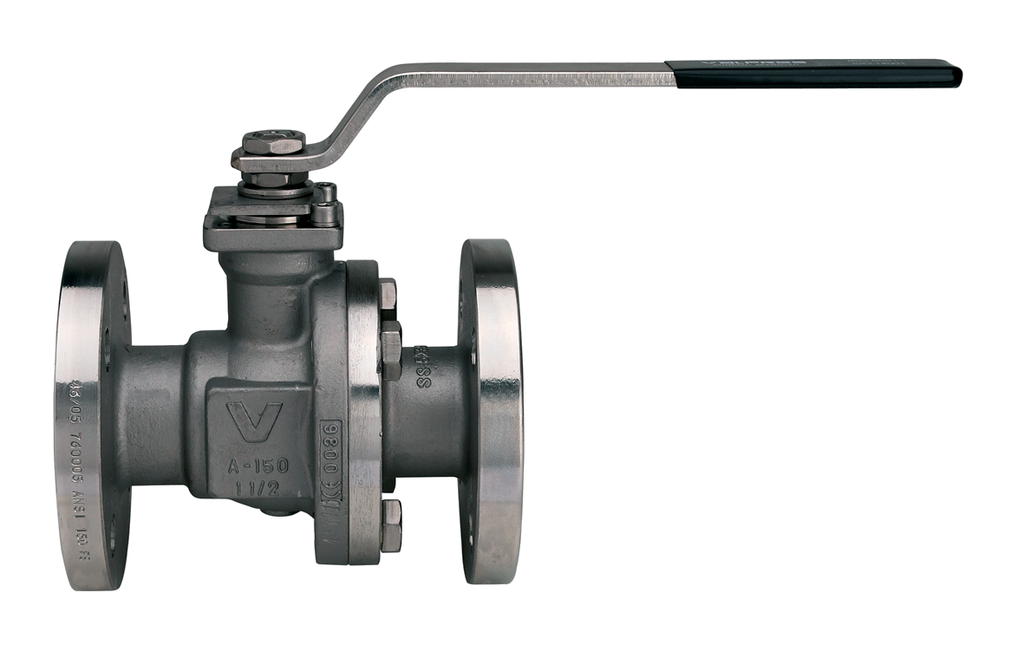

Representative photo. Please check item description for details.

760021V36-V6-V9 North America Series Split-Body V-Ball Stainless Steel Split-Body Flanged ANSI 150 30-60° V-ball valve

https://www.branom.com/web/image/product.template/534831/image_1920?unique=c26756c
(0 review)

760021V36-V6-V9 Split-Body V-Ball stainless steel, ANSI class 150 flanged ends V-ball valve 30-60, 60, 90 degrees V ports.

Features

  • Temperature range -4°F to 406°F.
  • Blow-out proof stem, adjustable stem packing.
  • RPTFE seats, packing and thrust washer.
  • Standard grounded stem and ball.
  • Thermal relief hole in the ball.
  • 100% tested.
  • PED 97/23/CE.
  • Locking handle plate.
  • ANSI B16.5, B16.10, B16.34 design.
  • Fire Safe API 6FA-API 607.
  • Antistatic Device.
  • ISO 5211 mounting pad and double “D" stem.

$ 310.30 310.3 USD $ 310.30

$ 310.30

Not Available For Sale

  • Model
  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

760021V36-V6-V9 Split-Body V-Ball stainless steel, ANSI class 150 flanged ends V-ball valve 30-60, 60, 90 degrees V ports.

Features

  • Temperature range -4°F to 406°F.
  • Blow-out proof stem, adjustable stem packing.
  • RPTFE seats, packing and thrust washer.
  • Standard grounded stem and ball.
  • Thermal relief hole in the ball.
  • 100% tested.
  • PED 97/23/CE.
  • Locking handle plate.
  • ANSI B16.5, B16.10, B16.34 design.
  • Fire Safe API 6FA-API 607.
  • Antistatic Device.
  • ISO 5211 mounting pad and double “D" stem.

Specifications

Model [760021V36] 30-60°, [760021V6] 60°, [760021V9] 90°
Valve Size 1/2", 3/4", 1", 1-1/2", 2", 3", 4", 6"
