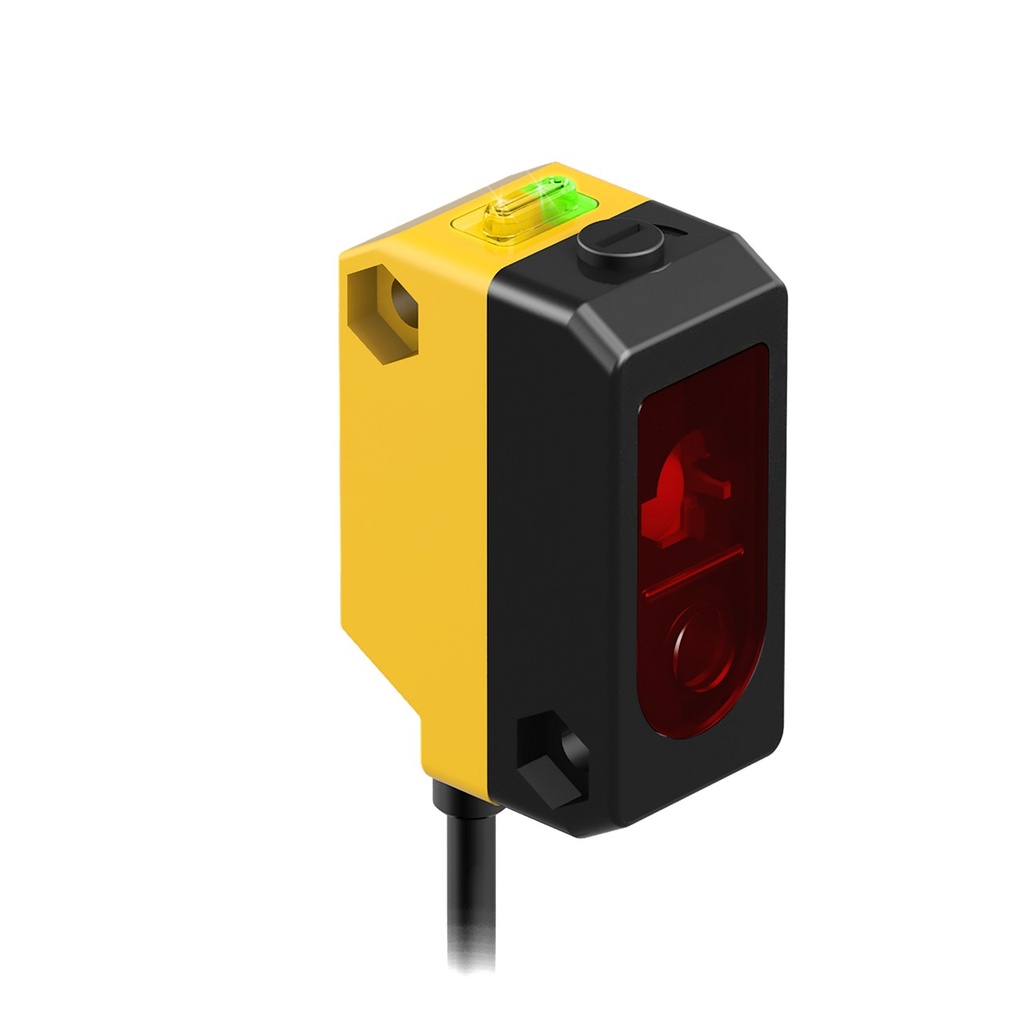

Representative photo. Please check item description for details.

WORLD-BEAM QS18 Laser Adjustable Field (QS18VN6LAF250)

https://www.branom.com/web/image/product.template/37780/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Laser Adjustable Field
  • Class 2 La
  • Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
  • Input:
  • Output: NPN
  • 2m Cable
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 200 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 130
  • Sensing Beam: Visible Red Laser
  • Sensing Beam Wavelength: 658
  • Housing Style: Rectangular
  • Max Sensing Distance: 250 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Laser Classification: Class 2
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.7 ms
  • Operation: Light/Dark Operate
  • Adjustments: Mechanical Screw
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 297.00 297.0 USD $ 297.00

$ 297.00

Not Available For Sale
