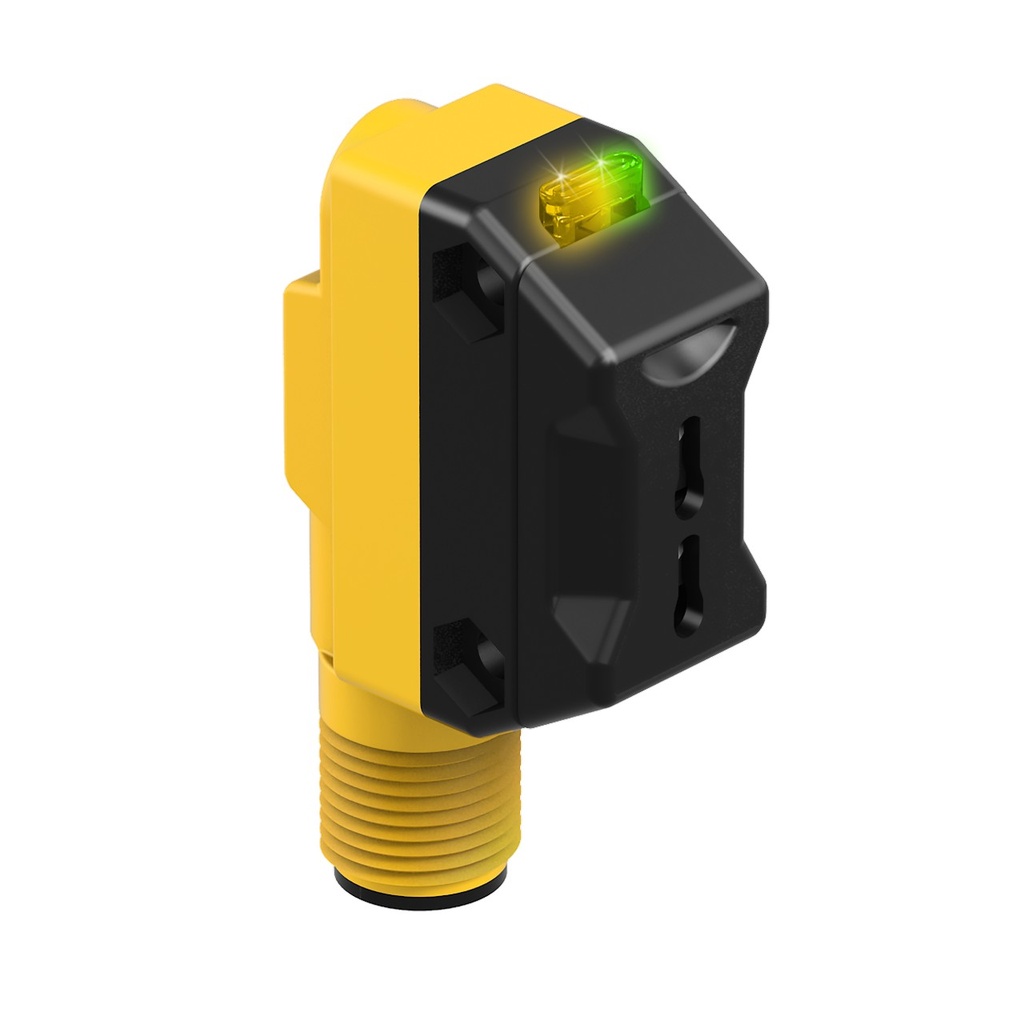

Representative photo. Please check item description for details.

WORLD-BEAM QS18 Expert Series (QS18EN6FPQ8)

https://www.branom.com/web/image/product.template/37773/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Expert Series
  • Plastic Fiber
  • Range: Vary by Mode & Fiber Optic use
  • Input 10-30
  • Output: NPN
  • Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 75
  • Housing Style: Rectangular
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Number of Pins: 4
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: .6 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Indicator Type: Indicator LED

$ 96.00 96.0 USD $ 96.00

$ 96.00

Not Available For Sale
