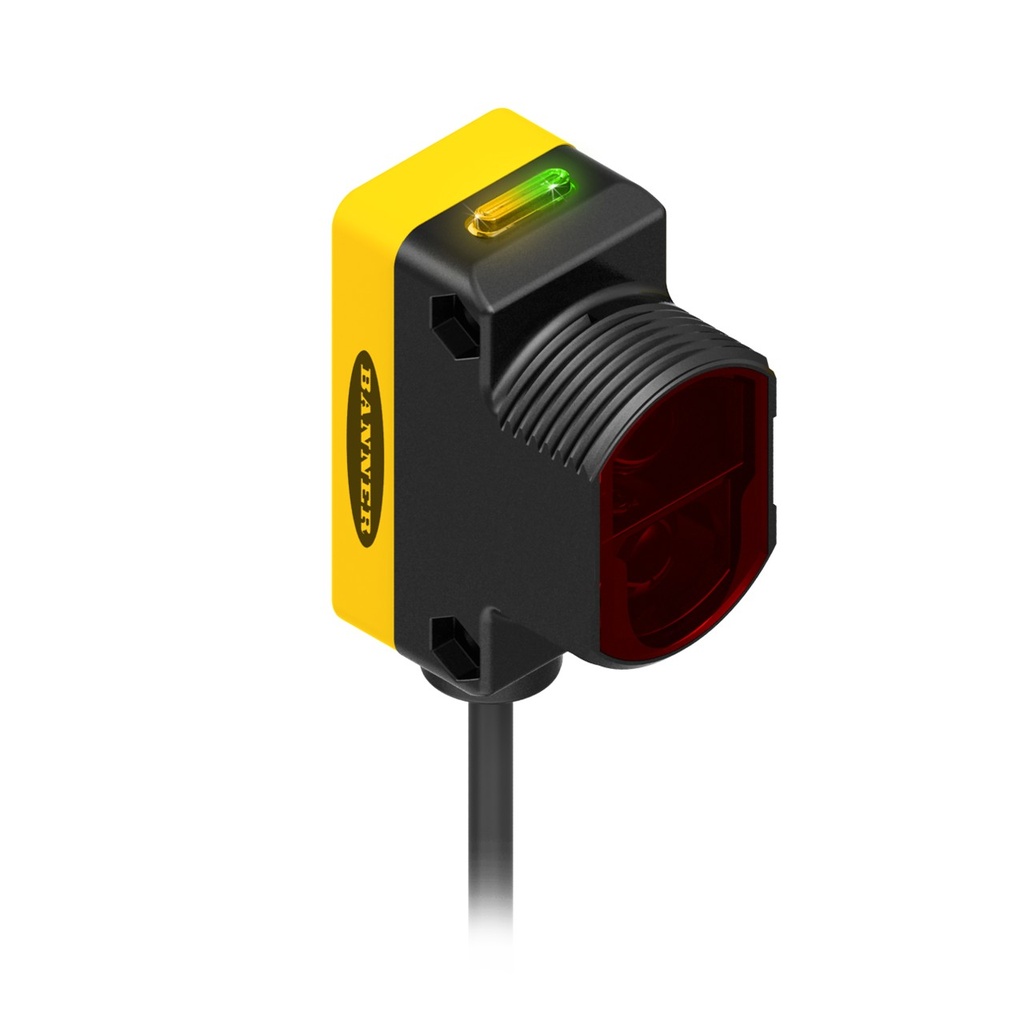

Representative photo. Please check item description for details.

WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam (QS30EDVQPMA)

https://www.branom.com/web/image/product.template/37762/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam
  • Range: High-Speed Mode: 1 100 mm
  • Normal: 1400 mm
  • Input: 10-30V dc
  • Output: Bipolar NPN/PNP
  • 6 in Pigtail 5-Pin Euro-Style Quick-Disconnect Connector
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 250 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100 to 150
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 1400 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 0.3 - 1.8 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail PUR QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: Bargraph

$ 242.00 242.0 USD $ 242.00

$ 242.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
