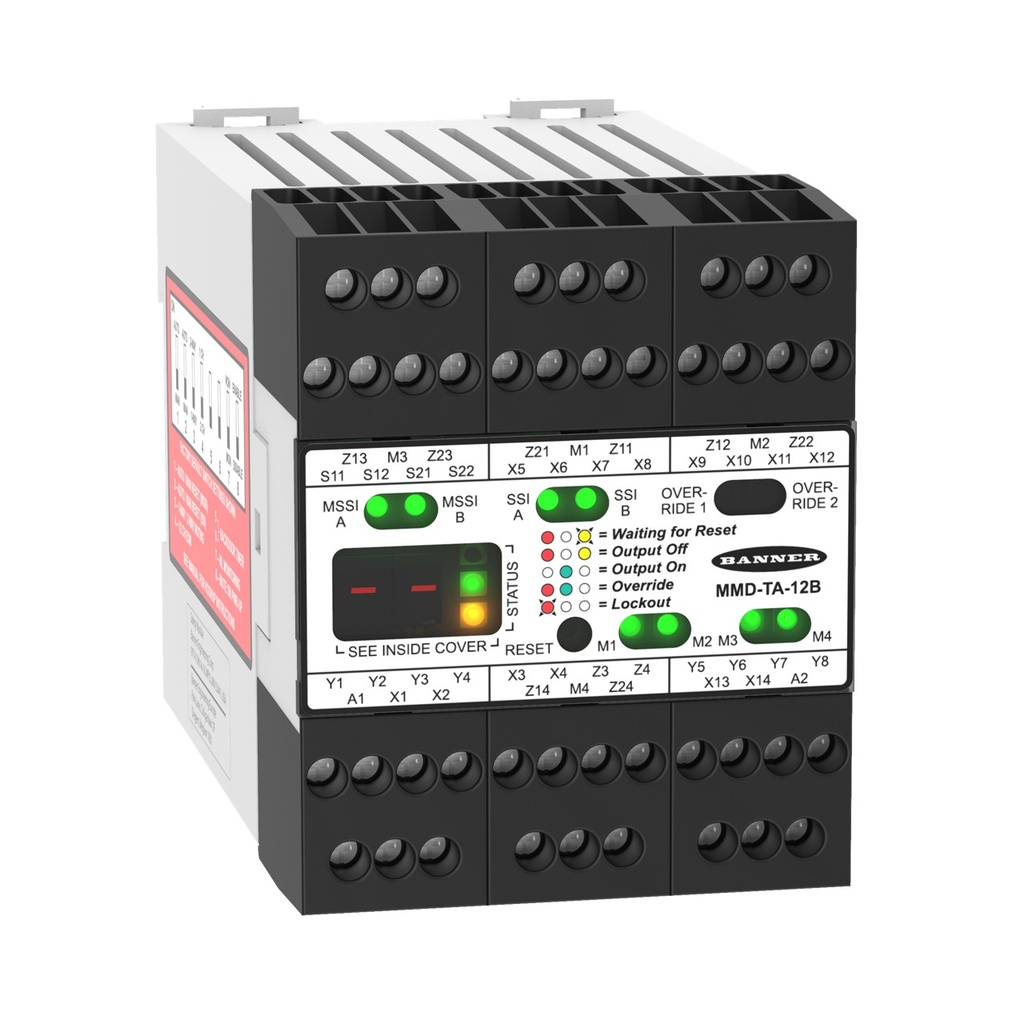

Safety Relay Muting Module (MMD-TA-12B)

https://www.branom.com/web/image/product.template/37515/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Relay Muting Module
  • Supply Voltage: 24 V ac/dc
  • Muteable Safety Input: 1 Dual Channel
  • Non-Muteable Safety Input: 1 Dual Channel
  • Safety Output: 2 PNP, 500 mA
  • Aux Output: 1 PNP, 250 mA (follows OSSDs)
  • Terminal Block: Removable
  • Width: 67.5mm
  • Self-Checking Circuitry, Auto/Manual Reset, EDM, Muting
  • Max Operating Temperature: 50 °C
  • Power Consumption: 0.25 A
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Supply Voltage: 24 VDC +/- 15%
  • Safety Module Type: Muting Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • Non Safe Output Rating: 250 mA
  • Safety Input - Dual Channel (Solid-State): 10-50 mA @ 15-30 VDC
  • SISTEMA: PFHd = 1.2 x 10-9
  • Relative Humidity: 95% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: 2 NC, 1 NC, or 2 PNP
  • Terminal Type: Screw
  • Input Operation: Simultaneous within 3.0 s
  • Number of Safe Inputs: 2
  • Safety Input - Reset: 10-50 mA @ 15-30 VDC
  • Safety Mat: No
  • Input Resistance: 400 Ω max. per channel
  • Response Time: 10 ms (max)
  • Non Safe Output Configuration: 1 PNP
  • Number of Stored Colors: 2
  • Electrical Life: 120,000 @ 1380 VA
  • Feature: E-Stops/Rope Pulls: Yes
  • Feature: Expandable: No
  • Feature: Gate Switch (NC/NC) Input: Yes
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: Yes
  • Feature: Light Curtains/Scanner with EDM Input: Yes
  • Feature: Light Curtains/Scanner without EDM Input: Yes
  • Feature: Motor Speed: No
  • Feature: Muting: Yes
  • Safety Input - Dual Channel (Dry Contact): 10-50 mA @ 15-30 VDC
  • Feature: Safety Mat: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 50 mil

$ 707.00 707.0 USD $ 707.00

$ 707.00

Not Available For Sale
