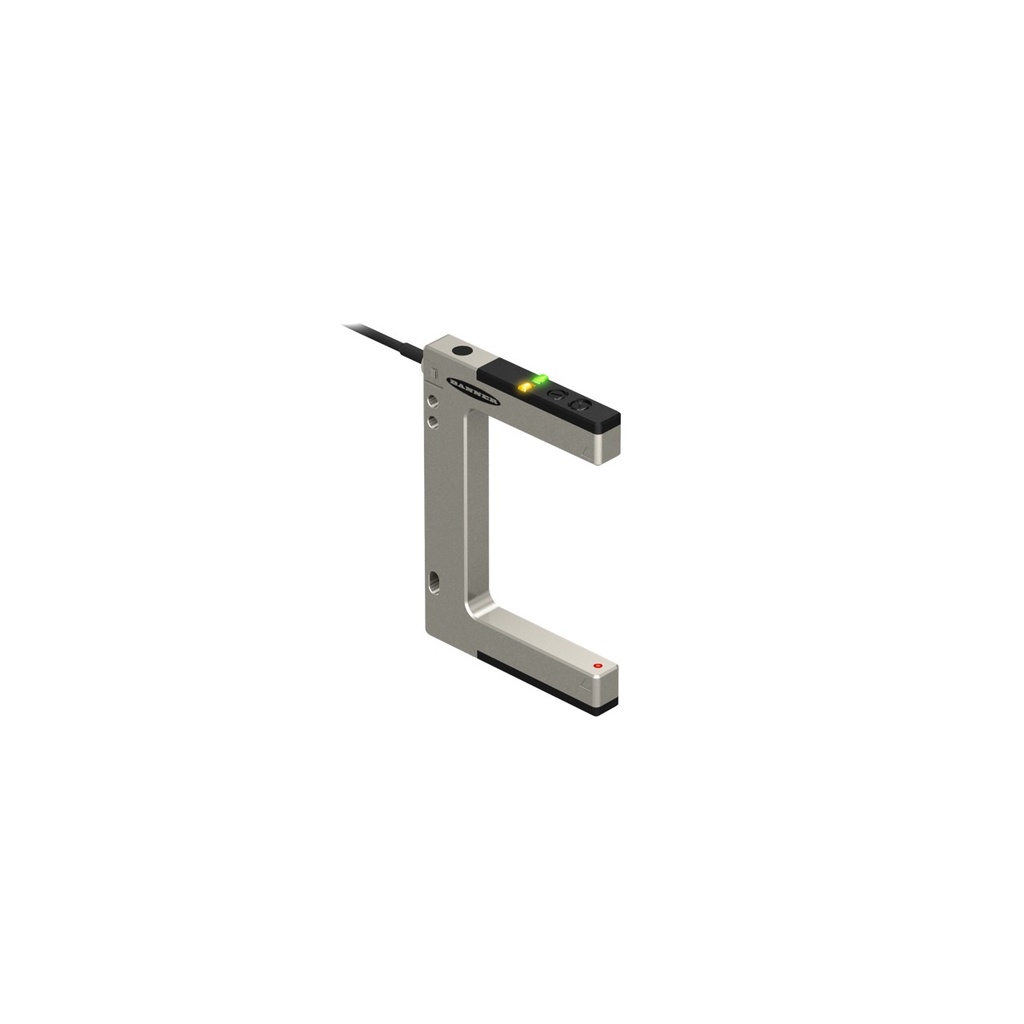

SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor (SLM80B6QPMA)
Features:
- SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor
- Slot Width: 80 mm
- Input 10-30 V dc
- Output: bipolar: 1 NPN 1 PNP
- 6 inch (150 mm) PUR pigtail Euro-style QD
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 60 °C
- Lens Material: Acrylic
- Power Supply: 10-30 VDC
- Delay at Power-Up: 100 ms
- Ingress Protection: IP67
- Repeatability (µs): 95
- Housing Style: Slot
- Sensing Mode (Detailed): Emitter/Receiver Pair
- Max Relative Humidity: 95% @ 55 °C
- Feature: Quick Disconnect: Yes
- Quick Disconnect Type: M12 (Euro)
- Number of Pins: 4
- Output Response Time: 0.5 ms
- Operation: Light/Dark Operate
- Adjustments: Potentiometer
- Feature: Remote Teach: No
- Min Object Detection: 0.75 mm
- Connection: Pigtail PUR QD
- NEMA / UL: NEMA 6
- Cord/Cable Length: 200 mm
- Indicator Type: LED
- Max Sensing Range: 80 mm
- Slot Depth/Array Length (mm): 60.8
