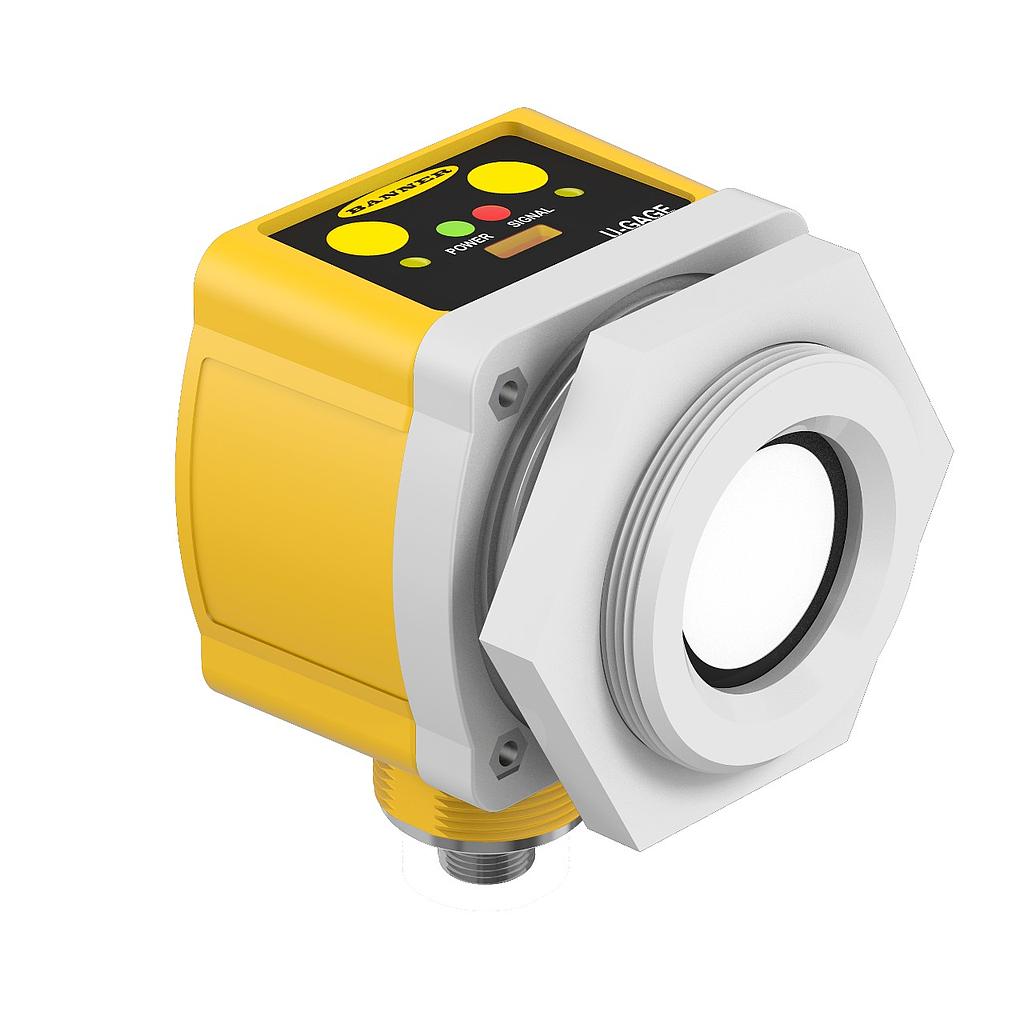

QT50U Chemical Resistant Analog Series: Proximity M (QT50ULBQ6-CRFV)

https://www.branom.com/web/image/product.template/37390/image_1920?unique=c26756c
(0 review)

Features:

  • QT50U Chemical Resistant Analog Series: Proximity M
  • Range: 200 mm
  • 6 m
  • Input: 13-30 V dc
  • Outputs: Analog: 0-10 V or 4-20 mA
  • Euro 5-pin Quick-Disconnect
  • Analog Current Output Rating: 1 kΩ or [(Vcc-5 V)/0.02 A] Ω, whichever is lower
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 100 mA max @ 10 V dc; 40 mA max @ 30 V dc
  • Temperature Warm-up Drift upon Power-up: < 7% of the sensing distance upon power-up.
  • Power Supply: 10-30 VDC
  • Temperature Effect (mm/°C): Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Rectangular w/ Threaded Mount
  • Max Sensing Distance: 6000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Analog Output: 0 to 10 VDC or 4 to 20 mA
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -40 to 90 °C
  • Number of Pins: 5
  • Adjustments: Push Button (s)
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Barrel Diameter: 56
  • Min Response Time: 100 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Analog Resolution/Discrete Repeatability: 1
  • Min Sensing Distance: 200 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 20 mm
  • Max Measurement Range: 1-20 m
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Analog Voltage Output Rating: 500 Ω min. load impedance
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Temp. Warm-up Drift (Notes 1): After 5 min, the apparent switchpoint is < 0.6% of the actual position.
  • Temp. Warm-up Drift (Notes 2): After 25 min, the sensing position will be stable.
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Barrel Thread: M56
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Warm-Up Time: 15 min
  • Rep Rate: 96 ms
  • Ultrasonic Frequency: 75 kHz

$ 1,359.00 1359.0 USD $ 1,359.00

$ 1,359.00

Not Available For Sale

    This combination does not exist.
