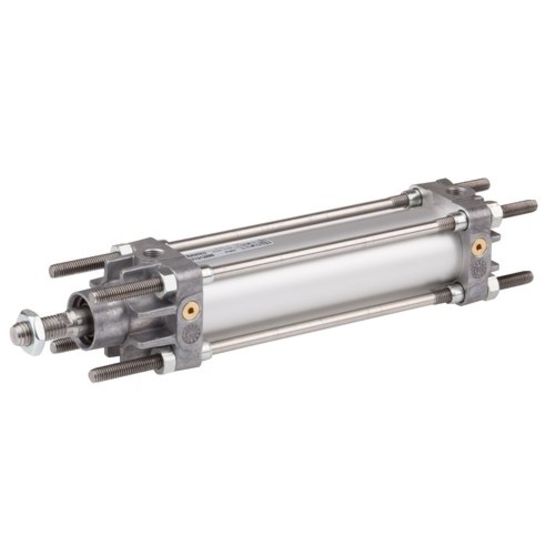

Representative photo. Please check item description for details.
AVENTICS C12P Series Tie Rod Cylinder, 160 mm, G 3/4, Single Piston Rod
The AVENTICS Series C12P is a cylinder Series according the standard CNOMO NFE 49-001 and offer a replacement for existing application.
Features
- Standards: CNOMO / NFE 49-001
- Piston Ø: 160 mm
- Stroke: 250 mm
- Functional principle: Double-acting
- Cushioning: Pneumatic adjustable cushioning
- Magnetic piston: Piston without magnet
- Environmental requirements: Industry standard
- Piston rod: single
- Scraper: Standard industrial scraper
- Pressure for determining piston forces: 6,3 bar
- Retracting piston force: 11875 N
- Extracting piston force: 12667 N
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 80 °C
- Working pressure min.: 2 bar
- Working pressure max: 10 bar
- Ports: G 3/4
- Piston rod thread: M36x2
- Weight 0 mm stroke: 11.6 kg
- Weight +10 mm stroke: 0.352 kg
- Stroke max.: 2600 mm
- Medium: Compressed air
- Min. medium temperature: -20 °C
- Max. medium temperature: 80 °C
- Max. particle size: 50 µm:
