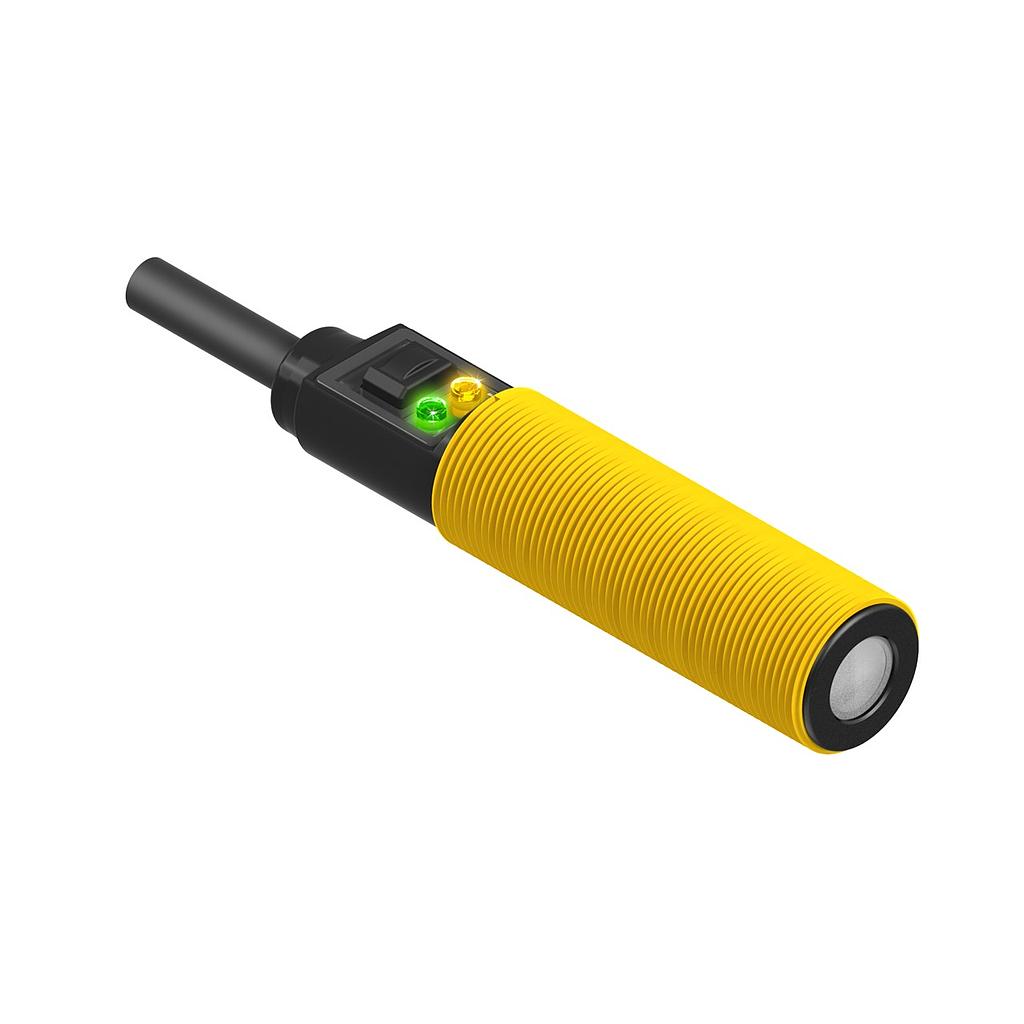

Representative photo. Please check item description for details.

Analog S18U Ultrasonic Modified Output Response (S18UUA-74601)

https://www.branom.com/web/image/product.template/37335/image_1920?unique=c26756c
(0 review)

Features:

  • Analog S18U Ultrasonic Modified Output Response
  • Range: 30 mm to 300 mm
  • Input 10-30 V dc
  • Output: Analog 0-10V Goes to Max with No Target
  • 3 m (9.8 ft) Cable
  • Analog Current Output Rating: 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Power/Current Consumption (exclusive of load): 65 mA max; 40 mA @ 25 V dc
  • Temperature Warm-up Drift upon Power-up: Temp. compensation enabled, < 1.0% of the sensing distance upon power-up.
  • Power Supply: 10-30 VDC
  • Temperature Effect (mm/°C): 0.02% of distance / °C
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Housing Style: Barrel - Straight
  • Max Sensing Distance: 300 mm
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: Washdown Rated: Yes
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: No
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Barrel Diameter: 18
  • Min Response Time: 2.5 ms
  • Min Window Size: 5 mm
  • Discrete (Switched) Outputs: Bipolar (NPN & PNP)
  • Max Measurement Range: 100-500 mm
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Analog Voltage Output Rating: 2.5 kΩ min. load impedance
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Temp. Warm-up Drift (Notes 2): After 60 min, the apparent switchpoint is < 0.3% of the actual position.
  • Connection: Flying Leads
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Ultrasonic Frequency: 300 kHz

$ 797.00 797.0 USD $ 797.00

$ 797.00

Not Available For Sale
