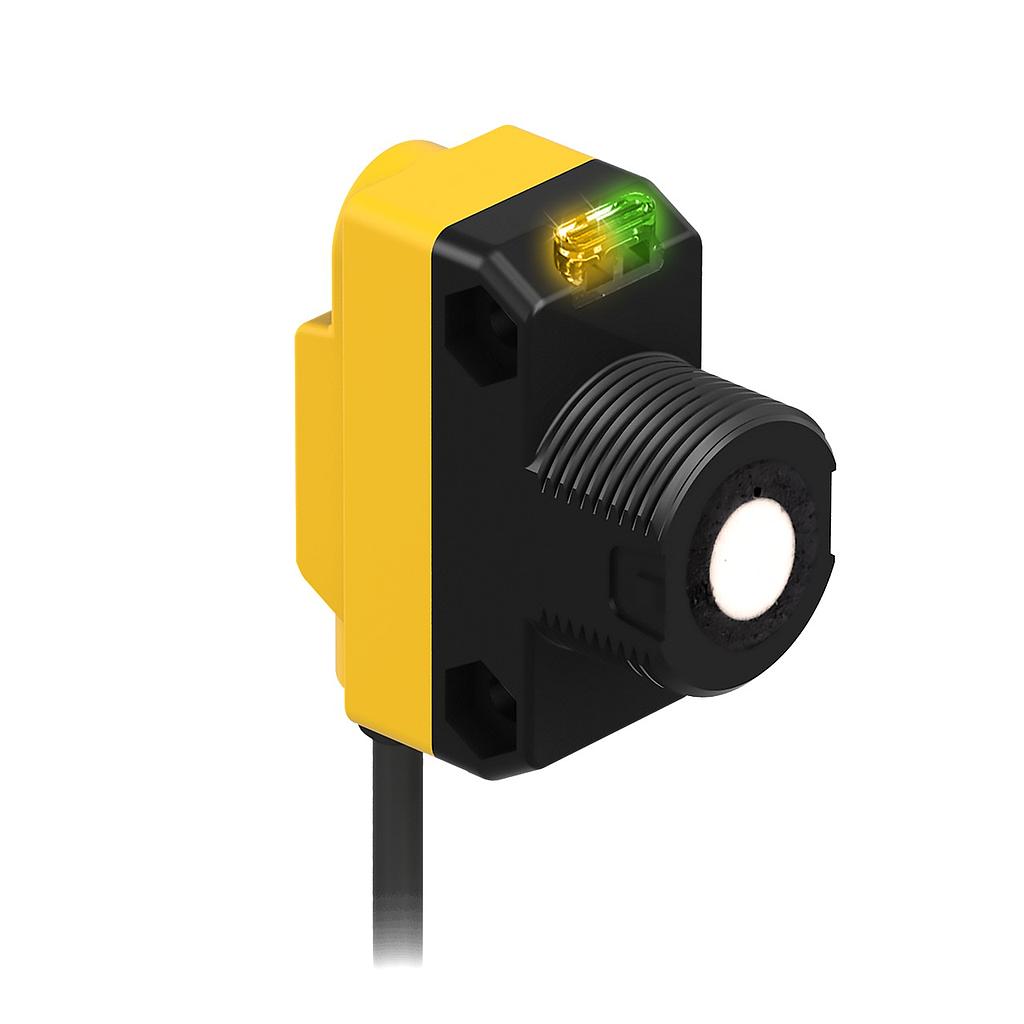

WORLD-BEAM QS18U: Ultrasonic TEACH mode (QS18UPA W/30)

https://www.branom.com/web/image/product.template/37271/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18U: Ultrasonic TEACH mode
  • Range: 50-500 mm
  • Input: 12-30 V dc
  • Output: PNP
  • 9 m (30 ft) Cable
  • Max Off-State Leakage Current (µA): <5 µA (PNP)
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Power/Current Consumption (exclusive of load): 25 mA max
  • Power Supply: 12-30 VDC
  • Temperature Effect (mm/°C): #ERROR!
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Rectangular w/ Threaded Mount
  • Max Sensing Distance: 500 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: No
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Number of Pins: 4
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Barrel Diameter: 18
  • Min Response Time: 15 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Output Saturation Voltage PNP Outputs: < 2.0 V @ 100 mA
  • Analog Resolution/Discrete Repeatability: 0.7
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 50 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 5 mm
  • Discrete (Switched) Outputs: 1 PNP
  • Max Measurement Range: 100-500 mm
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Barrel Thread: M18
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Warm-Up Time: 5 min
  • Rep Rate: 7.5 ms
  • Discrete Output Hysteresis: 1.4 mm
  • Ultrasonic Frequency: 300 kHz

$ 216.00 216.0 USD $ 216.00

$ 216.00

Not Available For Sale
