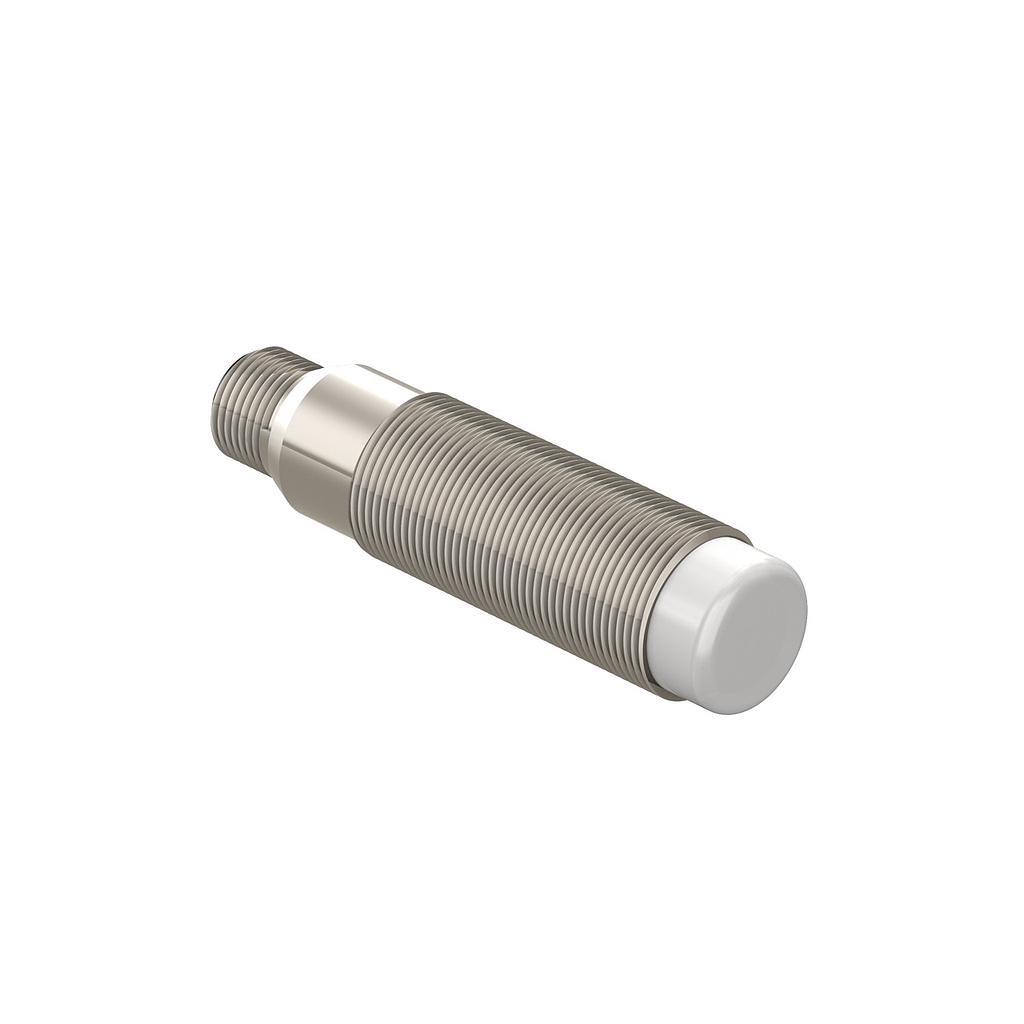

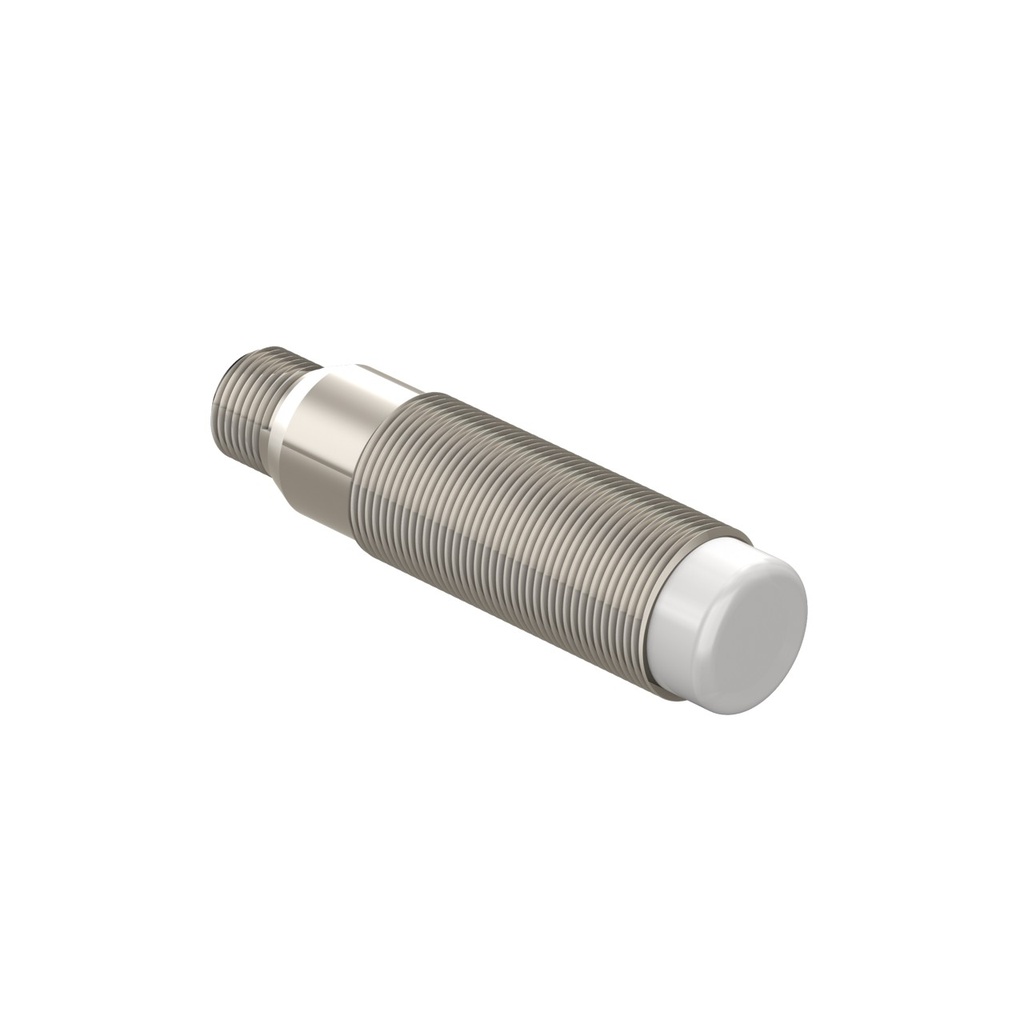

EZ-LIGHT: Nickel-plated Brass Housing M18x1 Thread (M18RGXPQ)

https://www.branom.com/web/image/product.template/36191/image_1920?unique=c26756c
(0 review)

Features:

  • EZ-LIGHT: Nickel-plated Brass Housing M18x1 Thread
  • Use With Binary Sensor: Green/On
  • Yellow/Energized
  • Input: PNP (Sourcing)
  • Encapsulated IP67
  • Quick-Disconnect Connector
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 25 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP67
  • Housing Style: Barrel Mount - Flat Window
  • Housing Material_: Nickel-Plated Brass
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 16.5 x 70.4 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Green
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Red
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 2
  • Product Size (mm): 18 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M18 x 1.0
  • Max Input Response Time (ms): 1 ms
  • Feature: Chemical Resistant: No
  • Connection Type: Integral QD
  • Feature: Photoelectric Sensors: Yes

$ 119.00 119.0 USD $ 119.00

$ 119.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
