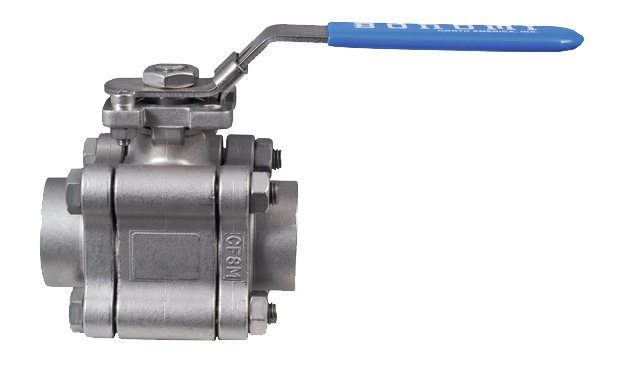

740LL / 741LL / 742LL North America Series Full Port High Performance 3 pc. Stainless Steel Ball Valve with PEEK Seats w/ Locking Lever and ISO 5211 Mounting Pad
740H Bonomi North America Series stainless steel direct mount high pressure, high temperature 3-piece full port ball valve with locking lever.
Features
High pressure to 3600 psi.
Temperature range: +150°F to 500°F.
High temperature to 500°F max.
Direct mounting to ISO 5211/square stem.
PEEK seats.
Standard latch locking handle.
Conforms to ANSI B16.34, ANSI B1.20.1 thread depths, NACE MR0175.
740H Bonomi North America Series stainless steel direct mount high pressure, high temperature 3-piece full port ball valve with locking lever.
Features
High pressure to 3600 psi.
Temperature range: +150°F to 500°F.
High temperature to 500°F max.
Direct mounting to ISO 5211/square stem.
PEEK seats.
Standard latch locking handle.
Conforms to ANSI B16.34, ANSI B1.20.1 thread depths, NACE MR0175.
Specifications
| Model | [740LL] NPT Ends, [741LL] SW Ends, [742LL] BW Ends |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
