AVENTICS EBP Series Ejector, Aluminum, 0.5 mm Brass Nozzle

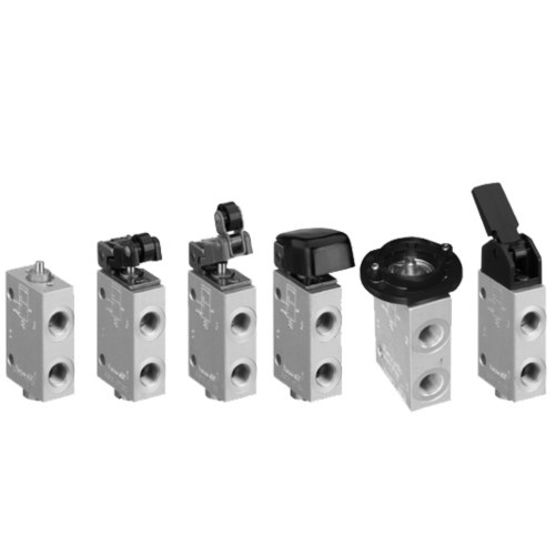

The AVENTICS Series AP offers a wide range of poppet valves with aluminium housing. With many actuation control versions available (roller, lever, pedal, push-button or plunger) the AP Series is the universal solution for automation systems and panel installation.
Features
- Activation: Mechanical
- Nominal flow Qn: 550 l/min
- Compressed air connection output: G 1/4
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Actuating element: Push button
- Type: Poppet valve
- Plate connection: Pipe connection
- Min. ambient temperature: -30 °C
- Max. ambient temperature: 80 °C
- Min. medium temperature: -30 °C
- Max. medium temperature: 80 °C
- Medium: Compressed air
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Max. particle size: 5 µm
- Compressed air connection type: Internal thread
- Compressed air connection input: G 1/4
- Compressed air connection, exhaust: G 1/4
- Weight: 0.52 kg
- Housing material: Aluminum
- Seal material: Acrylonitrile butadiene rubber
- Material actuating control: Aluminum:
