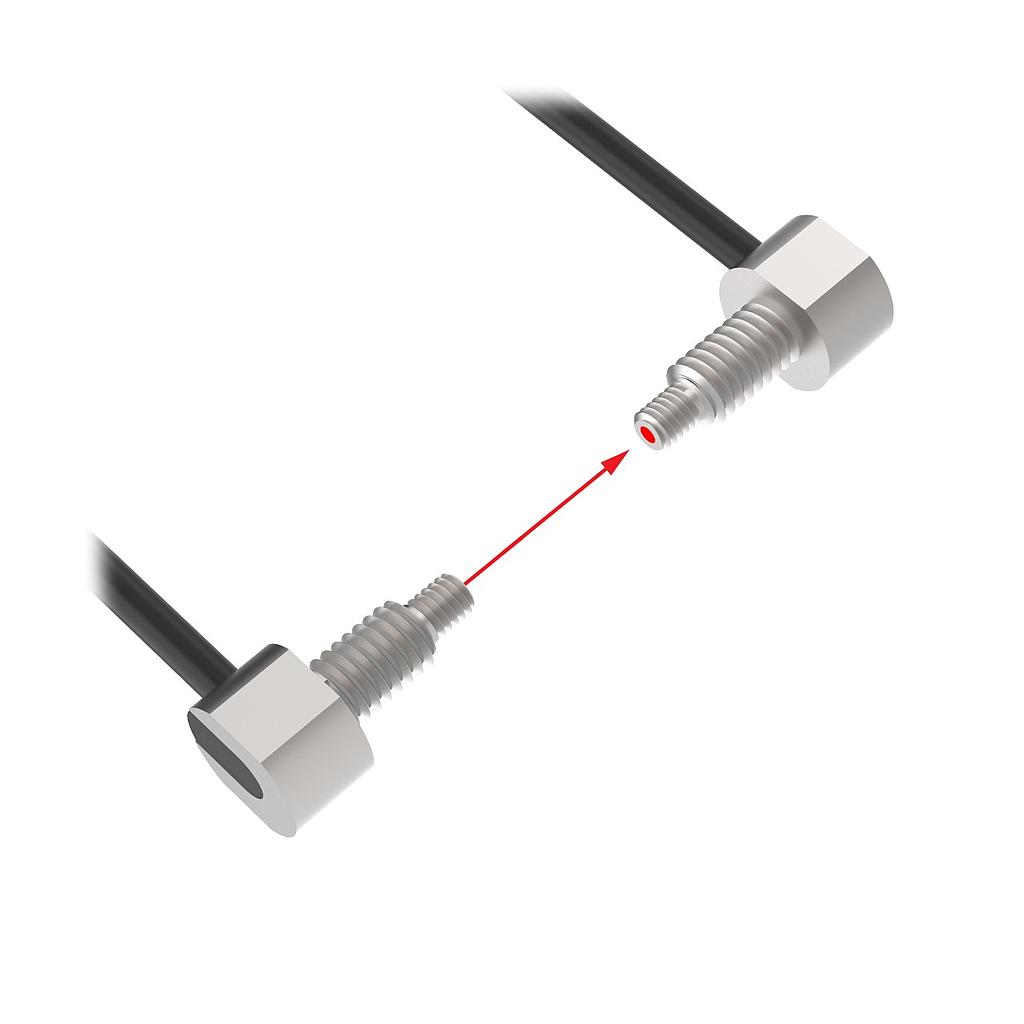

Plastic Fiber, Opposed Mode (PIAT46UHFMTA)

https://www.branom.com/web/image/product.template/35770/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 1 mm
  • Fiber Length 2 m
  • Angle, Thread
  • DuraBend, Free cut
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Angle
  • Tariff Fiber Meters: 4 fbm
  • Measured Max Distance: 391 mm
  • Min Bend Radius: 2 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M2.5
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Free Cut
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: 2 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Thread
  • Sensing End Segment 3: Thread
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 3m to <= 5m
  • Min Hinged Door Size: 2 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 391 mm
  • Max Distance: DF-G3: 3036 mm
  • Max Distance: DF-G2: 633 mm
  • Minimum Bend Radius: 2 mm
