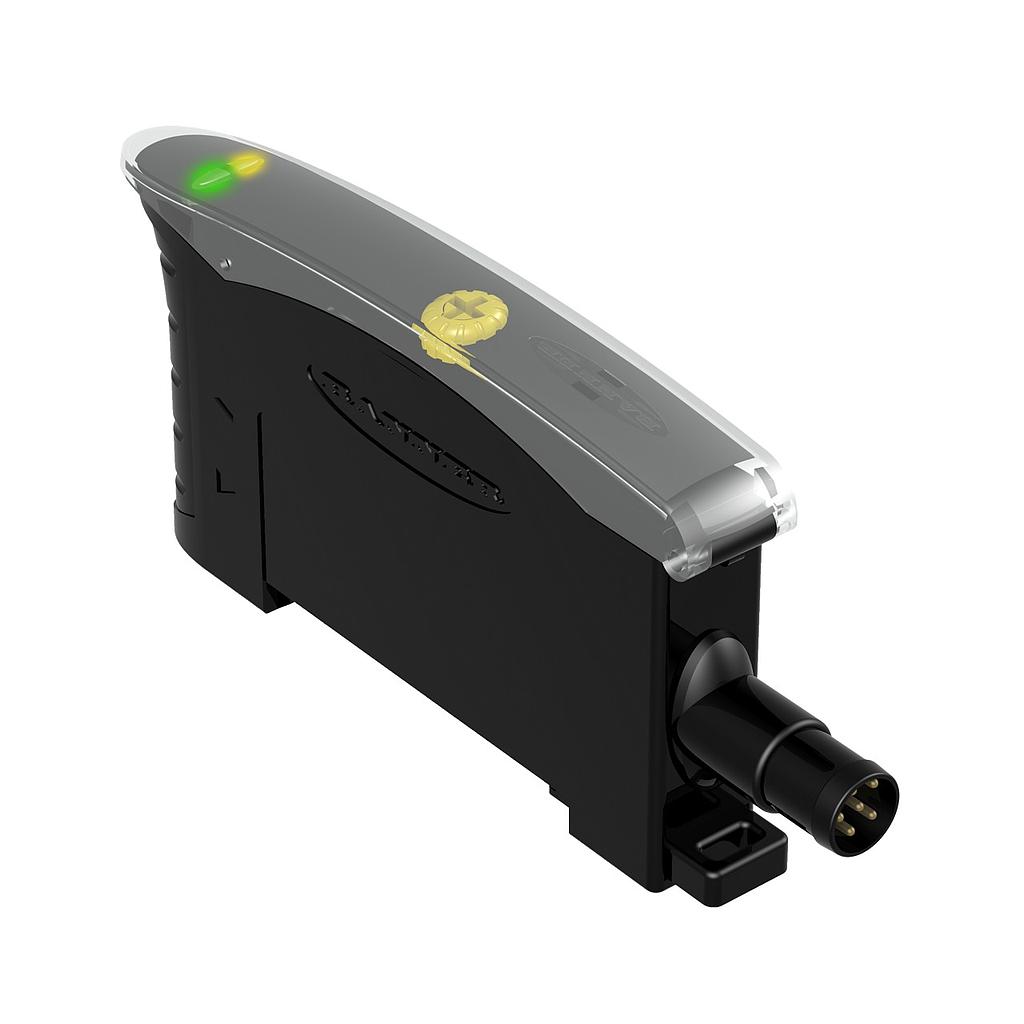

Representative photo. Please check item description for details.

4 PIN PICO RED HI-SPEED (D10AFPYQ)

https://www.branom.com/web/image/product.template/35673/image_1920?unique=c26756c
(0 review)

Features:

  • D10AFPYQ 4 PIN PICO RED HI-SPEED
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 50
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 55 °C
  • Housing Material_: Thermoplastic (TPO)
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8 (Pico)
  • Number of Pins: 4
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): Yes
  • Min Response Time: 0.2 ms
  • Output Type (Specific): Single Discrete
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Integral QD
  • NEMA / UL: NEMA 1
  • Feature: Crosstalk Avoidance: Yes
  • Indicator Type: LED

$ 151.00 151.0 USD $ 151.00
